Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N914UR/TRSIGNAL OR COMPUTER DIODE |
104 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N5615DIODE GEN PURP 200V 1A AXIAL |
853 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/429 | Through Hole | A, Axial | -65°C ~ 175°C |
|
APT60D120SGDIODE GEN PURP 1.2KV 60A D3 |
156 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | Standard | 1200 V | 60A | 2.5 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 400 ns | 250 µA @ 1200 V | - | - | - | Surface Mount | D3PAK | -55°C ~ 175°C |
|
|
1N3600UR/TRSIGNAL OR COMPUTER DIODE |
177 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 75 V | 300mA | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 100 nA @ 50 V | 2.5pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JAN1N5809DIODE GEN PURP 100V 6A AXIAL |
117 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 100 V | 6A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTX1N914URDIODE GEN PURP 75V 200MA DO213AA |
233 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N3070-1DIODE GEN PURP 175V 100MA DO7 |
257 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | - | - | - | - | Through Hole | DO-7 | -65°C ~ 175°C |
|
|
1N3070UR-1/TRSIGNAL OR COMPUTER DIODE |
135 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 175 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
|
JANTX1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
108 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|

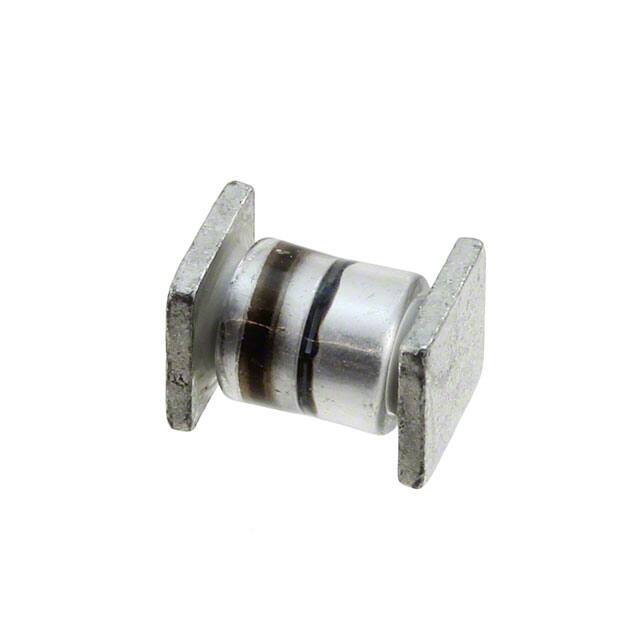

1N5418USDIODE GEN PURP 400V 3A D-5B |
102 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
