Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT15DQ120KGDIODE GP 1.2KV 15A TO220 |
718 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 1200 V | 15A | 3.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 240 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
APT15D60KGDIODE GP 600V 15A TO220 |
88 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | Standard | 600 V | 15A | 1.8 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 80 ns | 250 µA @ 600 V | - | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
MSC010SDA070KDIODE SIL CARB 700V 10A TO220-2 |
55 | - |
|
Datasheet | - | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 10A | 1.5 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | - |
|
JANTX1N6638DIODE GEN PURP 125V 300MA D5B |
80 | - |
|
Datasheet | - | D, Axial | Bulk | Active | Standard | 125 V | 300mA | 1.1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 125 V | - | Military | MIL-PRF-19500/578 | Through Hole | D-5D | -65°C ~ 175°C |
|
JANTX1N5418DIODE GEN PURP 400V 3A AXIAL |
75 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 400 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5550DIODE GEN PURP 200V 5A AXIAL |
83 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5553DIODE GEN PURP 800V 5A AXIAL |
91 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 800 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|

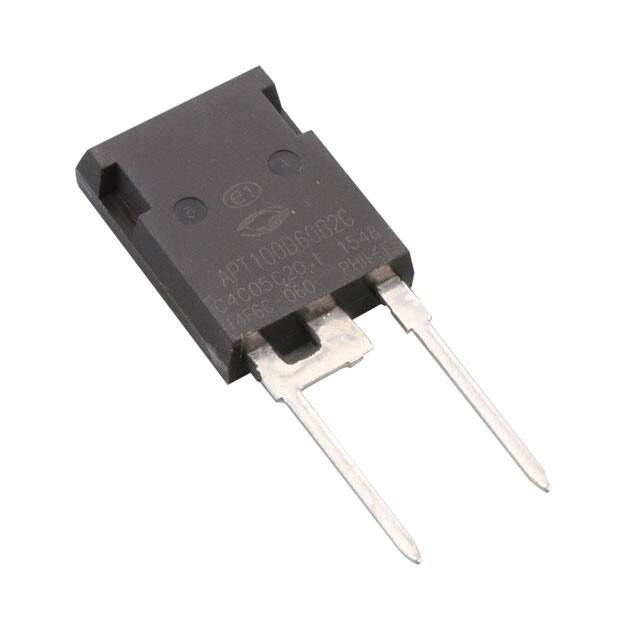

APT100D60B2GDIODE GEN PURP 600V 100A TO247 |
46 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 100A | - | - | - | - | - | - | - | Through Hole | TO-247 | - |
|
MSC020SDA120BDIODE SIL CARB 1.2KV 49A TO247 |
37 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 49A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 1130pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|
|
MSC050SDA070BDIODE SIL CARBIDE 700V 50A TO247 |
59 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 700 V | 50A | 1.5 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247 | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
