Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6621USDIODE GEN PURP 440V 1.2A A-MELF |
38 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 440 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 440 V | 10pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
MSC030SDA120BCTDIODE SIL CARB 1.2KV 65A TO247-3 |
24 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 65A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 141pF @ 400V, 1MHz | - | - | Through Hole | TO-247-3 | -55°C ~ 175°C |
|
UES1306DIODE GEN PURP 400V 3A AXIAL |
45 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 400 V | 3A | 1.25 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 20 µA @ 400 V | - | - | - | Through Hole | B, Axial | -55°C ~ 150°C |
|
|
MSC030SDA170BDIODE SIL CARB 1.7KV 82A TO247 |
44 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 82A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1700 V | 2070pF @ 1V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 175°C |
|

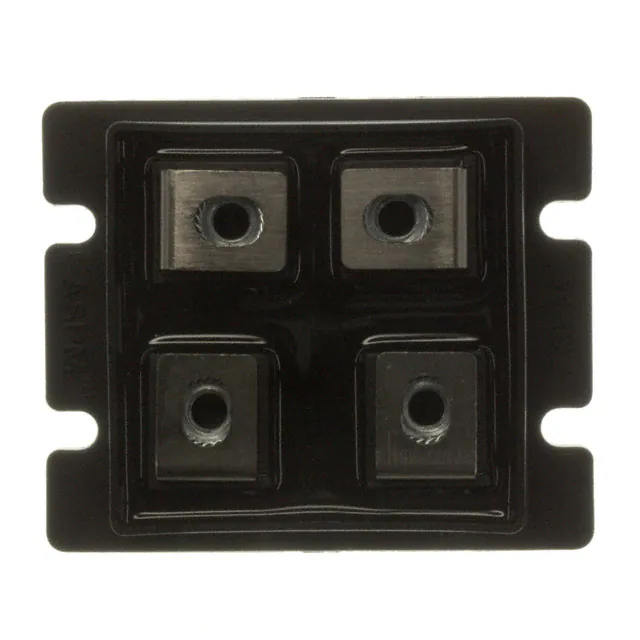

APTDF500U40GDIODE GEN PURP 400V 500A LP4 |
10 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 400 V | 500A | 1.5 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 2.5 mA @ 400 V | - | - | - | Chassis Mount | LP4 | - |
|
APT30D30BGDIODE GP 300V 30A TO247 |
44 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 300 V | 30A | 1.4 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 250 µA @ 300 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
|
|
1N5818-1DIODE SCHOTTKY 30V 1A DO41 |
91 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | Schottky | 30 V | 1A | 600 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 30 V | - | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 150°C |
|

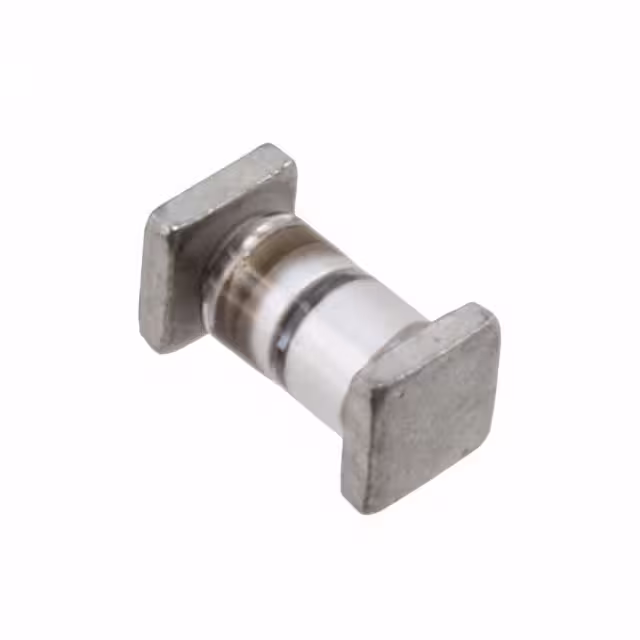

1N5616USDIODE GEN PURP 400V 1A D-5A |
92 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 400 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 400 V | - | - | - | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
1N5553USDIODE GEN PURP 800V 3A B SQ-MELF |
40 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 800 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 800 V | - | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
MSC030SDA120SDIODE SIL CARB 1.2KV 30A D3PAK |
84 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Surface Mount | D3PAK | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
