Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S3480DIODE GEN PURP 800V 45A DO203AB |
10 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 45A | 1.15 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 µA @ 800 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 200°C |
|
JANTX1N3070-1DIODE GEN PURP 175V 100MA DO7 |
3 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Active | Standard | 175 V | 100mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 175 V | - | Military | MIL-PRF-19500/169 | Through Hole | DO-7 | -65°C ~ 175°C |
|

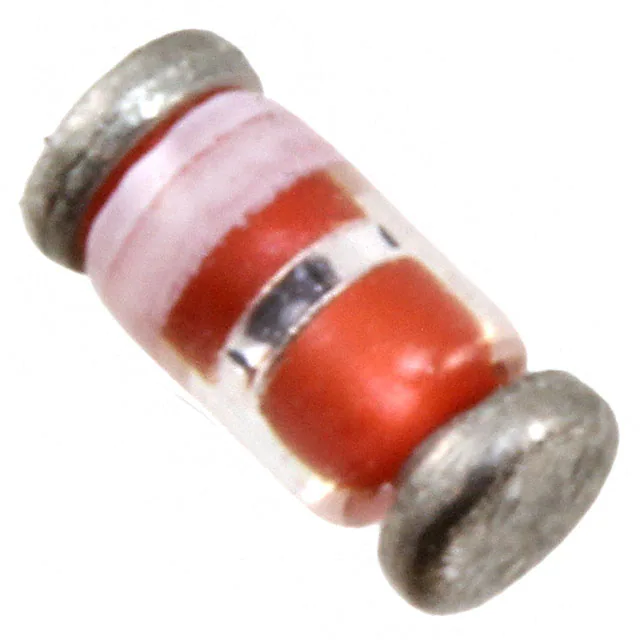

CDS5711UR-1DIODE SCHOTTKY DO-213AA |
23 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JANTX1N6663DIODE GEN PURP 600V 500MA DO35 |
2 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 600 V | 500mA | 1 V @ 400 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 nA @ 600 V | - | Military | MIL-PRF-19500/587 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N6779DIODE GEN PURP 600V 15A TO257 |
17 | - |
|
Datasheet | - | TO-257-3 | Bulk | Active | Standard | 600 V | 15A | 1.6 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 10 µA @ 480 V | 300pF @ 5V, 1MHz | Military | MIL-PRF-19500/647 | Through Hole | TO-257 | 150°C (Max) |
|

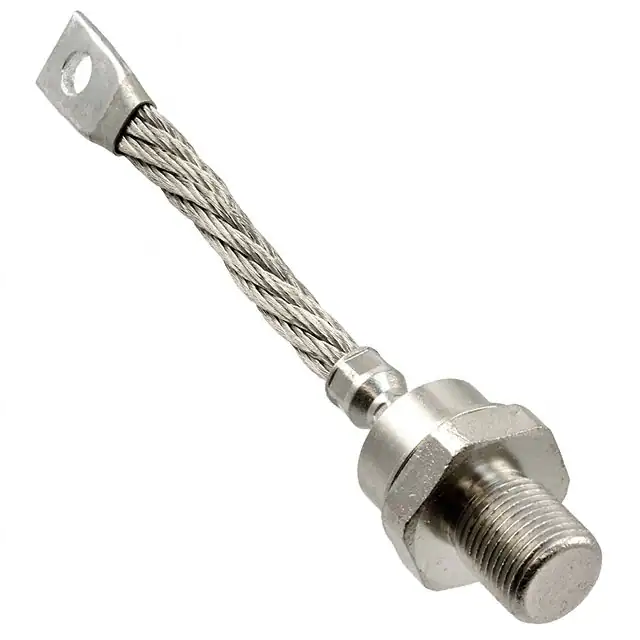

JAN1N3174DIODE GP 1KV 300A DO205AB DO9 |
3 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1000 V | 300A | 1.55 V @ 940 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 1000 V | - | Military | MIL-PRF-19500/211 | Chassis, Stud Mount | DO-205AB (DO-9) | -65°C ~ 200°C |
|
|
JANTX1N4148UR-1DIODE GEN PURP 75V 200MA DO213AA |
4,141 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N5614DIODE GEN PURP 200V 1A AXIAL |
8,128 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 200°C |
|

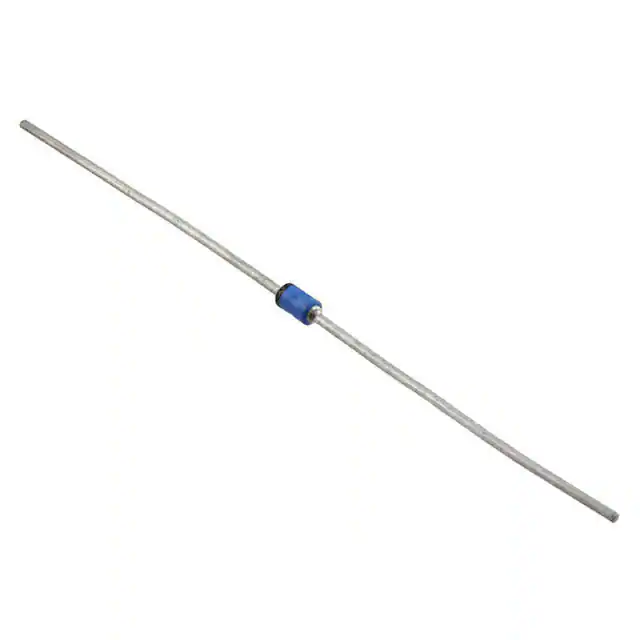

JANTX1N5618DIODE GEN PURP 600V 1A AXIAL |
2 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 600 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 600 V | - | Military | MIL-PRF-19500/427 | Through Hole | A, Axial | -65°C ~ 200°C |
|
|
1N5806DIODE GEN PURP 150V 1A A AXIAL |
6,263 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 150 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
