Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-80-1320PBFDIODE GP 80A TO247 |
7,318 | - |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-S1558DIODE GEN PURP TO214 |
9,448 | - |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VS-C20CP07L-M3DIODE SIL CARB 650V 10A TO220AC |
5,592 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 55 µA @ 650 V | 430pF @ 1V, 1MHz | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|

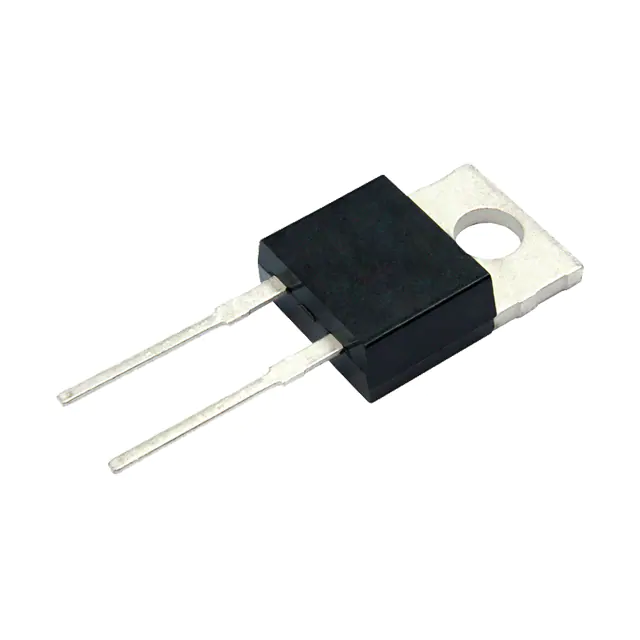

VS-C16CP07L-M3DIODE SIL CARB 650V 16A TO220AC |
6,963 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 16A | 1.7 V @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 85 µA @ 650 V | 320pF @ 1V, 1MHz | - | - | Through Hole | TO-220AC | -55°C ~ 175°C |
|
|
RGF1M-7000HE3_B/IDIODE GEN PURP 1KV 1A DO214BA |
9,825 | - |
|
Datasheet | Superectifier® | DO-214BA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | 8.5pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214BA (GF1) | -65°C ~ 175°C |
|
|
EGF1B-1HE3_B/IDIODE GEN PURP 100V 1A DO214BA |
9,814 | - |
|
Datasheet | Superectifier® | DO-214BA | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 100 V | 15pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214BA (GF1) | -65°C ~ 175°C |
|
|
EGF1D-2HE3_B/HDIODE GEN PURP 200V 1A DO214BA |
9,595 | - |
|
Datasheet | Superectifier® | DO-214BA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 200 V | 15pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214BA (GF1) | -65°C ~ 175°C |
|
|
VFT3080S-E3S/4WDIODE SCHOTTKY 80V 30A ITO220AB |
6,611 | - |
|
Datasheet | - | TO-220-3 Full Pack, Isolated Tab | Tape & Reel (TR) | Obsolete | Schottky | 80 V | 30A | 950 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 80 V | - | - | - | Through Hole | ITO-220AB | -55°C ~ 150°C |
|
|
S2B-001HE3_A/IDIODE GEN PURP 100V 1.5A DO214AA |
3,871 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 100 V | 1.5A | 1.15 V @ 1.5 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 100 V | 16pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) | -55°C ~ 150°C |
|
SB3H100L-5700E3/72DIODE SCHOTTKY |
5,365 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
