Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "SS2P6-01HM3/84A")
|

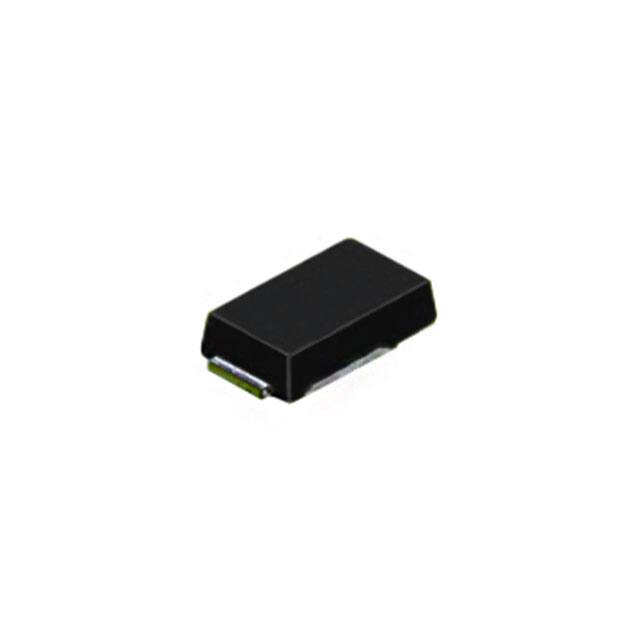

SS2P6-01HM3/84ADIODE SCHOTTKY 60V 2A DO220AA |
4,373 | - |
|
Datasheet | - | DO-220AA | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 2A | 700 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | 80pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) | -55°C ~ 150°C |
|

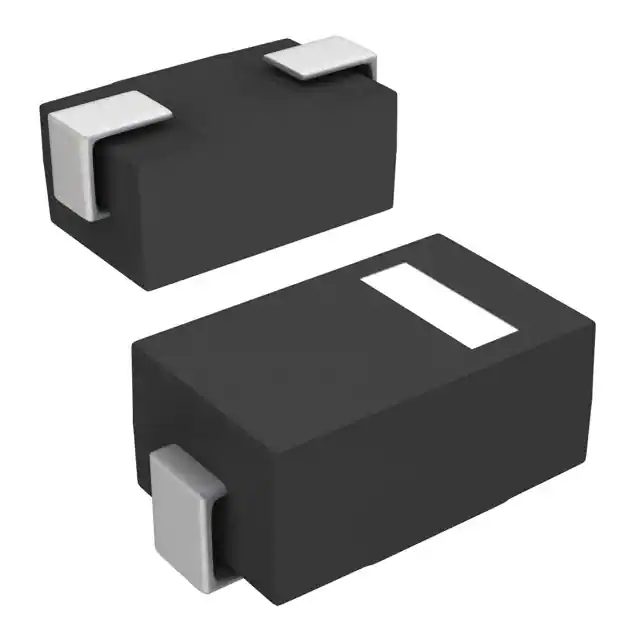

GF1G-9HE3_A/HDIODE GEN PURP 400V 1A DO214BA |
3,772 | - |
|
Datasheet | Superectifier® | DO-214BA | Tape & Reel (TR) | Obsolete | Standard | 400 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 5 µA @ 400 V | 15pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-214BA (GF1) | -65°C ~ 175°C |
|
EGP10FE-E3/54DIODE GEN PURP 300V 1A DO204AL |
3,738 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Standard | 300 V | 1A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 300 V | 15pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 150°C |
|

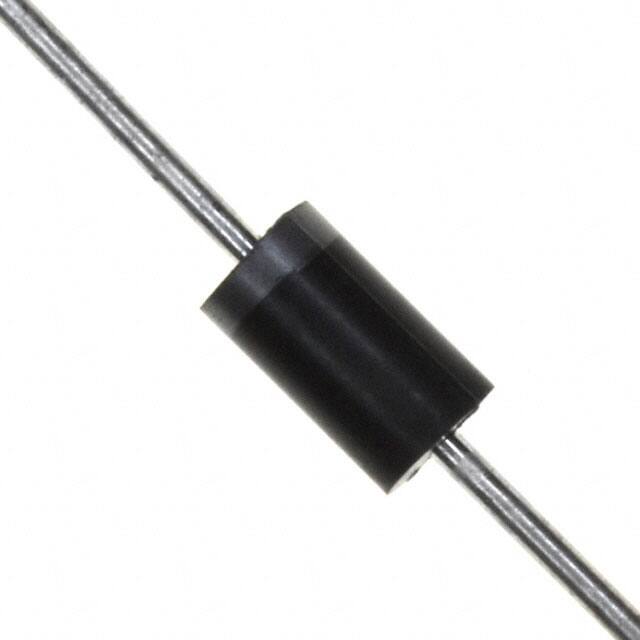

SB360-5300E3/73DIODE SCHOTTKY 60V 3A DO201AD |
5,376 | - |
|
Datasheet | - | DO-201AD, Axial | Tape & Reel (TR) | Obsolete | Schottky | 60 V | 3A | 680 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 60 V | - | - | - | Through Hole | DO-201AD | -65°C ~ 150°C |
|
SL23-7001HE3_A/IDIODE SCHOTTKY 30V 2A DO214AA |
5,665 | - |
|
Datasheet | - | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 2A | 440 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 400 µA @ 30 V | - | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
V15PN50-5700M3/86ADIODE SCHOTTKY 50V 15A TO277A |
2,198 | - |
|
Datasheet | - | TO-277, 3-PowerDFN | Tape & Reel (TR) | Obsolete | Schottky | 50 V | 15A | 560 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 50 V | - | - | - | Surface Mount | TO-277A (SMPC) | -40°C ~ 150°C |
|
|
EGP10AE-E3/54DIODE GEN PURP 50V 1A DO204AL |
7,996 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Obsolete | Standard | 50 V | 1A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 5 µA @ 50 V | 22pF @ 4V, 1MHz | - | - | Through Hole | DO-204AL (DO-41) | -65°C ~ 150°C |
~~2.jpg "SS3P4-6002M3/84A")
|
SS3P4-6002M3/84ADIODE SCHOTTKY 40V 3A DO220AA |
7,386 | - |
|
Datasheet | - | DO-220AA | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 3A | 600 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 40 V | 130pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) | -55°C ~ 150°C |
|
VS-20ETS12M-S1DIODE STD REC 1200V TO220AC-2 |
6,915 | - |
|
Datasheet | * | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VS-S1844DIODE |
9,293 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
