Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS1N6674DIODE GEN PURP |
3,298 | - |
|
Datasheet | - | TO-254-3, TO-254AA | Bulk | Active | Standard | 500 V | 15A | 1.55 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 50 µA @ 400 V | 150pF @ 10V, 1MHz | Military | MIL-PRF-19500/617 | Through Hole | TO-254 | - |
|
|
JAN1N6676T1RECTIFIER |
5,462 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/538 | - | - | - |
|
|
JANTX1N6676T1RECTIFIER |
6,392 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | Military | MIL-PRF-19500/610 | - | - | - |
|

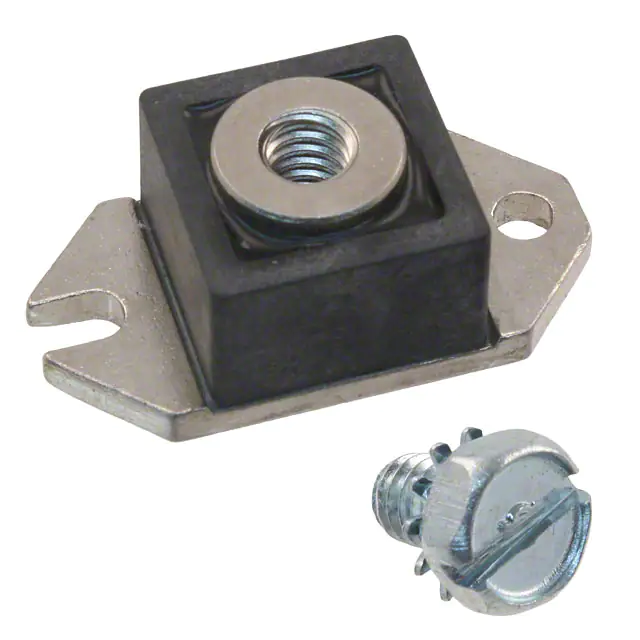

HS12045DIODE SCHOTTKY 45V 120A HALF-PAK |
5,767 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 120A | 550 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | 5500pF @ 5V, 1MHz | - | - | Chassis Mount | HALF-PAK | - |
|
HS243100DIODE SCHOTTKY 100V 240A HALFPAK |
2,414 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Schottky | 100 V | 240A | 860 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | 6400pF @ 5V, 1MHz | - | - | Chassis Mount | HALF-PAK | - |
|
HU10260DIODE GP 600V 100A HALF-PAK |
2,613 | - |
|
Datasheet | - | HALF-PAK | Bulk | Obsolete | Standard | 600 V | 100A | 1.35 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 50 µA @ 600 V | 275pF @ 10V, 1Mhz | - | - | Chassis Mount | HALF-PAK | - |
|
SDM30004DIODE GEN PURP 400V 300A MODULE |
8,753 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Standard | 400 V | 300A | 1.1 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 75 µA @ 400 V | - | - | - | Chassis Mount | Module | - |
|
APT30SCD120SDIODE SIL CARB 1.2KV 99A D3PAK |
7,169 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 99A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 600 µA @ 1200 V | 2100pF @ 0V, 1MHz | - | - | Surface Mount | D3PAK | -55°C ~ 150°C |
|
APT30SCD120BDIODE SIL CARB 1.2KV 99A TO247 |
3,058 | - |
|
Datasheet | - | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 99A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 600 µA @ 1200 V | 2100pF @ 0V, 1MHz | - | - | Through Hole | TO-247 | -55°C ~ 150°C |
|
|
APT20SCD120SDIODE SIL CARB 1.2KV 68A D3PAK |
7,784 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 68A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 1200 V | 1135pF @ 0V, 1MHz | - | - | Surface Mount | D3PAK | -55°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
