Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6629DIODE GEN PURP 880V 1.4A AXIAL |
9,351 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 880 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 880 V | 40pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 150°C |
|
JANTXV1N6621UDIODE GEN PURP 400V 1.2A D-5A |
6,902 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 400 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 400 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTXV1N6623UDIODE GEN PURP 800V 1A D-5A |
4,658 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 800 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 800 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTXV1N6622UDIODE GEN PURP 600V 1.2A D-5A |
9,246 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 600 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 600 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JANTXV1N6624UDIODE GEN PURP 900V 1A D-5A |
2,940 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 900 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 900 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|

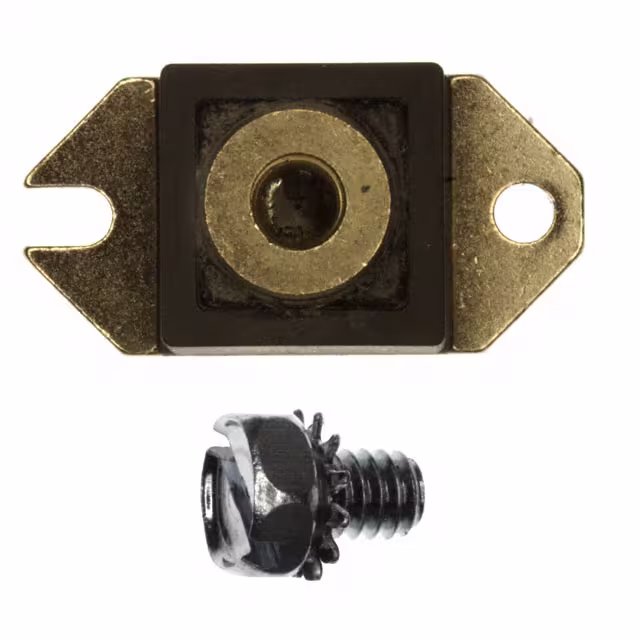

HS24515E3DIODE SCHOTTKY 15V 240A HALF-PAK |
8,047 | - |
|
Datasheet | - | HALF-PAK | Tube | Obsolete | Schottky | 15 V | 240A | 370 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 mA @ 15 V | 21700pF @ 5V, 1MHz | - | - | Chassis Mount | HALF-PAK | - |
|
|
JANTXV1N6620UDIODE GEN PURP 200V 1.2A D-5A |
3,057 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
JAN1N6628UDIODE GEN PURP 600V 1.75A D-5B |
9,997 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 600 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JAN1N6630UDIODE GEN PURP 900V 1.4A D-5B |
6,375 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 900 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 900 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JAN1N6631UDIODE GEN PURP 1KV 1.4A D-5B |
5,161 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | Standard | 1000 V | 1.4A | 1.6 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1000 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
