Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRF03(TE85L,Q,M)DIODE GEN PURP 600V 700MA S-FLAT |
5,154 | - |
|
Datasheet | - | SOD-123F | Tape & Reel (TR) | Obsolete | Standard | 600 V | 700mA | 2 V @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | 100 ns | 50 µA @ 600 V | - | - | - | Surface Mount | S-FLAT (1.6x3.5) | -40°C ~ 150°C |
|
U1GWJ49(TE12L,F)DIODE SCHOTTKY 40V 1A PW-MINI |
8,245 | - |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 550 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | - | - | - | Surface Mount | PW-MINI | -40°C ~ 125°C |
|
DSF07S30U(TPH3,F)DIODE SCHOTTKY 30V 700MA USC |
7,763 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 700mA | 450 mV @ 700 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 50 µA @ 30 V | 170pF @ 0V, 1MHz | - | - | Surface Mount | USC | 125°C (Max) |
|
|
DSF05S30U(TPH3,F)DIODE SCHOTTKY 30V 500MA USC |
4,079 | - |
|
Datasheet | - | SC-76, SOD-323 | Tape & Reel (TR) | Obsolete | Schottky | 30 V | 500mA | 450 mV @ 500 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | - | - | - | - | Surface Mount | USC | 125°C (Max) |
|
CMH05A(TE12L,Q,M)DIODE GEN PURP 400V 1A M-FLAT |
6,518 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Obsolete | Standard | 400 V | 1A | 1.8 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 400 V | - | - | - | Surface Mount | M-FLAT (2.4x3.8) | -40°C ~ 150°C |

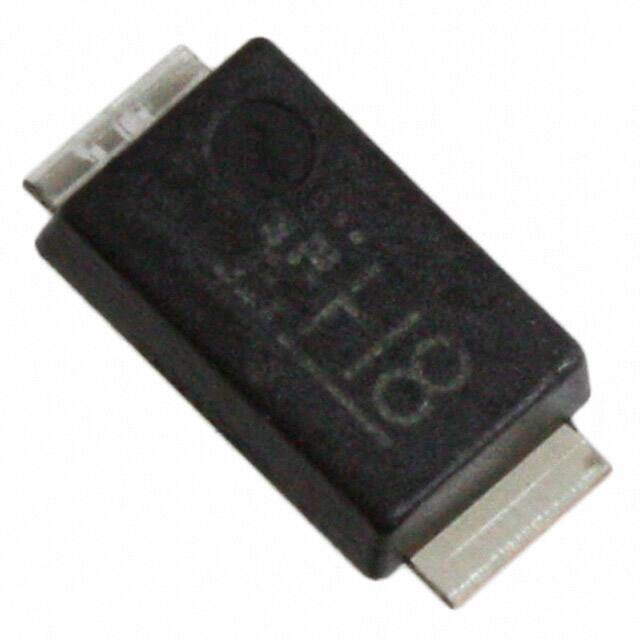

.JPG "CMH08A(TE12L,Q,M)")
|
CMH08A(TE12L,Q,M)DIODE GEN PURP 400V 2A M-FLAT |
4,353 | - |
|
Datasheet | - | SOD-128 | Tape & Reel (TR) | Obsolete | Standard | 400 V | 2A | 1.8 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 10 µA @ 400 V | - | - | - | Surface Mount | M-FLAT (2.4x3.8) | -40°C ~ 150°C |
|
TRS6E65C,S1AQDIODE SIL CARB 650V 6A TO220-2L |
5,245 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 6A | 1.7 V @ 6 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 650 V | 35pF @ 650V, 1MHz | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
TRS12E65C,S1QDIODE SIL CARB 650V 12A TO220-2L |
3,177 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 12A | 1.7 V @ 12 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 170 V | 65pF @ 650V, 1MHz | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
TRS10E65C,S1QDIODE SIL CARB 650V 10A TO220-2L |
4,224 | - |
|
Datasheet | - | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 650 V | - | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
1SS193S,LF(DDIODE GEN PURP 80V 100MA S-MINI |
5,886 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 3pF @ 0V, 1MHz | - | - | Surface Mount | S-Mini | 125°C (Max) |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
