Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1200DDIODE GEN PURP 200V 12A P600 |
1,000 | - |
|
Datasheet | - | P600, Axial | Cut Tape (CT) | Active | Standard | 200 V | 12A | 950 mV @ 12 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 200 V | - | - | - | Through Hole | P-600 | -50°C ~ 150°C |
|
|
PX1500ADIODE GEN PURP 50V 15A P600 |
990 | - |
|
Datasheet | - | P600, Axial | Cut Tape (CT) | Active | Standard | 50 V | 15A | 1 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 50 V | - | - | - | Through Hole | P-600 | -50°C ~ 175°C |
|
P2500KDIODE GEN PURP 800V 25A P600 |
1,000 | - |
|
Datasheet | - | P600, Axial | Cut Tape (CT) | Active | Standard | 800 V | 25A | 1.1 V @ 25 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 10 µA @ 800 V | - | - | - | Through Hole | P-600 | -50°C ~ 175°C |
|

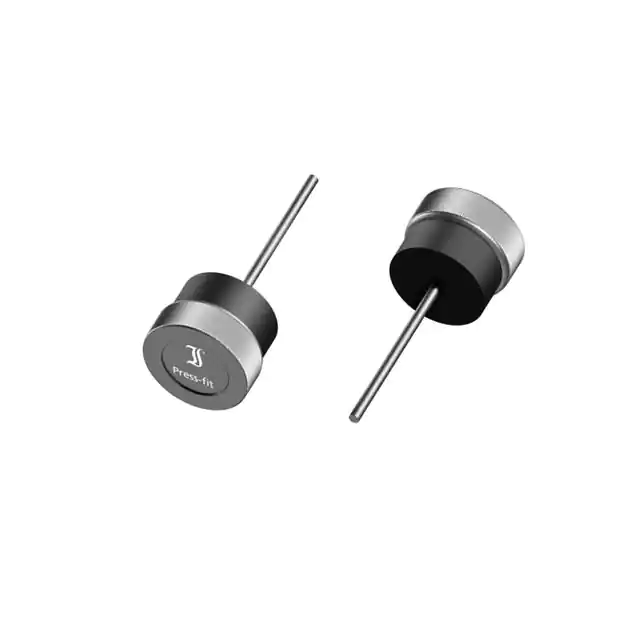

BYP60K2DIODE GEN PURP 200V 60A DO208 |
300 | - |
|
Datasheet | - | DO-208AA | Cut Tape (CT) | Active | Standard | 200 V | 60A | 1.1 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 100 µA @ 200 V | - | - | - | Through Hole | DO-208 | -50°C ~ 200°C |
|
1N4005DIODE GEN PURP 600V 1A DO204AC |
4,381 | - |
|
Datasheet | - | DO-204AC, DO-41, Axial | Cut Tape (CT) | Active | Standard | 600 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 600 V | - | - | - | Through Hole | DO-204AC (DO-41) | -50°C ~ 175°C |
|
BAT54WDIODE SCHOTTKY 30V 0.2A SOT323 |
8,945 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Active | Schottky | 30 V | 200mA | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 3 µA @ 30 V | 10pF @ 0V, 1MHz | - | - | Surface Mount | SOT-323 | -55°C ~ 150°C |
|
1N5401DIODE GEN PURP 100V 3A DO201 |
8,588 | - |
|
Datasheet | - | DO-201AA, DO-27, Axial | Cut Tape (CT) | Active | Standard | 100 V | 3A | 1.2 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 1.5 µs | 5 µA @ 100 V | - | - | - | Through Hole | DO-201 | -50°C ~ 175°C |
|
SK86DIODE SCHOTTKY 60V 8A SMC |
6,015 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 60 V | 8A | 700 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 60 V | - | - | - | Surface Mount | DO-214AB (SMC) | -50°C ~ 150°C |
|
FR1MDIODE GEN PURP 1000V 1A SMA |
50 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 1000 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 5 µA @ 1000 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
|
|
FR1DDIODE GEN PURP 200V 1A SMA |
5,185 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | Standard | 200 V | 1A | 1.3 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 µA @ 200 V | - | - | - | Surface Mount | DO-214AC (SMA) | -50°C ~ 150°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
