Resonators
Browse available Resonators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSTNE16M0VH3C000R0CERAMIC RES 16.0000MHZ 15PF SMD |
89,796 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.13% | ±0.07% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE12M0G550000R0CERAMIC RES 12.0000MHZ 33PF SMD |
65,324 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE8M00G550000R0CERAMIC RES 8.0000MHZ 33PF SMD |
40,576 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE8M00G55A000R0CERAMIC RES 8.0000MHZ 33PF SMD |
25,033 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE10M0G550000R0CERAMIC RES 10.0000MHZ 33PF SMD |
16,362 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE8M00G55Z000R0CERAMIC RES 8.0000MHZ 33PF SMD |
68,702 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTNE16M0V530000R0CERAMIC RES 16.0000MHZ 15PF SMD |
62,295 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE8M00GH5L000R0CERAMIC RES 8.0000MHZ 33PF SMD |
21,050 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.11% | ±0.07% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
|
CSTCR4M00G55B-R0CERAMIC RES 4.0000MHZ 39PF SMD |
9,192 | - |
|
Datasheet | CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.15% | ±0.5% | Built in Capacitor | 39 pF | - | -40°C ~ 125°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.19mm) |
|
|
CSTCR4M00G53-R0CERAMIC RES 4.0000MHZ 15PF SMD |
28,195 | - |
|
Datasheet | CERALOCK® CSTCR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 60 Ohms | -20°C ~ 80°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.19mm) |
|
|
CSTNE16M0V53C000R0CERAMIC RES 16.0000MHZ 15PF SMD |
26,500 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.15% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
ECS-CTP-8.00-30-TRCERAMIC RES 8.00MHZ 30PF SMD |
16,443 | - |
|
Datasheet | ECS-CTP | 3-SMD, No Lead | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CSTNE8M00GH5C000R0CERAMIC RES 8.0000MHZ 33PF SMD |
121,444 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.13% | ±0.07% | Built in Capacitor | 33 pF | 40 Ohms | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
AWSCR-8.00CPLA-C15-T4CERAMIC RES 8.0000MHZ 15PF SMD |
108,198 | - |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
CSTNR4M00GH5L000R0CERAMIC RES 4.0000MHZ 39PF SMD |
55,665 | - |
|
Datasheet | CERALOCK® CSTNR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4 MHz | ±0.11% | ±0.07% | Built in Capacitor | 39 pF | 60 Ohms | -20°C ~ 85°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CSTNE12M0GH5L000R0CERAMIC RES 12.0000MHZ 33PF SMD |
25,679 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.11% | ±0.07% | Built in Capacitor | 33 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.032" (0.80mm) |
|
AWSCR-8.00CV-TCERAMIC RES 8.0000MHZ 22PF SMD |
145,350 | - |
|
Datasheet | AWSCR-CV | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8 MHz | ±0.4% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.039" (1.00mm) |
|

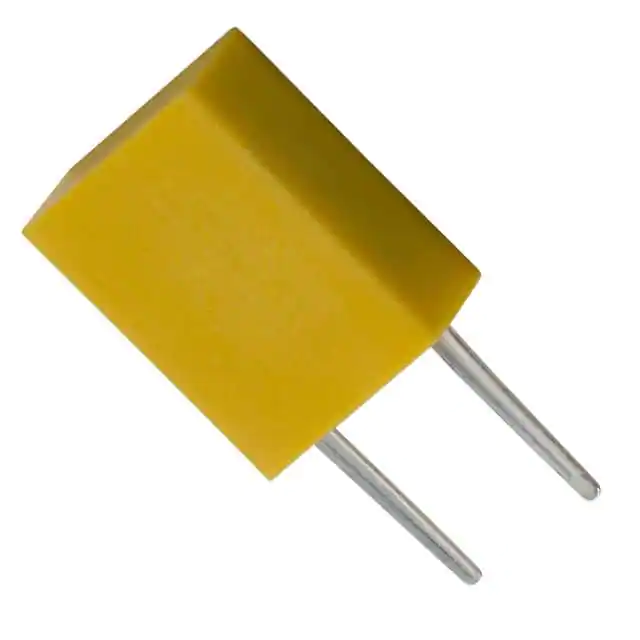

ZTB455ECERAMIC RES 455.0000KHZ T/H |
51,848 | - |
|
Datasheet | ZTB | Radial, Box - 2 Lead, 5.00mm Pitch | Bulk | Not For New Designs | Ceramic | 455 kHz | ±0.3% | ±2kHz | - | - | - | -20°C ~ 80°C | Through Hole | 0.276" L x 0.138" W (7.00mm x 3.50mm) | 0.354" (9.00mm) |
|
CSTLS8M00G56-A0CERAMIC RES 8.0000MHZ 47PF T/H |
2,711 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 8 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 47 pF | 25 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS8M00G53-B0CERAMIC RES 8.0000MHZ 15PF T/H |
10,580 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 25 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
Resonators FAQ
Common questions about selecting, comparing and sourcing Resonators components through Winsun (HK) Electronics.
What should I check when selecting Resonators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Resonators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Resonators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Resonators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
