Resonators
Use the filters and product table below to compare Resonators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

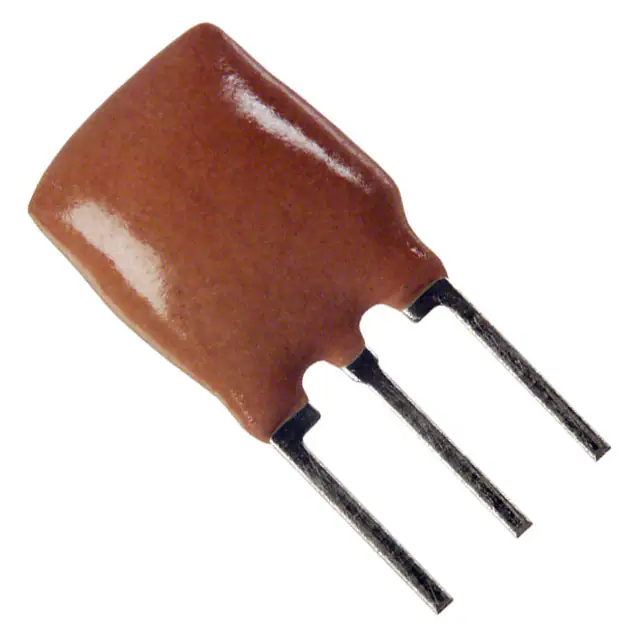

AWCR-10.00MDCERAMIC RES 10.0000MHZ 30PF T/H |
3,034 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 10 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
|
AWCR-12.00MDCERAMIC RES 12.0000MHZ 30PF T/H |
6,810 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 12 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
|
AWCR-8.00MDCERAMIC RES 8.0000MHZ 30PF T/H |
6,947 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
HWZT-20.00MDCERAMIC RES 20.0000MHZ T/H |
4,307 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Obsolete | Ceramic | 20 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
HWZT-4.00MDCERAMIC RES 4.0000MHZ T/H |
6,696 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.217" (5.50mm) |
|
AWSCR-3.86CPLB-C15-T4CER RES 3.58MHZ 33PF SMD |
9,429 | - |
|
Datasheet | AWSCR-CPLB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 3.86 MHz | ±0.4% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.067" (1.70mm) |
|
|
AWSCR-2.00CPLA-C47-T4CER RES 2MHZ 47PF SMD |
4,138 | - |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 2 MHz | ±0.3% | ±0.5% | Built in Capacitor | 47 pF | 100 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
AWSCR-12.00CPLA-C10-T4CER RES 12MHZ 10PF SMD |
3,099 | - |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.067" (1.70mm) |
|
AWSZT-16.00MXD-TCERAMIC RES 16.0000MHZ SMD |
9,992 | - |
|
Datasheet | AWSZT-MXD | 1916 (4741 Metric) | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -20°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | 0.055" (1.40mm) |
|
|
AWSCR-10.00CPLA-C47-T4CER RES 10MHZ 47PF SMD |
4,054 | - |
|
Datasheet | AWSCR-CPLA | 3-SMD, No Lead | Tape & Reel (TR) | Active | Ceramic | 10 MHz | ±0.2% | ±0.5% | Built in Capacitor | 47 pF | 30 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.067" (1.70mm) |
Resonators FAQ
Common questions about filtering, comparing and sourcing Resonators components.
How can I narrow the Resonators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Resonators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
