Resonators
Use the filters and product table below to compare Resonators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCR-3.58MDCERAMIC RES 3.5800MHZ 30PF T/H |
6,838 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
|
AWCR-4.00MDCERAMIC RES 4.0000MHZ 30PF T/H |
4,175 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
|
AWCR-6.00MDCERAMIC RES 6.0000MHZ 30PF T/H |
6,364 | - |
|
Datasheet | AWCR | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 6 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | 30 Ohms | -25°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.315" (8.00mm) |
|
AWSCR-4.00MGD-TCERAMIC RES 4.0000MHZ 22PF SMD |
9,296 | - |
|
Datasheet | AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
|
AWSCR-8.00MGD-TCERAMIC RES 8.0000MHZ 22PF SMD |
9,388 | - |
|
Datasheet | AWSCR-MGD | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 8 MHz | ±0.3% | ±0.5% | Built in Capacitor | 22 pF | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
AWSZT-4.00MGD-TCERAMIC RES 4.0000MHZ SMD |
9,050 | - |
|
Datasheet | AWSZT-MGD | 2913 (7434 Metric) | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -25°C ~ 85°C | Surface Mount | 0.291" L x 0.134" W (7.40mm x 3.40mm) | 0.083" (2.10mm) |
|
HWZT-10.00MDCERAMIC RES 10.0000MHZ T/H |
7,089 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Active | Ceramic | 10 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|

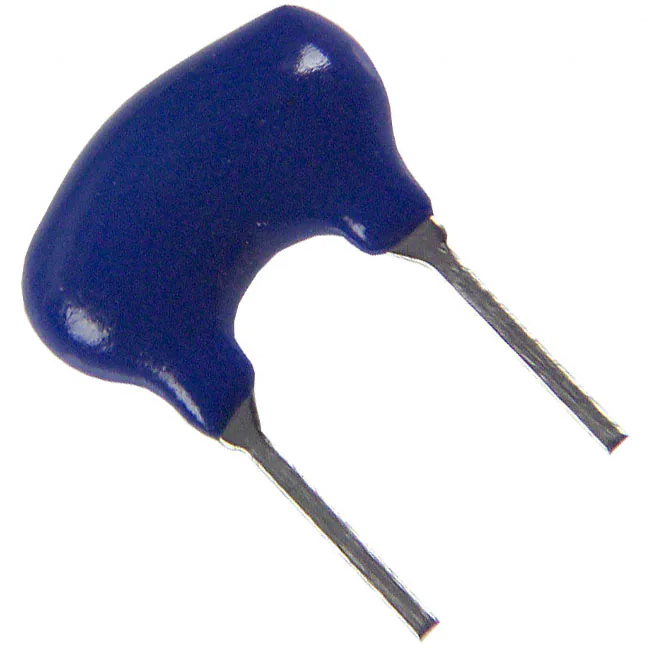

HWZT-8.00MDCERAMIC RES 8.0000MHZ T/H |
6,296 | - |
|
Datasheet | HWZT | Radial - 2 Lead, 5.00mm Pitch | Bulk | Active | Ceramic | 8 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -40°C ~ 85°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.217" (5.50mm) |
|
AWCR-12.00RSCERAMIC RES 12.0000MHZ 15PF T/H |
4,892 | - |
|
Datasheet | AWCR-RS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Obsolete | Ceramic | 12 MHz | ±0.5% | ±0.3% | Built in Capacitor | 15 pF | 25 Ohms | -25°C ~ 85°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.217" (5.50mm) |
|

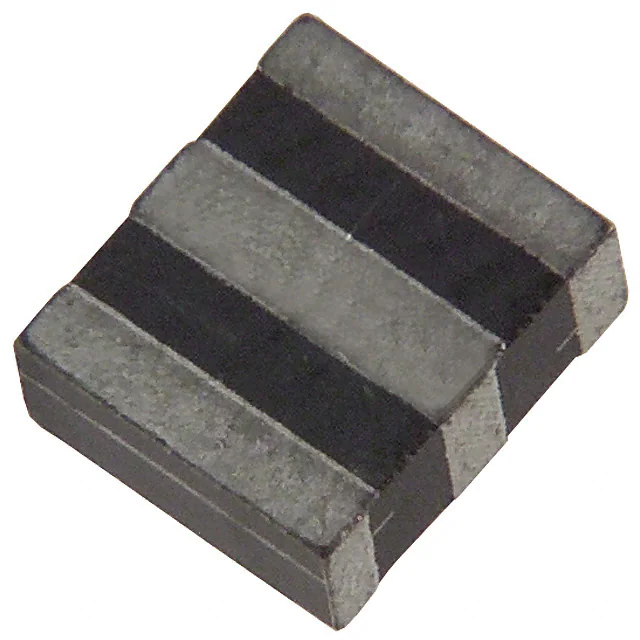

AWSCR-25.00MTD-TCERAMIC RES 25.0000MHZ 10PF SMD |
3,892 | - |
|
Datasheet | AWSCR-MTD | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 25 MHz | ±0.5% | ±0.3% | Built in Capacitor | 10 pF | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.185" L x 0.161" W (4.70mm x 4.10mm) | - |
Resonators FAQ
Common questions about filtering, comparing and sourcing Resonators components.
How can I narrow the Resonators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Resonators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
