Resonators

Use the filters and product table below to compare Resonators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Frequency	Frequency Stability	Frequency Tolerance	Features	Capacitance	Impedance	Operating Temperature	Mounting Type	Size / Dimension	Height
CP3M680000S033 CERAMIC RES 3.68MHz 33pF SMD6030 TGS	12,000	-	RFQ	Datasheet	CP	3-SMD, No Lead	Tape & Reel (TR)	Active	Ceramic	3.68 MHz	±0.3%	±0.5%	Built in Capacitor	33 pF	60 Ohms	-25°C ~ 85°C	Surface Mount	0.236" L x 0.118" W (6.00mm x 3.00mm)	0.067" (1.70mm)
CRTC4.0MG TLF CERAMIC RESONATOR 4.00MHZ SMD TGS	4,000	-	RFQ	Datasheet	CK	2913 (7434 Metric)	Tape & Reel (TR)	Active	Ceramic	4 MHz	±0.3%	±0.5%	Built in Capacitor	30 pF	30 Ohms	-25°C ~ 85°C	Surface Mount	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.083" (2.10mm)

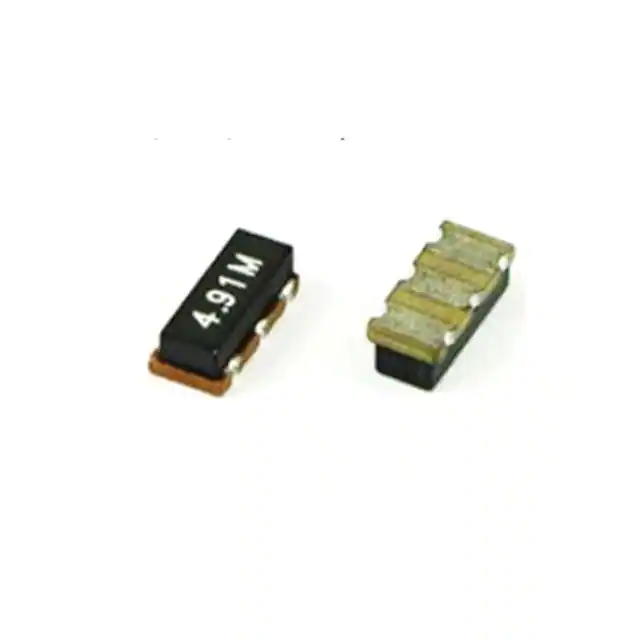

CRTC 4.91MG TLF CERAMIC RESONATOR 4.91MHZ SMD TGS	4,000	-	RFQ	Datasheet	CK	2913 (7434 Metric)	Tape & Reel (TR)	Active	Ceramic	4.91 MHz	±0.3%	±0.5%	Built in Capacitor	30 pF	30 Ohms	-25°C ~ 85°C	Surface Mount	0.291" L x 0.134" W (7.40mm x 3.40mm)	0.083" (2.10mm)
CG40M00000S001 CERAMIC RES 40MHz SMD3731 TGS	6,000	-	RFQ	Datasheet	CG	2-SMD, No Lead	Tape & Reel (TR)	Active	Ceramic	40 MHz	±0.3%	±0.5%	-	-	40 Ohms	-25°C ~ 85°C	Surface Mount	0.146" L x 0.122" W (3.70mm x 3.10mm)	0.047" (1.20mm)
CD4M000000S001 CERAMIC RESONATOR 4.0MHZ, TGS	20,000	-	RFQ	Datasheet	CD	Radial - 3 Lead, 2.50mm Pitch	Tape & Reel (TR)	Active	Ceramic	4 MHz	±0.3%	±0.5%	Built in Capacitor	30 pF	20 Ohms	-40°C ~ 85°C	Through Hole	0.374" L x 0.157" W (9.50mm x 4.00mm)	0.236" (6.00mm)
CD2M000000S001 CERAMIC RESONATOR 2.0MHZ, TGS	20,000	-	RFQ	Datasheet	CD	Radial - 3 Lead, 2.50mm Pitch	Tape & Reel (TR)	Active	Ceramic	2 MHz	±0.3%	±0.5%	Built in Capacitor	30 pF	80 Ohms	-40°C ~ 85°C	Through Hole	0.374" L x 0.157" W (9.50mm x 4.00mm)	0.217" (5.50mm)
SA315M0000S001 315MHZ SAW RESONATOR 8 PADS TGS	12,000	-	RFQ	Datasheet	SR S3	8-SMD, No Lead	Tape & Reel (TR)	Active	SAW	315 MHz	-	±75kHz	-	-	50 Ohms	-40°C ~ 85°C	Surface Mount	0.197" L x 0.197" W (5.00mm x 5.00mm)	0.053" (1.35mm)
CN20M00000S010 CERAMIC RES 20MHz 10pF SMD2520 TGS	300,000	-	RFQ	Datasheet	CN	3-SMD, No Lead	Tape & Reel (TR)	Active	Ceramic	20 MHz	±0.3%	±0.5%	Built in Capacitor	10 F	60 Ohms	-25°C ~ 85°C	Surface Mount	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.043" (1.10mm)
CJ20M00000S001 CERAMIC RES 20MHz SMD2520 TGS	30,000	-	RFQ	Datasheet	CJ	2-SMD, No Lead	Tape & Reel (TR)	Active	Ceramic	20 MHz	±0.3%	±0.5%	-	-	60 Ohms	-25°C ~ 85°C	Surface Mount	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.039" (1.00mm)
CJ24M00000S001 CERAMIC RES 24MHz SMD2520 TGS	30,000	-	RFQ	Datasheet	CJ	2-SMD, No Lead	Tape & Reel (TR)	Active	Ceramic	24 MHz	±0.3%	±0.5%	-	-	60 Ohms	-25°C ~ 85°C	Surface Mount	0.098" L x 0.079" W (2.50mm x 2.00mm)	0.039" (1.00mm)

WINSUN SOURCING SUPPORT

Need Help Sourcing Resonators?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Resonators FAQ

Common questions about filtering, comparing and sourcing Resonators components.

How can I narrow the Resonators selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Resonators part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
