Resonators
Use the filters and product table below to compare Resonators components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-SR2-10.00-BCERAMIC RES 10.0000MHZ 30PF SMD |
4,381 | - |
|
Datasheet | ECS-SR2-B | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 10 MHz | - | - | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) |
|

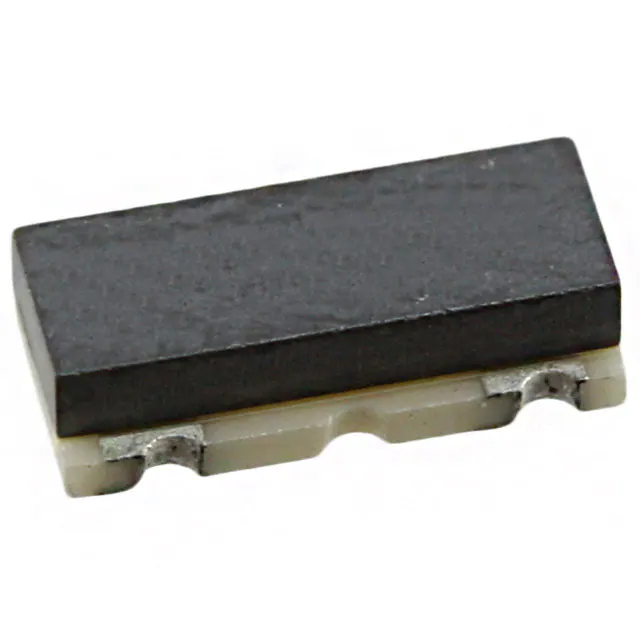

ECS-SR1-4.00-A-TRCERAMIC RES 4.0000MHZ SMD |
310 | - |
|
Datasheet | ECS-SR1-A | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -20°C ~ 80°C | Surface Mount | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.071" (1.80mm) |
|
ECS-SR1-4.00-B-TRCERAMIC RES 4.0000MHZ 30PF SMD |
8,582 | - |
|
Datasheet | ECS-SR1-B | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4 MHz | ±0.3% | ±0.5% | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) |
|
ZTB200DCERAMIC RES 200.0000KHZ T/H |
7,265 | - |
|
Datasheet | ZTB | Radial, Box - 2 Lead, 10.00mm Pitch | Bulk | Obsolete | Ceramic | 200 kHz | ±0.3% | ±1kHz | - | - | - | -20°C ~ 80°C | Through Hole | 0.531" L x 0.150" W (13.50mm x 3.80mm) | 0.579" (14.70mm) |
|
|
ECS-SR1-4.19-A-TRCERAMIC RES 4.1900MHZ SMD |
8,578 | - |
|
Datasheet | ECS-SR1-A | 2-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 4.19 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -20°C ~ 80°C | Surface Mount | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.071" (1.80mm) |
|
ECS-HFR-25.00-B-TRCERAMIC RES 25.0000MHZ 8PF SMD |
2,256 | - |
|
Datasheet | ECS-HFR-B | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 25 MHz | ±0.4% | ±0.5% | Built in Capacitor | 8 pF | - | -20°C ~ 80°C | Surface Mount | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) |
|
|
ECS-HFR-27.00-B-TRCERAMIC RES 27.0000MHZ 8PF SMD |
4,006 | - |
|
Datasheet | ECS-HFR-B | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 27 MHz | ±0.4% | ±0.5% | Built in Capacitor | 8 pF | - | -20°C ~ 80°C | Surface Mount | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.19mm) |
|
|
ECS-SR3-16.00-BCERAMIC RES 16.0000MHZ 30PF SMD |
5,610 | - |
|
Datasheet | ECS-SR3-B | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | Ceramic | 16 MHz | - | - | Built in Capacitor | 30 pF | - | -20°C ~ 80°C | Surface Mount | 0.295" L x 0.130" W (7.50mm x 3.30mm) | 0.087" (2.20mm) |
|
ZTA-20.00MXCERAMIC RES 20.0000MHZ T/H |
5,270 | - |
|
Datasheet | ZTA | Radial - 2 Lead, 5.00mm Pitch | Bulk | Obsolete | Ceramic | 20 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.394" (10.00mm) |
|
ZTA-3.58MGCERAMIC RES 3.5800MHZ T/H |
8,107 | - |
|
Datasheet | ZTA | Radial - 2 Lead, 5.00mm Pitch | Bulk | Obsolete | Ceramic | 3.58 MHz | ±0.3% | ±0.5% | - | - | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.295" (7.50mm) |
Resonators FAQ
Common questions about filtering, comparing and sourcing Resonators components.
How can I narrow the Resonators selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Resonators part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
