RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JPA892-1935A892-1935MHZ ANTENNA |
3,320 | - |
|
Datasheet | - | Active | - | Wide Band | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.7GHz ~ 2.17GHz | Molded | 2 | - | 6dB | 1.3dBi, 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | - | |
|
JLT920S36P6X920MHZ PATCH ANTENNA, DIMENSION |
3,916 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 920MHz | 917MHz ~ 923MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | - | |
|
JLT868S60P6X868MHZ PATCH ANTENNA, DIMENSION |
2,415 | - |
|
Datasheet | - | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 865MHz ~ 871MHz | Ceramic Patch | 1 | - | 15dB | - | - | - | Pin | - | - | - | Surface Mount | 0.236" (6.00mm) | - | |
|

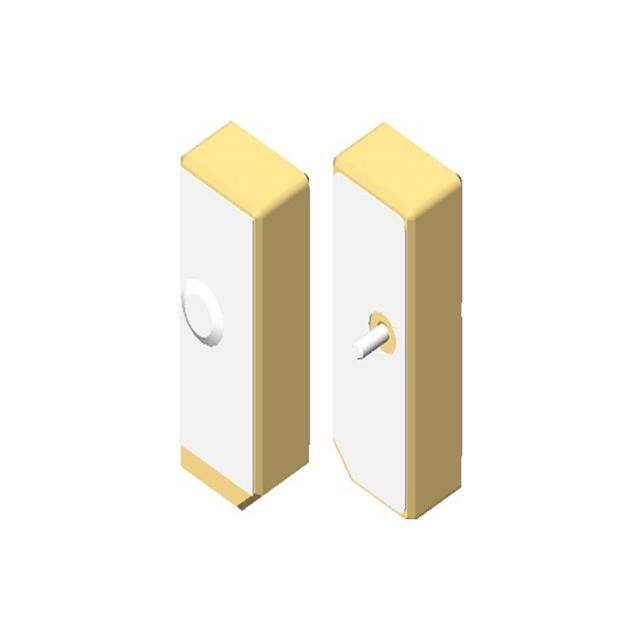

JLT1575S1606P4XGPS PATCH ANTENNA, DIMENSION 16* |
4,800 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.616GHz, 2.492GHz | 1.613GHz ~ 1.619GHz, 2.489GHz ~ 2.495GHz | Ceramic Patch | 2 | - | 10dB, 20dB | - | - | - | Pin | - | - | - | Surface Mount | 0.335" (8.50mm) | - | |
|

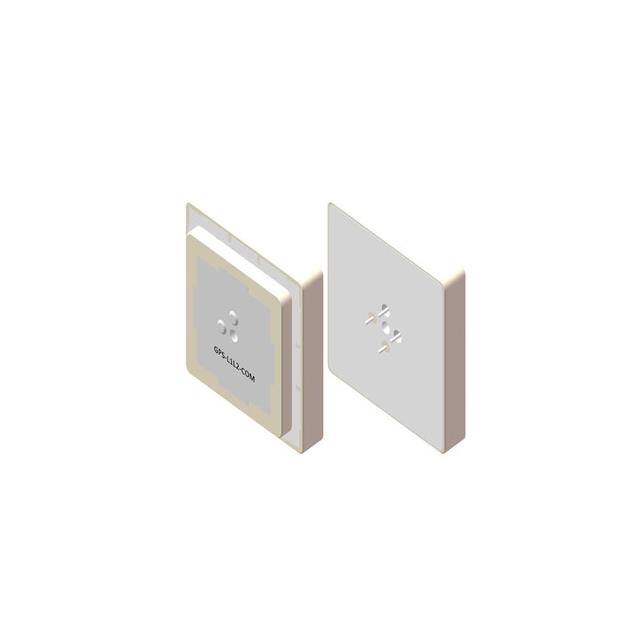

JLTD1245-1585S48-36P5-3ATWO LAYER GNSS PATCH ANTENNA |
1,843 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.245GHz, 1.585GHz | 1.242GHz ~ 1.248GHz, 1.58GHz ~ 1.59GHz | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.331" (8.40mm) | - | |
|
JLTD1248-1563S48-36P5-3ATWO LAYER GNSS PATCH ANTENNA |
1,429 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.248GHz, 1.563GHz | 1.245GHz ~ 1.251GHz, 1.558GHz ~ 1.568GHz | Ceramic Patch | 2 | - | 10dB | - | - | - | Pin | - | - | - | Surface Mount | 0.331" (8.40mm) | - | |
|
JLTD1227-1575S48-36P5-3XTWO LAYER GNSS PATCH ANTENNA |
4,619 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz) | 1.239GHz, 1.594GHz | 1.234GHz ~ 1.244GHz, 1.589GHz ~ 1.599GHz | Ceramic Patch | 2 | - | 6dB | - | - | - | Pin | - | - | - | Surface Mount | 0.331" (8.40mm) | - | |
|

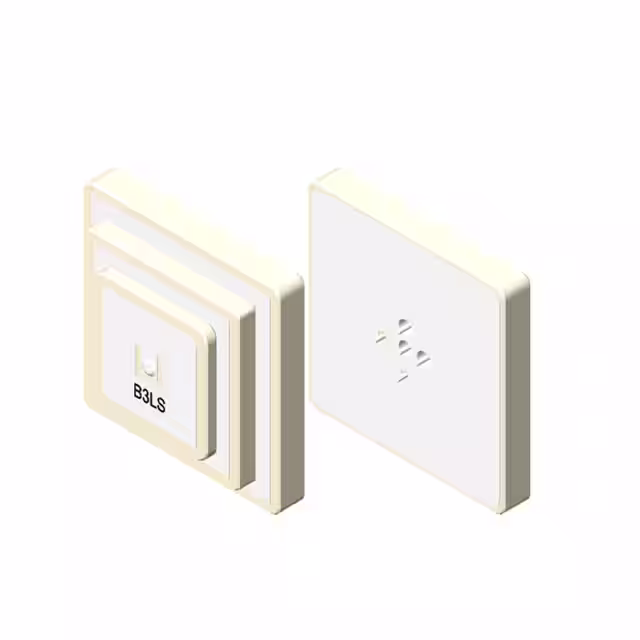

JLTT1268-1616-2492S43-33-25P6-4-2XGNSS PATCH ANTENNA |
4,916 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.268GHz, 1.616GHz, 2.492GHz | 1.265GHz ~ 1.271GHz, 1.613GHz ~ 1.619GHz, 1.487GHz ~ 2.497GHz | Ceramic Patch | 3 | - | 10dB, 15dB | 2 dBi, 3dBi, 3dBi | - | - | Pin | - | - | - | Surface Mount | 0.492" (12.50mm) | - | |
|

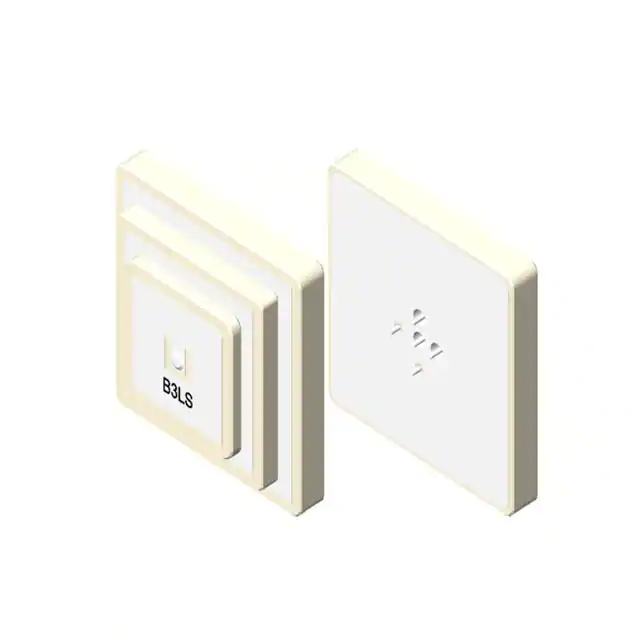

JLTT1268-1568-2492S45-37-25P4XGNSS PATCH ANTENNA |
3,601 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.268GHz, 1.568GHz, 2.492GHz | 1.265GHz ~ 1.271GHz, 1.565GHz ~ 1.571GHz, 2.489GHz ~ 2.495GHz | Ceramic Patch | 3 | - | 15dB | 0dBi, 2dBi | - | - | Pin | - | - | - | Surface Mount | 0.472" (12.00mm) | - | |
|

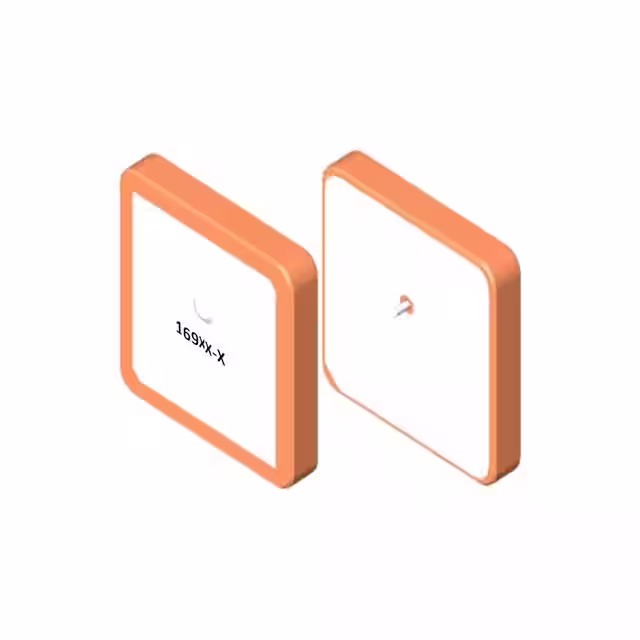

JLTD1616-2492S36XGNSS PATCH ANTENNA |
2,259 | - |
|
Datasheet | - | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.616GHz, 2.492GHz | 1.612GHz ~ 1.62GHz, 2.488GHz ~ 2.496GHz | Ceramic Patch | 2 | - | 15dB | 1.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
