RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications

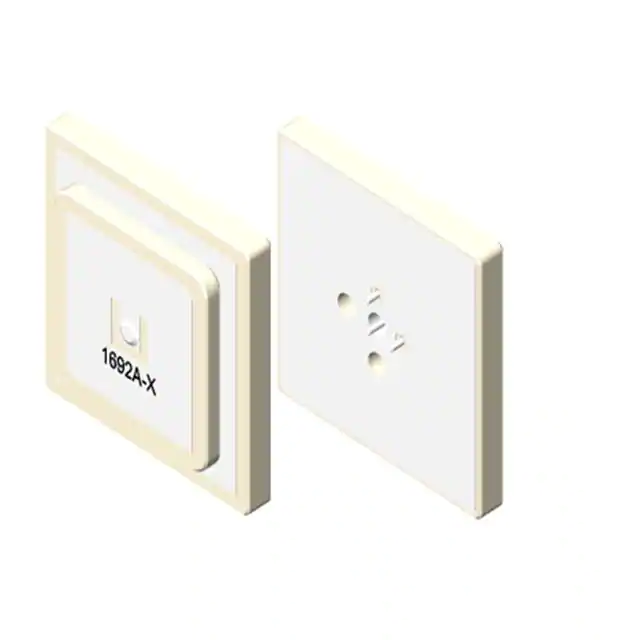

JLTD1616-2492S33-25P6-2.5X TWO LAYER GNSS PATCH ANTENNA JC Antenna	3,492	-	RFQ	Datasheet	-		Active	-	UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)	1.616GHz, 2.492GHz	1.613GHz ~ 1.619GHz, 2.489GHz ~ 2.495GHz	Ceramic Patch	2	-	10dB, 20dB	-	-	-	Pin	-	-	-	Surface Mount	0.335" (8.50mm)	-

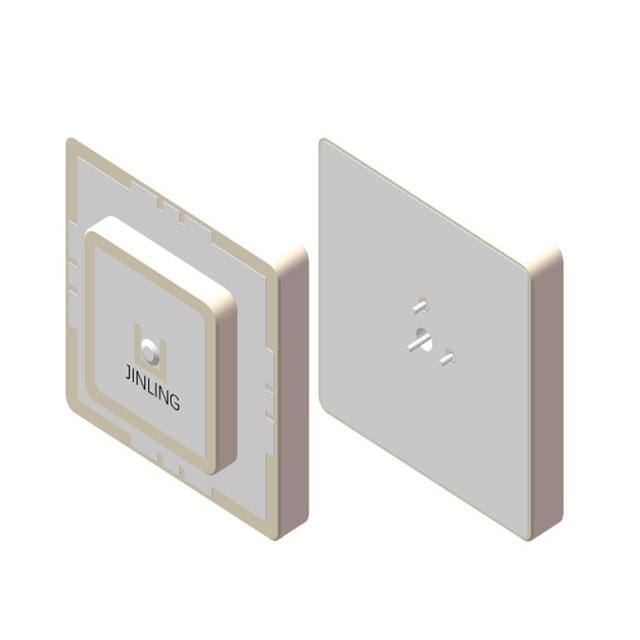

JLTD1616-2492S40-25P6-4X GNSS PATCH ANTENNA JC Antenna	3,416	-	RFQ	Datasheet	-		Active	-	UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz)	1.561GHz, 1.575GHz, 1.616GHz, 2.492GHz	-	Ceramic Patch	4	-	10dB, 15dB	3dBi, 3.5dBi, 4dBi	-	-	Pin	-	-	-	Surface Mount	0.394" (10.00mm)	-
JCE058 GPS&GSM&WIFI ANTENNA JC Antenna	4,686	-	RFQ	Datasheet	-		Active	Cellular, Navigation, WiFi	Wide Band	892MHz, 1.575GHz, 1.94GHz, 2.442GHz	824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.483GHz	Module	4	1.5, 2	-	2dBi, 2dBic, 2dBi, 3dBi	-	Cable - 3m, LNA	SMA Male	IP67	-	-	Screw	1.890" (48.00mm)	GPS, GSM, Wi-Fi
JCF915-8 LORA 915MHZ FIBERGLASS ANTENNA 8 JC Antenna	2,136	-	RFQ	Datasheet	-		Active	-	UHF (300MHz ~ 1GHz)	915MHz	-	Whip, Straight	1	1.5	-	8dBic	100 W	-	N-J	-	-	-	Bracket Mount	0.039" (1.00mm)	-
JCF868-8 LORA 868MHZ FIBERGLASS ANTENNA 8 JC Antenna	4,895	-	RFQ	Datasheet	-	Box	Active	-	UHF (300MHz ~ 1GHz)	-	868MHz	Whip, Straight	1	1.5	-	8dBic	100 W	-	N-J	-	-	-	Bracket Mount	0.039" (1.00mm)	-
JCA225S GNSS L1+L2 ACTIVE ANTENNA JC Antenna	3,349	-	RFQ	Datasheet	-		Active	Navigation	UHF (1GHz ~ 2GHz)	1.241GHz, 1.584GHz	1.205GHz ~ 1.278GHz, 1.559GHz ~ 1.61GHz	Dome	2	2	-	3dBi, 3dBi	-	LNA	TNC-K	IP67	-	-	Panel Mount	1.811" (46.00mm)	GNSS
JCN228F GNSS MULTI-BAND SURVEYING ANTENN JC Antenna	4,140	-	RFQ	Datasheet	-		Active	Navigation	-	-	-	Module	1	1.5	-	5.5dBi	-	Cable - 100mm, LNA	MCX Male	-	-	-	Screw	-	Galileo, GLONASS, GNSS, GPS
JCA247 GNSS ACTIVE ANTENNA JC Antenna	1,285	-	RFQ	Datasheet	-		Active	Navigation	UHF (1GHz ~ 2GHz)	1.581GHz	1.561GHz ~ 1.602GHz	Dome	1	1.5	-	3dBic	-	LNA	N Type Female	IP66	-	-	Screw	3.984" (101.20mm)	GNSS
