RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE9858B-15-CPRGWR-112 Waveguide Standard Gain H |
4,289 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 15dBi | - | - | - | - | - | - | Waveguide Mount | 4.900" (124.46mm) | General Purpose |
|

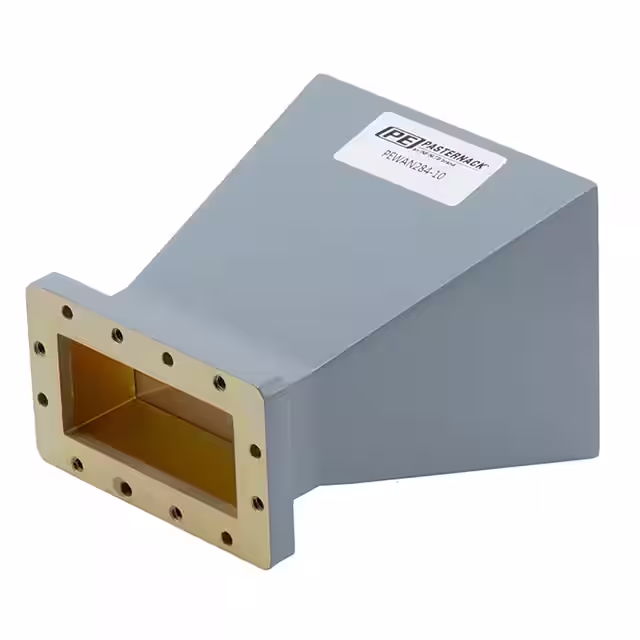

PEWAN284-10WR284 GAIN HORN 2.6-3.95GHZ 10DB |
4,252 | - |
|
Datasheet | - | Bulk | Active | Waveguide | S Band (2GHz ~ 4GHz) | 3.3GHz | 2.6GHz ~ 3.95GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9852B-20WR-42 Waveguide Standard Gain Ho |
3,916 | - |
|
Datasheet | - | Retail Package | Active | General ISM | Wide Band | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.5 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | - | - | - | - | Waveguide Mount | - | General Purpose |
|
|
PE9858B-20WR-112 Waveguide Standard Gain H |
3,777 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 10.750" (273.05mm) | General Purpose |
|
|
PEWAN028-20KMWR28 GAIN HRN 26.5-40GHZ 20DBI |
2,628 | - |
|
Datasheet | - | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.29 | - | 20dBi | - | - | 2.92mm Male | - | - | - | Waveguide Flange Mount | 3.746" (95.15mm) | - |
|
|
PE2WAN042-15WR-42 Waveguide Antenna, 18 GHz |
4,999 | - |
|
Datasheet | - | Retail Package | Active | General ISM | Wide Band | 22.25GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | Screw-Mount | - | - | - | Bracket Mount | 3.150" (80.01mm) | General Purpose |
|
|
PEWAN042-20KMWR42 GAIN HRN 18-26.5GHZ 20DBI |
3,131 | - |
|
Datasheet | - | Tape & Box (TB) | Active | Waveguide | Wide Band | 22.2GHz | 18GHz ~ 26.5GHz | Horn | 1 | 1.4 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | 2.92mm Male | - | - | - | Waveguide Mount | 1.524" (38.70mm) | General Purpose |
|
|
PE9861B-20WR-187 Standard Gain Horn Antenn |
3,467 | - |
|
Datasheet | - | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 15.680" (398.27mm) | General Purpose |
|
|
PEWAN051-20SFWR51 GAIN HRN 15-22GHZ 20DBI |
3,657 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 18.5GHz | 15GHz ~ 22GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 1.850" (47.00mm) | General Purpose |
|
|
PE9854B-20WR-62 Waveguide Standard Gain Ho |
4,798 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 5.750" (146.05mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
