RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

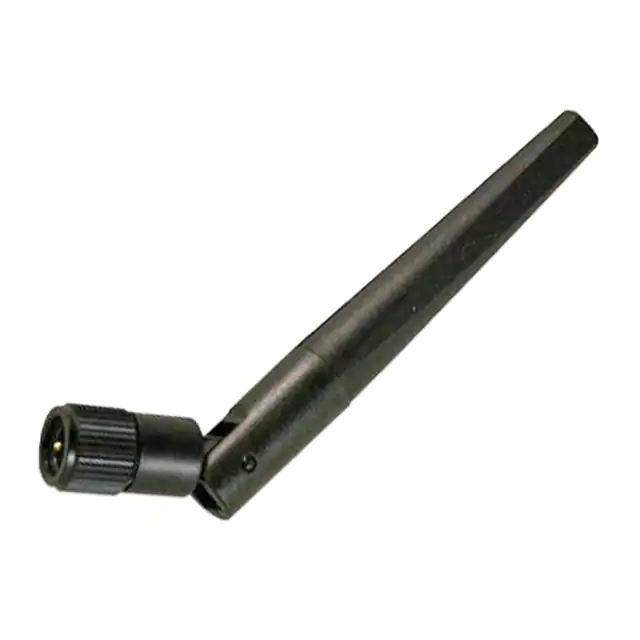

PRO-EX-332RF ANT 2.4GHZ WHIP TILT SMA MALE |
4,052 | - |
|
Datasheet | External Antenna | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Whip, Tilt | 1 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.268" (83.00mm) | - |
|
APAMSTJ-138RF ANT 440MHZ/850MHZ WHIP STR |
2,859 | - |
|
Datasheet | APAMS | Bulk | Active | Bluetooth, Cellular, WiFi | Wide Band | 440MHz, 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 380MHz ~ 2.4GHz | Whip, Straight | 8 | 3 | - | 2.2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Adhesive | 0.262" (6.65mm) | AMPS, Bluetooth, DCS, GSM, PCS, Tetra, UMTS, Wi-Fi |
|
APAES923R3640C16-TRF ANT 923MHZ CER PATCH PIN ADH |
1,250 | - |
|
Datasheet | APAE | Tray | Active | - | UHF (300MHz ~ 1GHz) | 923MHz | 918MHz ~ 927MHz | Ceramic Patch | 1 | 1.5 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
AEARBD048014-SG3RF ANT 1561/1575/1602MHZ DOME |
2,208 | - |
|
Datasheet | AEAR | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.610GHz | Puck | 1 | 2 | - | 5.78dBi, 4.27dBi, 5.65dBi | - | Cable - 5m, LNA | SMA | - | - | - | Magnetic | 0.551" (14.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AECW0801C03S-3000SANTENNA GNSS+LTE+WIFI |
4,215 | - |
|
Datasheet | AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5815GHz, 2.2GHz, 2.44GHz, 5.3625GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 2, 2.5, 3 | - | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

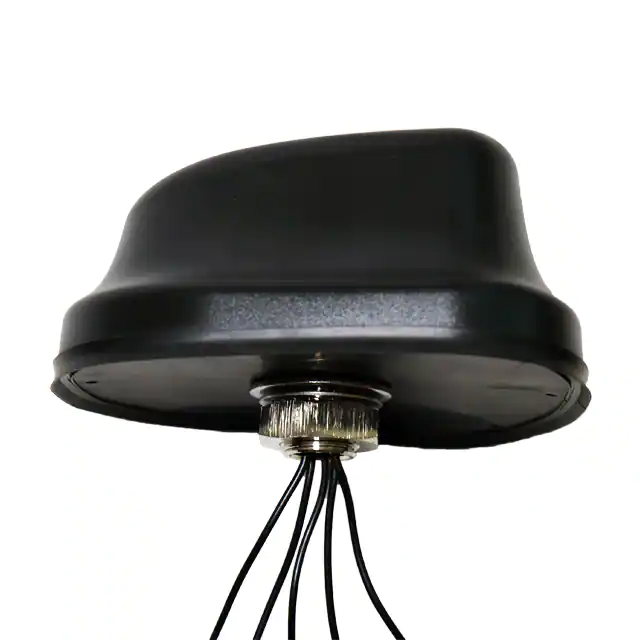

AECR1808A12S-3000SANTENNA GNSS+5G MIMO+WIFI MIMO |
2,454 | - |
|
Datasheet | AECR | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.5835GHz, 2.2GHz, 2.44GHz, 3.35GHz, 5.4125GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 2.9GHz ~ 3.8GHz, 4.9GHz ~ 5.925GHz | Dome | 6 | 2, 2.5, 3 | - | 2dBi, 5dBi, 2dBi, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (5) | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AEACBA081016-C2LGLTE/GPS ADHESIVE MOUNT COMBO ANT |
3,619 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.572GHz ~ 1.578GHz, 1.71GHz ~ 2.69GHz | Dome | 3 | 2, 3 | - | 2.5dBi, 2dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Adhesive | 0.638" (16.20mm) | 2G, 3G, 4G, GSM, GPS, GNSS, LTE |
|

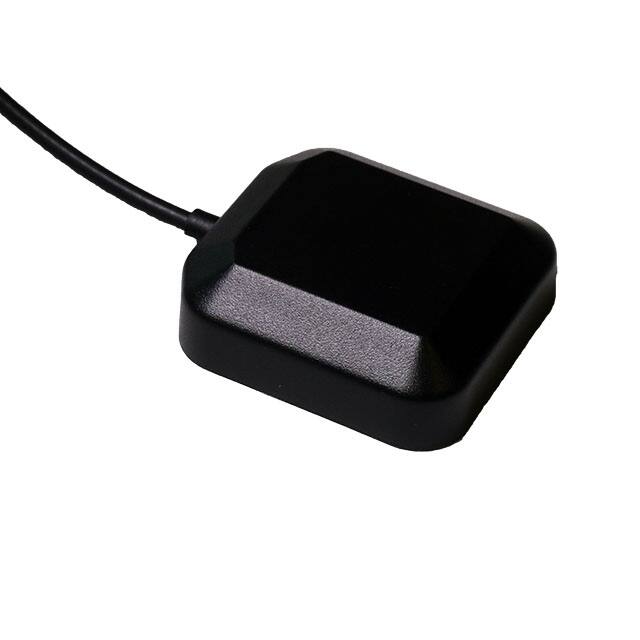

AEARBD040038-S1621RF ANT 1.6GHZ MODULE SMA ML MAG |
3,791 | - |
|
Datasheet | AEAR | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Module | 1 | 1.5 | - | 0.46dBi | - | - | SMA | - | - | - | Magnetic | 0.484" (12.30mm) | - |
|

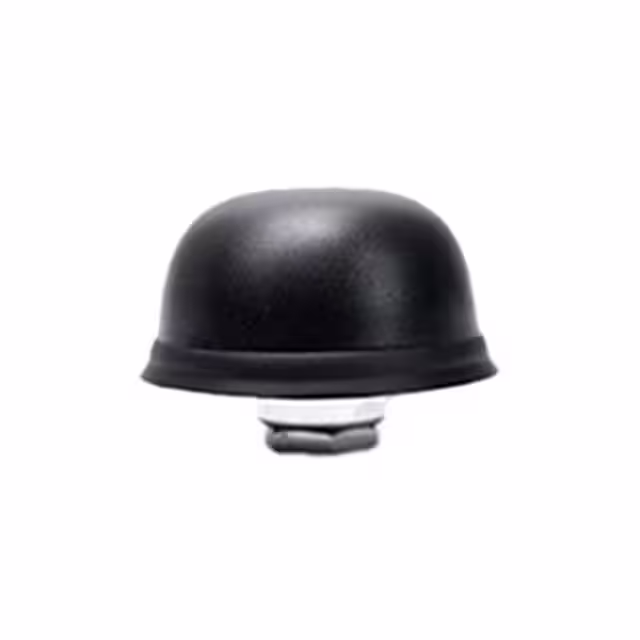

APAMBJ-145RF ANT 2.4GHZ/5.8GHZ DOME PNL MT |
3,256 | - |
|
Datasheet | APAMBJ | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 5.1GHz ~ 5.9GHz | Dome | 2 | 2 | - | 5dBi, 2dBi | - | Cable - 2.5m | SMA Male | - | - | - | Panel Mount | 1.437" (36.50mm) | Bluetooth, Wi-Fi |
|
AMCA31-2R800G-S1F-TRF ANT 2.8GHZ CHIP SOLDER SMD |
901 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.8GHz | 2.725GHz ~ 2.875GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | WiMax™, WLAN |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
