RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

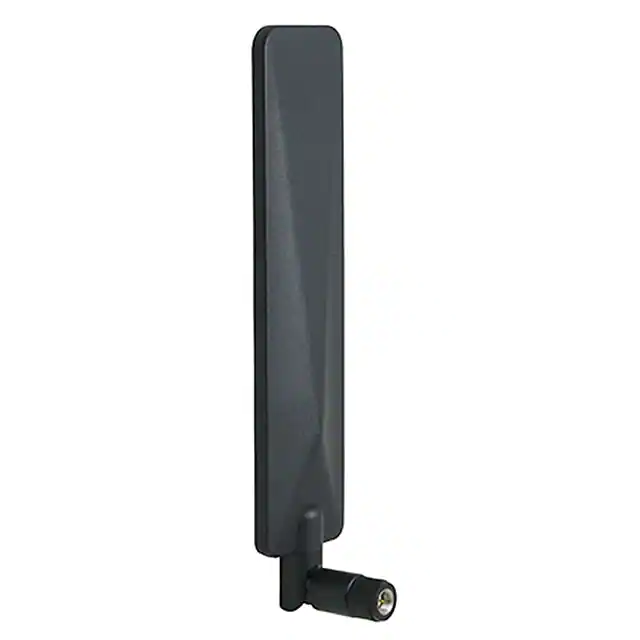

APAMPSLJ-140RF ANT 829MHZ/2.2GHZ WHIP STR |
3,143 | - |
|
Datasheet | APAMPS | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 699MHz ~ 2.69GHz | Whip, Straight | 2 | 5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.732" (171.00mm) | GPS, LTE |
|
AEACBK046014-C2WGRF ANT 2.45GHZ MODULE SMA CONN |
1,309 | - |
|
Datasheet | AEAC | Bulk | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.483GHz | Module | 1 | 2 | - | 2dBi | 10 W | LNA | SMA | IP67 | - | - | Screw | 0.571" (14.50mm) | Bluetooth, GLONASS, GPS, ISM, Wi-Fi, Zigbee™ |
|
PRO-IS-577ANT FLEX GSM/NB-IOT 100MM MHF |
2,234 | - |
|
Datasheet | Embedded Antenna | Bag | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -6dB | 5.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.005" (0.13mm) | GSM |
|
AEACAC049018-S868RF ANT 868MHZ WHIP RA SMA ML |
3,966 | - |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 833MHz ~ 903MHz | Whip, Right Angle | 1 | 3 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.965" (49.90mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
AANE-WH-0151-RIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
4,150 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.6dBi, 4.7dBi, 4.3dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 7.728" (196.30mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0149-RIPRF ANT WI-FI6E/7 WATERPROOF WHI |
2,321 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2, 2.5, 3.5 | 5dBi, 6dBi, 10dBi | 2.2dBi, 3.2dBi, 2.7dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0150-RIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
2,157 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.4dBi, 4.4dBi, 4.1dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 8.740" (222.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0148-RIPRF ANT WI-FI6E/7 WATERPROOF WHIP |
2,820 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 3.7dBi, 4.1dBi, 5.3dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 6.181" (157.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
APXG6413GH-0600AANTENNA ACTIVE GNSS STACKED PATC |
1,888 | - |
|
Datasheet | APX | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.18GHz, 1.2GHz, 1.21GHz, 1.23GHz, 1.25GHz, 1.27GHz, 1.28GHz, 1.56GHz, 1.58GHz, 1.6GHz | 1.24GHz ~ 1.25GHz, 1.6GHz ~ 1.61GHz | Ceramic Patch | 10 | - | - | 1dBi, 4.6dBi, 1.9dBi, 4.7dBi | - | LNA | - | - | - | - | Screw Mount | 0.528" (13.42mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, NavIC, QZSS, SBAS |
|
|
AANI-AH-0152-1RF ANTENNA BAND L1/L2 HELIX |
4,298 | - |
|
Datasheet | AANI-AH | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.575GHz | 1.217GHz ~ 1.255GHz, 1.559GHz ~ 1.6265GHz | Helical | 2 | 2 | - | 2.2dBic, 1.7dBic | - | Cable - 100mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Base Mount | 1.850" (47.00mm) | Beidou, Galileo, GNSS, GPS, GLONASS, GNSS, IRNSS, NAVIC, QZSS, SBAS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
