RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AANI-CH-0138-Q-TRF ANT 2.45GHZ BT/WI-FI CERM CHI |
4,521 | - |
|
Datasheet | AANI-CH | Tape & Reel (TR) | Active | - | - | - | - | - | 1 | - | - | - | 3 W | - | - | - | - | - | - | - | - |
|

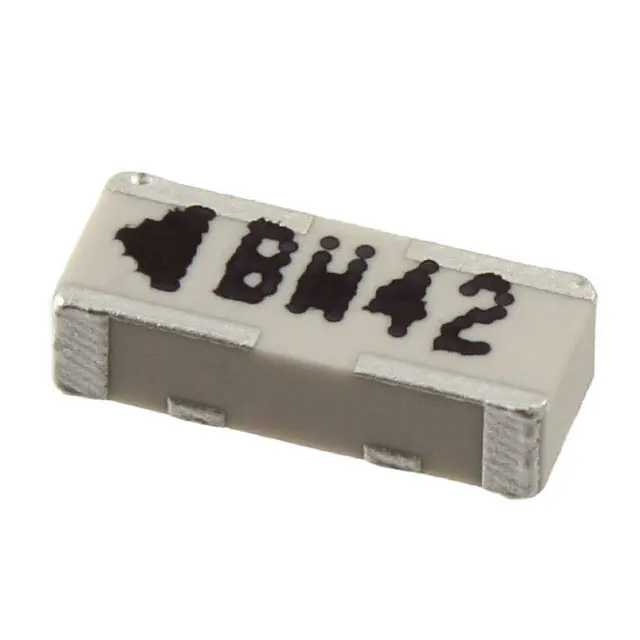

ACA-103-TRF ANT 2.4GHZ/5.5GHZ CHIP SLD |
2,155 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | Chip | 2 | 3 | - | -1.37dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
ACA-102-TRF ANT 2.4GHZ CHIP SOLDER SMD |
3,448 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 2.6 | - | 0.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
AMCA31-2R450G-S1F-TRF ANT 2.4GHZ CHIP SOLDER SMD |
1,791 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.405GHz ~ 2.495GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN |
|
PRO-OB-518RF ANT 868MHZ/2.4GHZ STAMPED MET |
3,779 | - |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Obsolete | 802.15.4 | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 2.4GHz | 860MHz ~ 870MHz, 2.4GHz ~ 2.5GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | 6LoWPAN, ZigBee™ |
|
APAE2338L2540DDDB1-TRF ANT 2.3GHZ CER PATCH PIN ADH |
1,723 | - |
|
Datasheet | APAE | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.3GHz | 2.323GHz ~ 2.353GHz | Ceramic Patch | 1 | 1.5 | - | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | SDARS |
|
|
AFG4507W2S-0100SDUAL BAND WIFI FLEXIBLE ANTENNA |
3,598 | - |
|
Datasheet | AFG | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 3 | - | 6.62dBi, 8.12dBi, 6.91dBi | - | Cable - 100mm | I-PEX1 Female | - | - | - | Adhesive, Connector Mount | 0.008" (0.20mm) | Wi-Fi |
|
|
AFG4507W2S-0090SDUAL BAND WI-FI FLEXIBLE ANTENNA |
3,293 | - |
|
Datasheet | AFG | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 3 | - | 6.62dBi, 8.12dBi, 6.91dBi | - | Cable - 90mm | I-PEX1 Female | - | - | - | Adhesive, Connector Mount | 0.008" (0.20mm) | Wi-Fi |
|
|
AFG4507W2S-0150SDUAL BAND WI-FI FLEXIBLE ANTENNA |
3,514 | - |
|
Datasheet | AFG | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 3 | - | 6.62dBi, 8.12dBi, 6.91dBi | - | Cable - 150mm | I-PEX1 Female | - | - | - | Adhesive, Connector Mount | 0.008" (0.20mm) | Wi-Fi |
|
|
AMCA81-3R010G-S1F-TRF ANT 3GHZ CHIP SOLDER SMD |
1,390 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Obsolete | Cellular, WiFi | UHF (2GHz ~ 3GHz) | 3GHz | 2.91GHz ~ 3.11GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | LTE, WiMax™, WLAN |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
