RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAE1590R1350AKDB5-TRF ANT 1.575/1.602GHZ CER PATCH |
1,781 | - |
|
Datasheet | APAE | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | - | - | -2dBi | - | - | Pin | - | - | - | Adhesive | 0.220" (5.60mm) | GLONASS, GPS |
|
AMCA72-2R470G-S1F-TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,935 | - |
|
Datasheet | AMCA | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.37GHz ~ 2.57GHz | Chip | 1 | 2 | - | 2.7dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN |
|
ABR3407I9-0100SRF ANT 915MHZ PCB IPEX |
1,027 | - |
|
Datasheet | - | Box | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | - | -12dB | 1.84dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.031" (0.80mm) | ISM, LoRa, LPWAN, Sigfox |
|

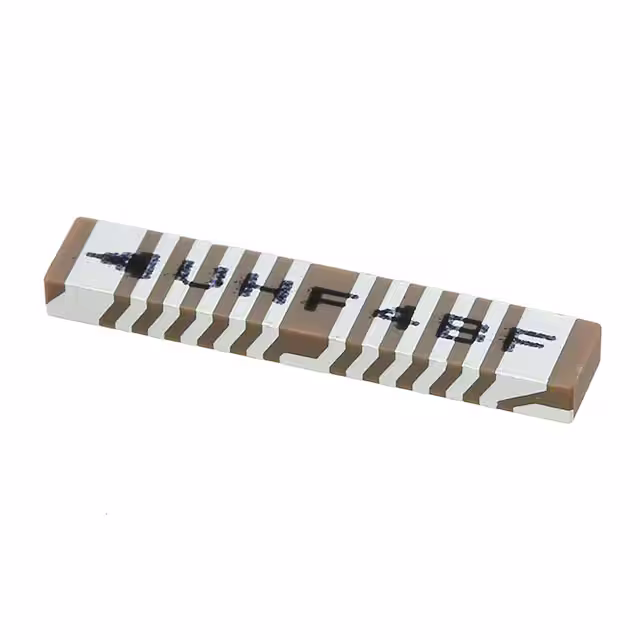

ACA-105-TRF ANT 490MHZ/783MHZ CHIP SLD |
4,525 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | WiFi | UHF (300MHz ~ 1GHz) | 490MHz, 783MHz, 868MHz, 915MHz | 470MHz ~ 510MHz, 779MHz ~ 787MHz, 858MHz ~ 878MHz, 902MHz ~ 928MHz | Chip | 4 | 3, 2, 2, 2 | - | 3.28dBi | - | - | Solder | - | - | - | Surface Mount | 0.055" (1.40mm) | WLAN |
|
|
APAE1590R1340AKDB2-TGPS GLONASS PATCH 1575.42MHZ |
2,268 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFAG4507-SW22.4/5GHZ WIFI FLEX ANT IPEX-1(F) |
3,325 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | 3 | - | 6.01dBi, 8.12dBi | - | Cable - 200mm | I-PEX | - | - | - | Adhesive | 0.008" (0.20mm) | IoT, M2M |
|
|
AANI-FB-0083-0100WPCB ANT WI-FI6E/7 TRI-BAND 2.4/ |
4,393 | - |
|
Datasheet | AANI-FB | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.4dBi, 4.1dBi, 4.1dBi | - | Cable - 100mm | I-PEX MHF4 (U.FL) | - | - | - | Adhesive | 0.028" (0.70mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
AANI-FB-0084-0150IFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
2,990 | - |
|
Datasheet | AANI-FB | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.9dBi, 4.7dBi, 5.4dBi | - | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
AANI-FB-0083-0050IPCB ANT WI-FI6E/7 TRI-BAND 2.4/ |
4,774 | - |
|
Datasheet | AANI-FB | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.4dBi, 4.1dBi, 4.1dBi | - | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.028" (0.70mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
AANI-FB-0084-0200WFPC ANT WI-FI6E/7 TRI-BAND 2.4/ |
1,898 | - |
|
Datasheet | AANI-FB | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.5 | - | 2.9dBi, 4.7dBi, 5.4dBi | - | Cable - 200mm | I-PEX MHF4 (U.FL) | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
