RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

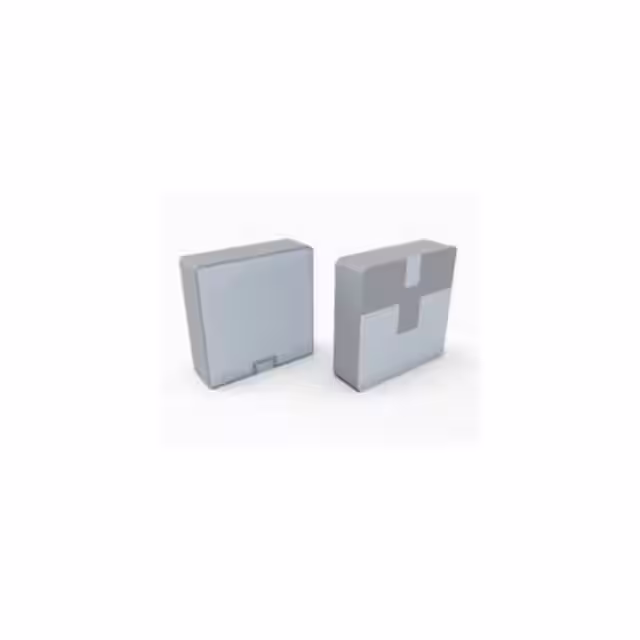

APAKN1304-S2450-TRF ANT COMP 2.4GHZ WIFI/BL PATCH |
3,369 | - |
|
Datasheet | APAK | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.448GHz | 2.412GHz ~ 2.484GHz | Ceramic Patch | 1 | - | -10dB | 5dBi | - | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
APAMS-101RF ANT 900MHZ/1.8GHZ FLAT BAR |
1,659 | - |
|
Datasheet | APAMS | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 820MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Bar | 2 | 2 | - | 1dBi, 2dBi | - | - | FME-J3 | - | - | - | Adhesive | 0.276" (7.00mm) | GSM |
|
APRE2508GCZRF ANT GPS L1+L5/GNSS STACK PAT |
3,546 | - |
|
Datasheet | APRE | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.577GHz, 1.602GHz | 1.164GHz ~ 1.188GHz, 1.563GHz ~ 1.563GHz, 1.574GHz ~ 1.575GHz, 1.563GHz ~ 1.591GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 5 | 3 | - | 1.3dBi, 3.1dBi, 1.6dBi, 1.6dBi, 4.3dBi | - | - | Solder | - | Automotive | AEC-Q200 | Adhesive, Through Hole | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
APAM1348YD13V2.0RF ANT 1.575GHZ CER PATCH IPEX |
4,138 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | 1dBic | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.220" (5.60mm) | GPS |
|
AANE-WH-0149-SRF ANT WI-FI6E/7 WHIP ANTENNA |
1,737 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2, 2.5, 3.5 | 5dBi, 6dBi, 10dBi | 2.2dBi, 3.2dBi, 2.7dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0150-RRF ANT WI-FI6E/7 WHIP ANTENNA |
1,853 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.4dBi, 4.4dBi, 4.1dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 8.740" (222.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0150-SRF ANT WI-FI6E/7 WHIP ANTENNA |
3,058 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.4dBi, 4.4dBi, 4.1dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.740" (222.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0149-RRF ANT WI-FI6E/7 WHIP ANTENNA |
4,730 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | 2, 2.5, 3.5 | 5dBi, 6dBi, 10dBi | 2.2dBi, 3.2dBi, 2.7dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0151-RRF ANT WI-FI6E/7 WHIP ANTENNA |
1,475 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.6dBi, 4.7dBi, 4.3dBi | 5 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 7.728" (196.30mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
|
|
AANE-WH-0151-SRF ANT WI-FI6E/7 WHIP ANTENNA |
4,187 | - |
|
Datasheet | AANE-WH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | 2 | 10dB | 2.6dBi, 4.7dBi, 4.3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 7.728" (196.30mm) | 802.11ac/ax/be/b/g/n, Bluetooth, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
