RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

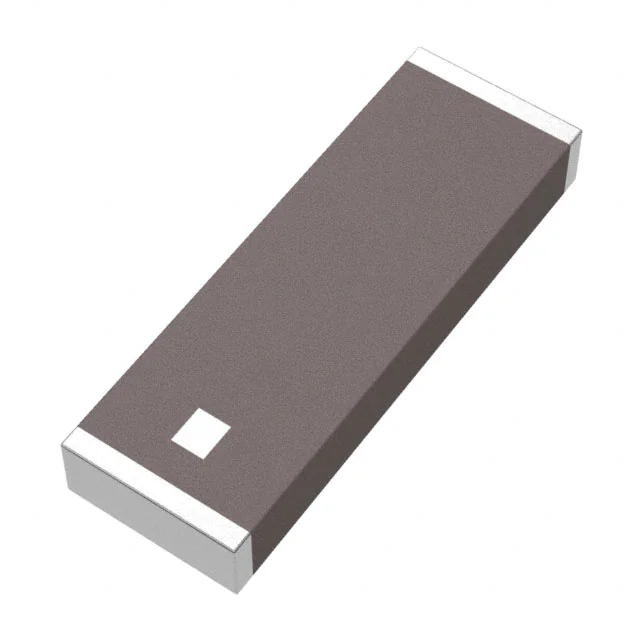

ACAG1204-433-TRF ANT 433MHZ CHIP SOLDER SMD |
11,564 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 433MHz | 428MHz ~ 438MHz | Chip | 1 | 2 | -6.5dB | -1.72dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ISM, LoRa, Sigfox, Wi-Fi |
|
AFAG2220-SW2RF ANT DUAL BAND WIFI FPC W/IPEX |
1,678 | - |
|
Datasheet | AFAG | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz | PCB Trace | 2 | 2, 2.5 | - | 2dBi | 3 W | Cable - 220mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, Wi-Fi |
|
ABAR1504-S2450RF ANT 2.45GHZ PATCH |
646 | - |
|
Datasheet | ABAR | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.484GHz | Flat Patch | 1 | 2.7, 1.63, 1.66 | - | 1.52dBi, 2.28dBi, 1.89dBi | - | Cable - 250mm | I-PEX | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

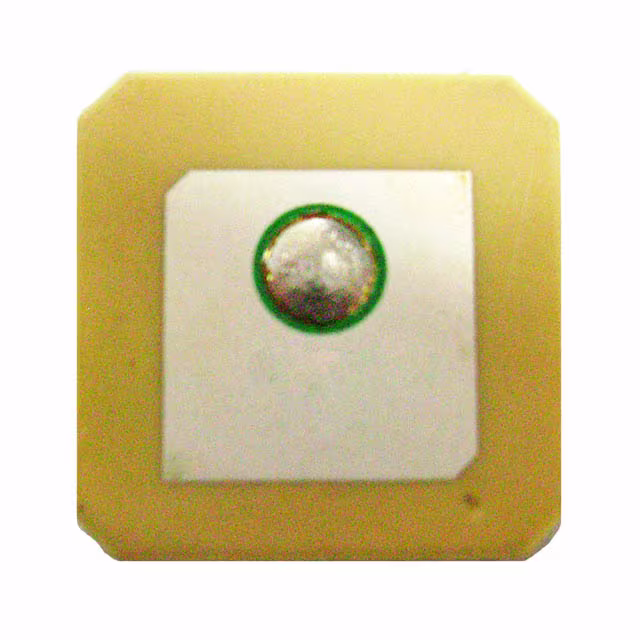

APAE1621R2540ABDD1-TRF ANT 1.621GHZ CER PATCH PIN |
1,991 | - |
|
Datasheet | APAE | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.621GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 4dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | Iridium™ |
|

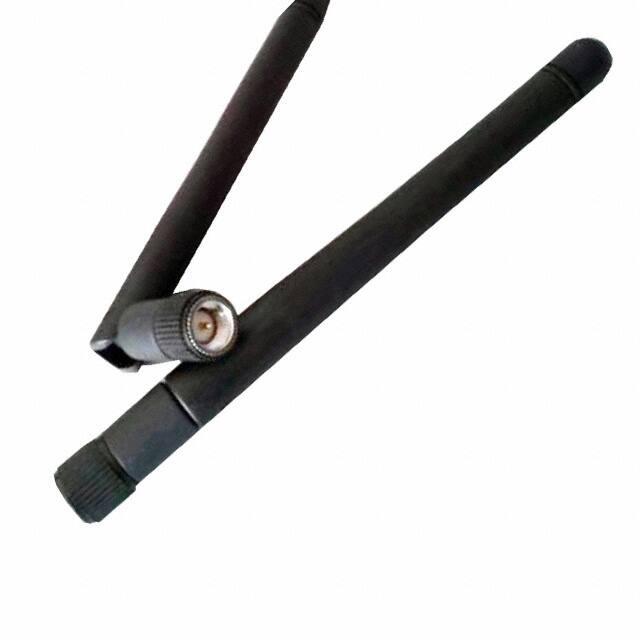

APAMS-118RF ANT 900MHZ WHIP TILT SMA MALE |
353 | - |
|
Datasheet | APAMS | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 890MHz ~ 960MHz | Whip, Tilt | 1 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.256" (108.10mm) | - |
|
AEACAC025009-S2400RF ANT 2.4GHZ WHIP STR SMA MALE |
815 | - |
|
Datasheet | AEAC | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 1.020" (25.90mm) | ISM, Wi-Fi |
|
APAM2764YK0175RF ANT 1.575GHZ CER PATCH CAB |
1,184 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 2.5dBic | - | Cable - 50mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
APAM1866YA18RF ANT 1.575GHZ CER PATCH CAB |
1,266 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | Cable - 205mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
APAM1568YE15V2.0RF ANT 1.575GHZ CER PATCH CAB |
894 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 1.5dBic | - | Cable - 36mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.268" (6.80mm) | GPS |
|

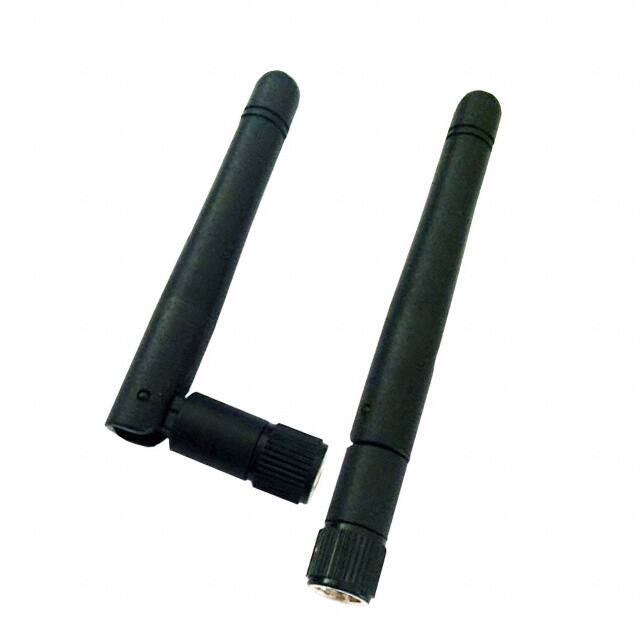

APAMS-121RF ANT 2.45GHZ/5.5GHZ WHIP TILT |
1,489 | - |
|
Datasheet | APAMS | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Whip, Tilt | 2 | 2.5 | - | 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.386" (86.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
