RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APAMP-123RF ANT 1.575GHZ MOD SMA MALE MAG |
409 | - |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 5dBic | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.594" (15.10mm) | GPS |
|
PRO-EX-286RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
147 | - |
|
Datasheet | External Antenna | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2 | - | 3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.213" (107.00mm) | WLAN |
|
APAMPG-117RF ANT 1.575GHZ/1.602GHZ MODULE |
663 | - |
|
Datasheet | APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | Module | 2 | 1.5 | - | 5dBi | - | Cable - 4m, LNA | SMA Male | - | - | - | Adhesive | 0.571" (14.50mm) | GLONASS, GPS |
|
AECW0401G4ZS-3000SRF ANT 1561/1575/1602MHZ DOME |
101 | - |
|
Datasheet | AECW | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.561GHz ~ 1.602GHz | Puck | 1 | 1.5, 2 | - | 2dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Panel | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

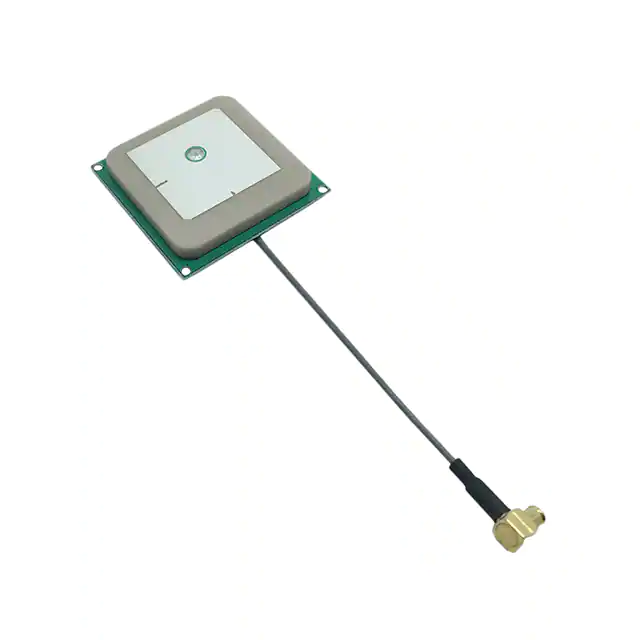

ARRKP4065-S915ARF ANT 915MHZ CER PATCH IPEX |
685 | - |
|
Datasheet | ARRKP | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | 2 | - | 1.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | General Purpose |
|
AEACBK081014-S6984G/ LTE SCREW MOUNT ANTENNA |
293 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Dome | 2 | 3 | - | 3dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Screw Mount | 0.575" (14.60mm) | 2G, 3G, 4G, LTE |
|
APAES915R80C16-TRF ANT 915MHZ CER PATCH PIN ADH |
335 | - |
|
Datasheet | APAE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | 1.3 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | - |
|
APARC2511X-SGL2L5ANTENNA ACTIVE GNSS STACKED PATC |
248 | - |
|
Datasheet | APAR | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.2276GHz, 1.575GHz | 1.166GHz ~ 1.186GHz, 1.2286GHz ~ 1.2266GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 3 | 2 | - | -4dBi, -3dBi, -3.5dBi | - | Cable - 100mm, LNA | I-PEX | - | - | - | Surface Mount | 0.488" (12.40mm) | General Purpose |
|
ACAG0301-2450-TRF ANT 2.4GHZ CHIP SOLDER SMD |
2,724 | - |
|
Datasheet | ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 5.19dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ACAR0301-SW2LOW PROF DUAL BAND WIFI CHIP ANT |
4,470 | - |
|
Datasheet | ACAR | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4875GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz | Chip | 2 | 2 | -10.04dB, -10.18dB, -10.19dB, -13.79dB, -15.71dB, -18.27dB | 1dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, ISM, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
