RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1204F002R0433ARF ANT 433MHZ CHIP SOLDER SMD |
14,593 | - |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 419MHz ~ 447MHz | Chip | 1 | - | -6.5dB | 0.79dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | - |
|
W3008RF ANT 2.4GHZ CHIP SOLDER SMD |
10,197 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -8dB | 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth |
|
|
W3008CRF ANT 2.4GHZ CHIP SOLDER SMD |
6,605 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -8dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WLAN, Zigbee™ |
|
ANTX100P011B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
3,169 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

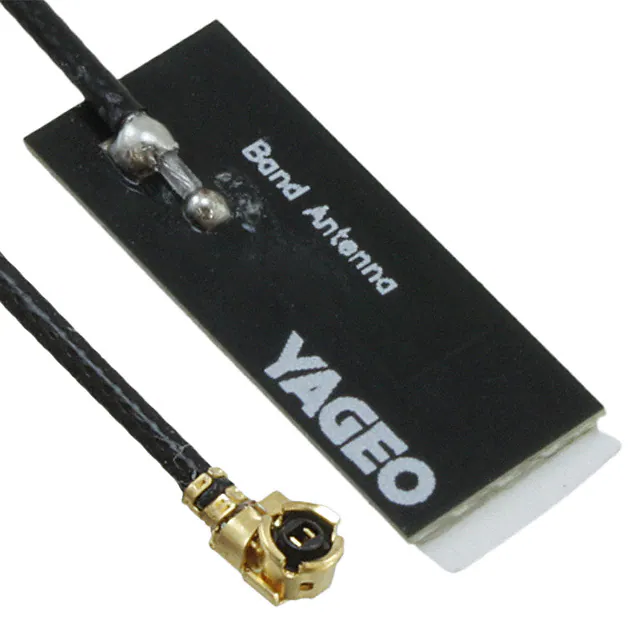

ANTX200P001B24003RF ANT 2.4GHZ FLAT PATCH IPEX |
2,569 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 4.4dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|
ANTX100P001B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
4,739 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 4.4dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3113RF ANT 900MHZ HELICAL SOLDER SMD |
756 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | - |
|
W3126RF ANT 315MHZ HELICAL SOLDER SMD |
2,403 | - |
|
Datasheet | - | Tray | Active | - | UHF (300MHz ~ 1GHz) | 315MHz | - | Helical | 1 | - | -10dB | -5dBi | - | - | Solder | - | - | - | Surface Mount | 0.276" (7.00mm) | - |
|
W3127RF ANT 433MHZ HELICAL SLD TH |
1,804 | - |
|
Datasheet | - | Tray | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 435MHz | Helical | 1 | - | -15dB | -2.9dBi | - | - | Solder | - | - | - | Through Hole | 0.276" (7.00mm) | - |
|
W3070RF ANT 900MHZ/1.8GHZ CHIP SLD |
5,552 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | - | -3.8dB, -4dB | 1.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GSM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
