RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
ANT1204LL20R0433A RF ANT 433MHZ CHIP SOLDER SMD Pulse Electronics	1,936	-	RFQ	Datasheet	1204	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	433MHz	-	Chip	1	-	6.5dB	0.83dBi	1 W	-	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	ISM
ANTX100P001B24553 RF ANT 2.4GHZ/5.5GHZ FLAT PATCH Pulse Electronics	4,605	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz	Flat Patch	2	2.5	-	4.6dBi, 3.9dBi	1 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.037" (0.95mm)	Bluetooth, WLAN, Zigbee™
W3006 RF ANT 2.4GHZ/5.5GHZ CHIP SLD Pulse Electronics	24,191	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	802.15.4, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.5GHz	2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz	Chip	2	-	-8dB, -10dB	3.2dBi, 4.2dBi	-	-	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	WLAN, Zigbee™
W3796 RF ANT 829MHZ/1.575GHZ FLAT BAR Pulse Electronics	10,216	-	RFQ	Datasheet	Domino	Tape & Reel (TR)	Active	Cellular, Navigation	Wide Band	829MHz, 1.575GHz, 1.9GHz, 2.5GHz	698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz	Flat Bar	4	3	-6dB	1.5dBi, 2dBi, 5.5dBi, 5dBi	5 W	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	GPS, LTE
W3921B0100 RF ANT 2.4GHZ FLAT PATCH CAB ADH Pulse Electronics	1,232	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Flat Patch	1	2	-	1dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, Wi-Fi, Zigbee™

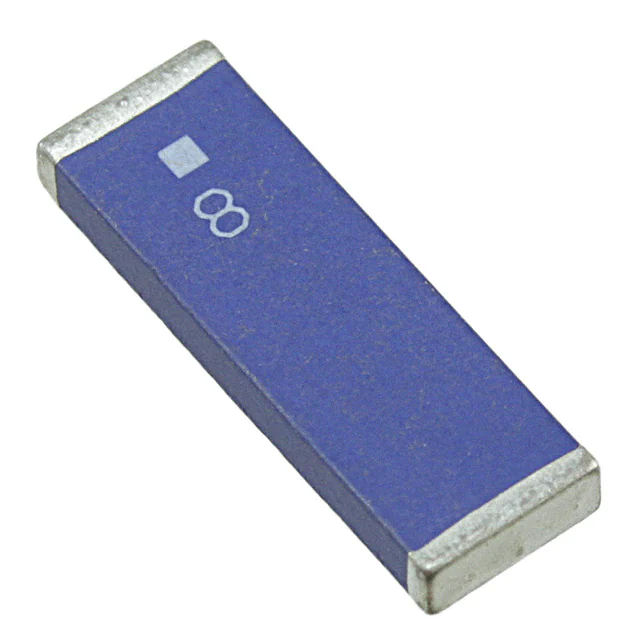

ANT1204LL05R0915A RF ANT 915MHZ CHIP SOLDER SMD Pulse Electronics	25,860	-	RFQ	Datasheet	1204	Tape & Reel (TR)	Active	802.15.4	UHF (300MHz ~ 1GHz)	915MHz	905MHz ~ 925MHz	Chip	1	2	-13.35dB	3.32dBi	1 W	-	Solder	-	-	-	Surface Mount	0.063" (1.60mm)	ZigBee™

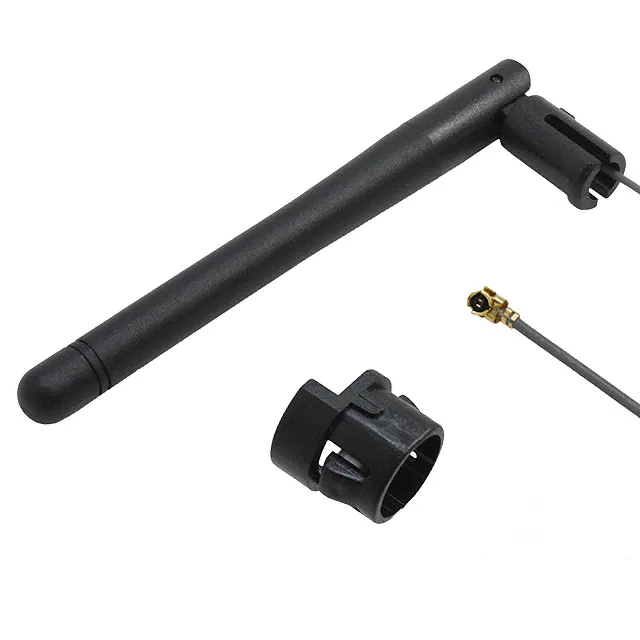

W1049B050 RF ANT 2.4GHZ WHIP/TILT CONN MT Pulse Electronics	408	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Whip, Tilt	1	-	-	2dBi	-	Cable - 127mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Connector Mount	3.248" (82.50mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
W1039B030 ANT EXT 2.4-2.5GHZ 76MM U.FL Pulse Electronics	4,268	-	RFQ	Datasheet	Stick Antenna	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz	Whip, Tilt	2	2	-	1dBi, 2dBi	2 W	Cable - 76mm	U.FL (UMCC), I-PEX MHF1	IP20	-	-	Connector Mount	7.138" (181.30mm)	Bluetooth, Wi-Fi, Zigbee™
ANTX100P001BWPEN3 RF ANT 850MHZ/900MHZ FLAT PATCH Pulse Electronics	8,547	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	Wide Band	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	-	Flat Patch	5	3	-	4.2dBi, 5.1dBi, 3.9dBi, 5dBi, 4.5dBi	1 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.037" (0.95mm)	Bluetooth, Wi-Fi, Zigbee™
W3908B0100 RF ANT 1.585GHZ FLAT PATCH ADH Pulse Electronics	5,797	-	RFQ	Datasheet	GEMINI	Bulk	Active	Navigation	UHF (1GHz ~ 2GHz)	1.585GHz	1.56GHz ~ 1.61GHz	Flat Patch	1	-	-10dB	0.3dBi	3 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	-	Beidou, Galileo, GLONASS, GPS

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
