RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YA6900WANT YAGI 890-960MHZ 8DBI N-FEM |
2,012 | - |
|
Datasheet | Yagi | Box | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 890MHz ~ 960MHz | Directional Antenna | 1 | 2 | - | 8.8dBi | 300 W | - | N Type Female | - | - | - | Pole Clamp | 17.520" (445.00mm) | General Purpose |
|
ARM42111DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
4,704 | - |
|
Datasheet | ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 4 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (1) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|

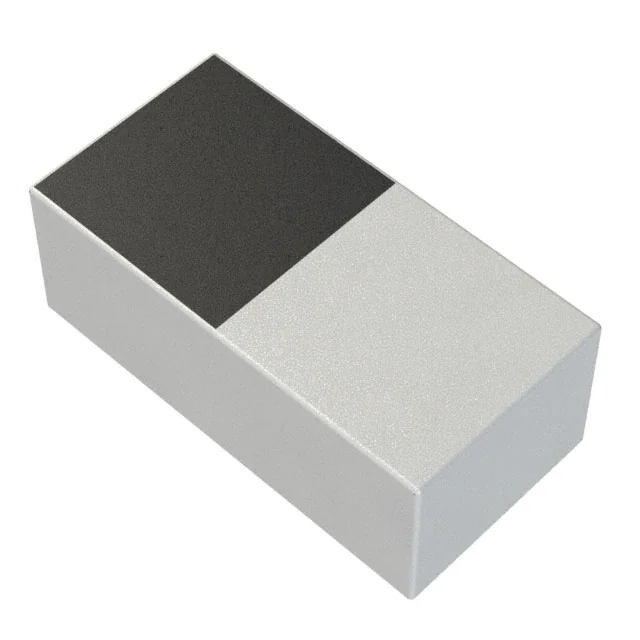

ANT1005LL14R2400ARF ANT 2.442GHZ CHIP SOLDER SMD |
40,360 | - |
|
Datasheet | 1005 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 3 | - | 2.21dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.015" (0.37mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT2012LL13R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
17,098 | - |
|
Datasheet | 2012 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -22dB | 2.72dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

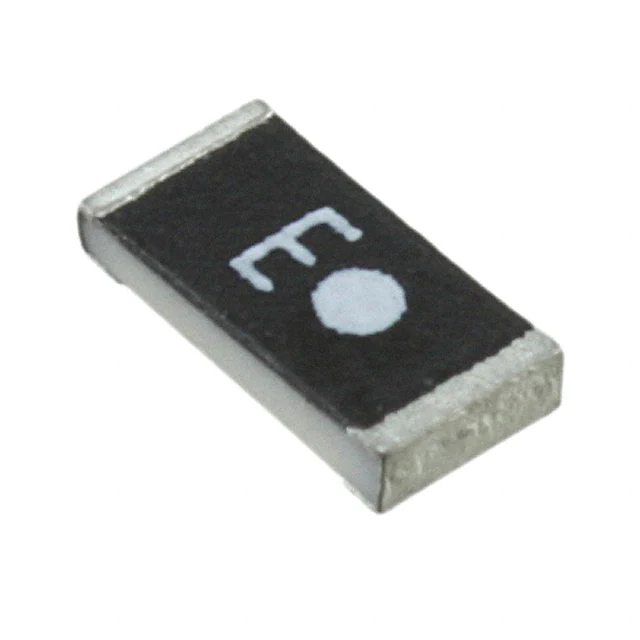

ANT3216A063R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
11,408 | - |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.335GHz ~ 2.565GHz | Chip | 1 | - | -10dB | 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, WLAN, Zigbee™ |
|

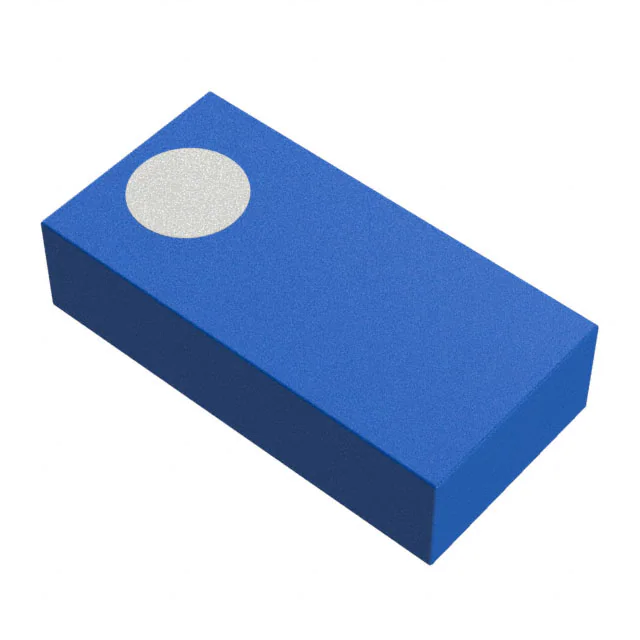

ANT1608LL14R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
22,206 | - |
|
Datasheet | 1608 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 6 | - | 2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANT8010LL05R1516ARF ANT 1.575GHZ/1.602GHZ CHIP |
8,768 | - |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 2 | - | 10dB | 1.53dBi, 1.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Galileo, GLONASS, GPS |
|
ANT8010LL04R2400ARF ANT 2.4GHZ CHIP SOLDER SMD |
16,465 | - |
|
Datasheet | 8010 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -24.9dB | 5.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT5320LL45R2400AANTENNA CHIP 2.4G HELIX |
14,149 | - |
|
Datasheet | 5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 5.22dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

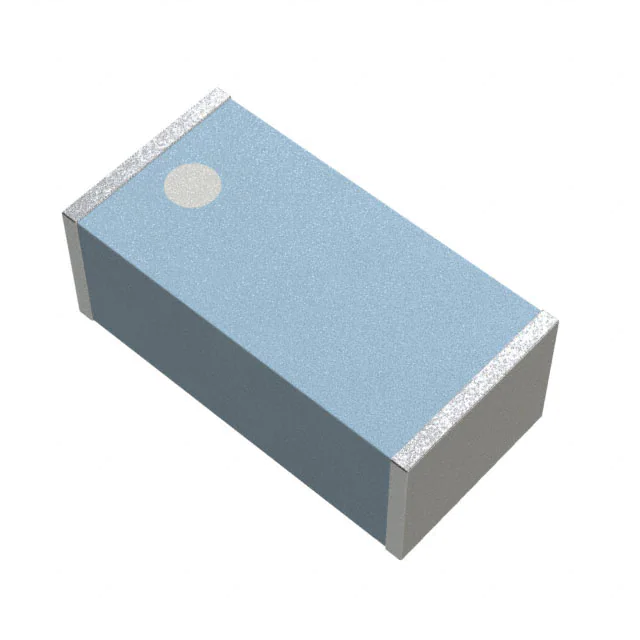

ANT3216LL00R2400ARF ANT 2.45GHZ CHIP SOLDER SMD |
34,792 | - |
|
Datasheet | 3216 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | - | 5.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
