RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
ANTX100P111B24553 RF ANT 2.45/5.5125GHZ FLAT PATCH Pulse Electronics	1,993	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5125GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz	Flat Patch	2	2.5	-	3.2dBi, 3.4dBi	1 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.022" (0.55mm)	Bluetooth, Wi-Fi, Zigbee™
W1095 ANT EXT 2.4-2.5GHZ SMA IP65 Pulse Electronics	1,215	-	RFQ	Datasheet	External Stubby	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.45GHz	2.4GHz ~ 2.5GHz	Whip, Straight	1	2.5	-	1dBi	-	-	SMA Male	IP67	-	-	Connector Mount	1.996" (50.69mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
ANT2525B00BT1516S RF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics	530	-	RFQ	Datasheet	2525	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.575GHz ~ 1.606GHz	Ceramic Patch	2	2	-32.828dB, -31.357dB	4.72dBi, 4.51dBi	-	-	Solder	-	-	-	Surface Mount	0.157" (4.00mm)	GLONASS, GPS
W3100C ANT HELICAL COIL 915MHZ Pulse Electronics	9,689	-	RFQ	Datasheet	Helix Coil	Tray	Active	General ISM	UHF (300MHz ~ 1GHz)	915MHz	-	Helical	1	2	-	-0.5dBi	2 W	-	Solder	-	-	-	Solder	0.386" (9.80mm)	ISM
W3334B0150 RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics	457	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz	Flat Patch	2	2	-	5.5dBi	3 W	-	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, WLAN, Zigbee™

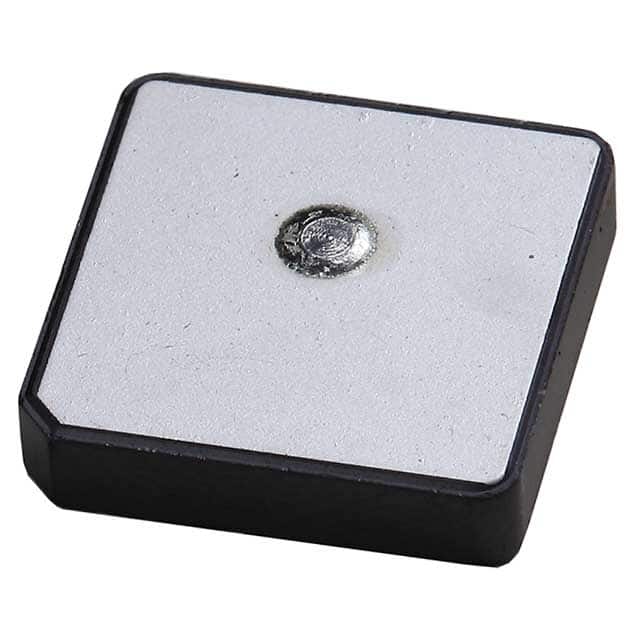

ANT1818B00DT1516S RF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics	2,611	-	RFQ	Datasheet	1818	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.575GHz ~ 1.606GHz	Ceramic Patch	2	2	-26.080dB, -26.781dB	2.65dBi, 2.79dBi	-	-	Pin	-	-	-	Adhesive	0.157" (4.00mm)	GLONASS, GPS
W3544B RF ANT 850MHZ/900MHZ CHIP SLD Pulse Electronics	4,767	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Cellular	Wide Band	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Chip	5	-	-6.5dB, -5.7dB, -18.5dB, -13dB	-1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi	-	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	GSM
W3918B0100 RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics	691	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	Wide Band	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz	Flat Patch	2	2	-	4dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.006" (0.15mm)	Bluetooth, Wi-Fi, Zigbee™
W1049B030 RF ANT 2.4GHZ WHIP/TILT CONN MT Pulse Electronics	241	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Whip, Tilt	1	-	-	2dBi	-	Cable - 76mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Connector Mount	3.248" (82.50mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
W3538B0200 RF ANT 850MHZ/900MHZ PCB TRACE Pulse Electronics	858	-	RFQ	Datasheet	-	Bulk	Active	Cellular	Wide Band	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	PCB Trace	5	-	-6dB	2.8dBi, 5.8dBi, 6.3dBi	-	Cable - 200mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Surface Mount	0.028" (0.70mm)	GSM, WCDMA

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
