RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

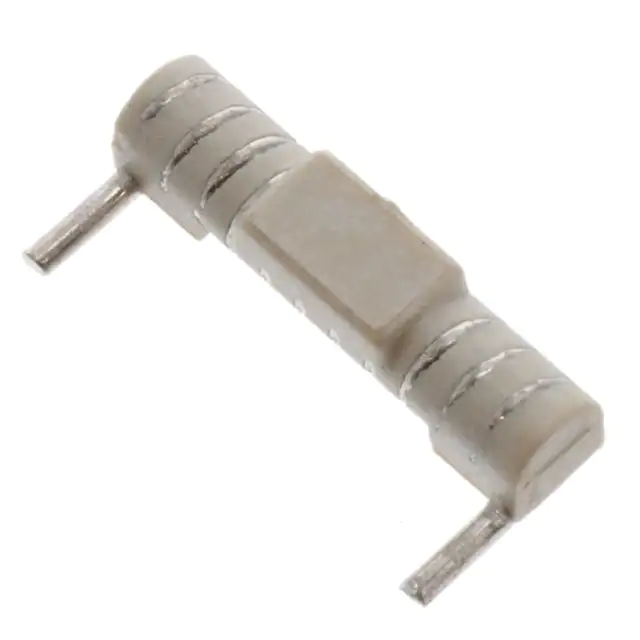

W3139ANTENNA HELIX SMT ISM868/915 |
3,229 | - |
|
Datasheet | SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | - | -8dB, -10dB | -0.5dBi, -1dBi, -2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM |
|
ANT1818B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH |
2,524 | - |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -17.801dB, -17.008dB | 1.89dBi, 2.59dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
BTPA0061204G0C4A04ANTENNA FPC 698-2700MHZ |
370 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 100mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
|
W3334B0100FPC ANTENNA 2.4/5.XGHZ/DSRC |
1,411 | - |
|
Datasheet | Internal Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2, 2.5 | - | 4dBi, 5.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

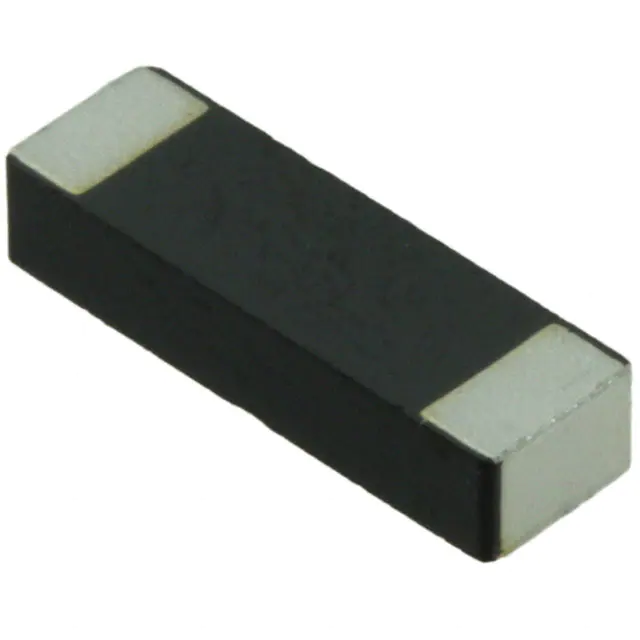

W3010RF ANT 1.575GHZ CHIP SOLDER SMD |
42,461 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -18dB | 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

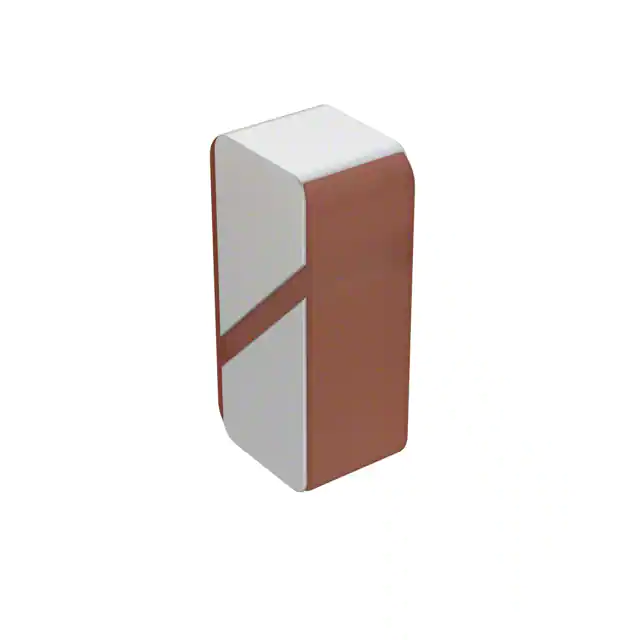

W3011ARF ANT 1.575GHZ CHIP SOLDER SMD |
27,509 | - |
|
Datasheet | Ceramic Chip Antenna | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Chip | 3 | - | -7dB, -10dB, -10dB | 1.3dBi, 2dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
W3011RF ANT 1.575GHZ CHIP SOLDER SMD |
8,594 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | -12dB | 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | GPS |
|
ANTX100P111B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,060 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 3.3dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

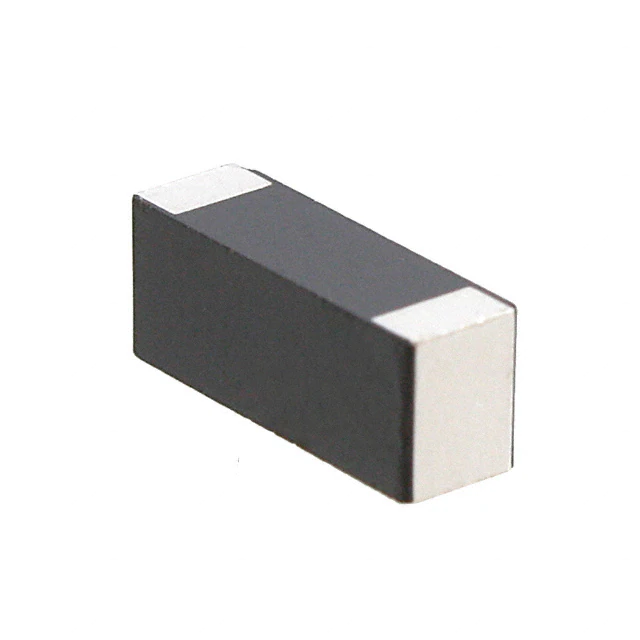

W3013RF ANT 868MHZ CHIP SOLDER SMD |
6,619 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | Chip | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|

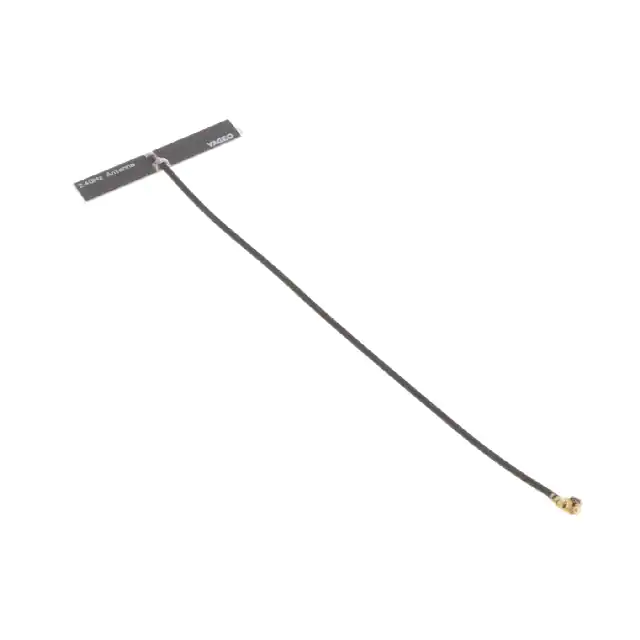

ANTX100P113B24003RF ANT 2.45GHZ PCB TRACE CAB ADH |
2,866 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2.5 | - | 2.8dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
