RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3229RF ANT 2.45GHZ CER PATCH PIN ADH |
13,312 | - |
|
Datasheet | Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -7dB | 6.5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|
W3525B100RF ANT 2.4GHZ PCB TRACE CAB SMD |
895 | - |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 254mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|

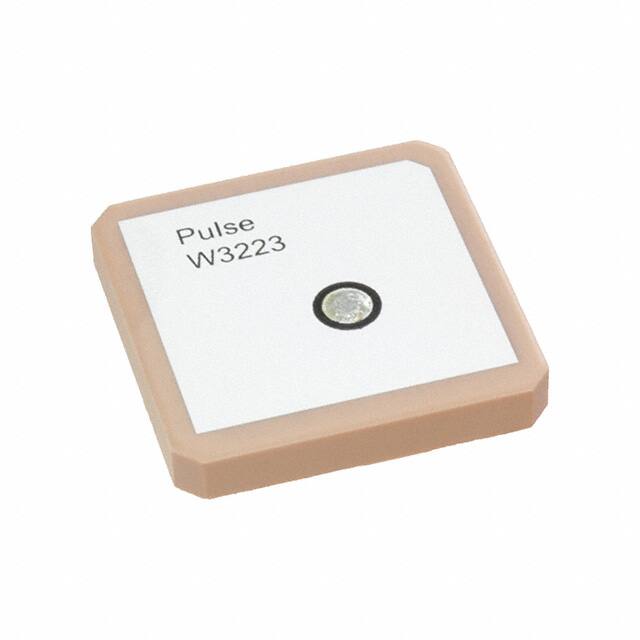

W322325X25X4MM GPS/GLONASSPIN MOUNT |
700 | - |
|
Datasheet | Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT4005B000RWHEXSRF ANT 829MHZ/2.2GHZ CHIP SLD |
1,800 | - |
|
Datasheet | 4005 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3.2dBi, 4dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | General Purpose |
|
|
W3525B039RF ANT 2.4GHZ PCB TRACE CAB SMD |
377 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|
W1095KANT EXT 2.4-2.5GHZ RA SMA IP65 |
1,427 | - |
|
Datasheet | External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3907B0127LTE DIVERSITY FPC ANTENNA |
652 | - |
|
Datasheet | GEMINI | Bag | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 2.9dBi, 1.7dBi, 1.8dBi, 3.4dBi, 3.8dBi, 4.2dBi | 3 W | Cable - 127mm | I-PEX MHF | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
W3340ANTENNA 6.0-8.5 GHZ UWB |
3,025 | - |
|
Datasheet | Chip Antenna | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Chip | 1 | - | 9dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|
W1910RF ANT 850MHZ/900MHZ WHIP STR |
1,273 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|
W3554B0293ANTENNA ASSEMBLY 6GHZ 293MM U.FL |
2,349 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 293mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
