RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

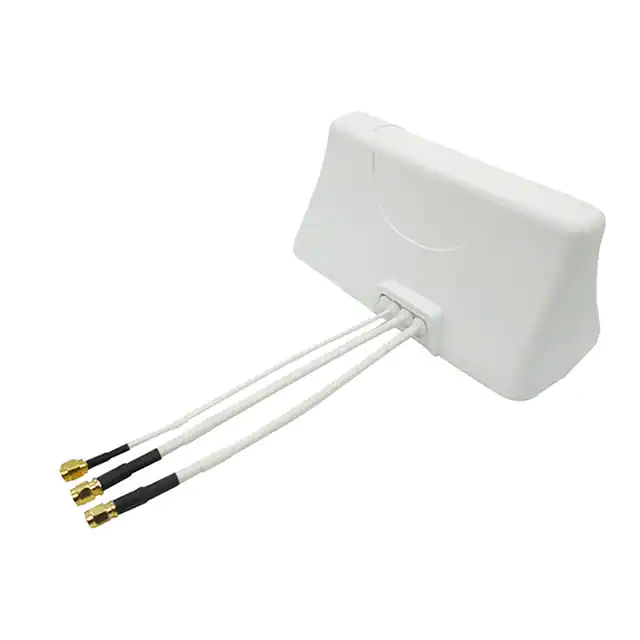

RAZ32012MMRF ANT 802MHZ/1.582GHZ MOD MAGNT |
2,292 | - |
|
Datasheet | RAZORBACK | Bulk | Active | Cellular, Navigation | Wide Band | 802MHz, 1.582GHz, 2.2GHz | 644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz | Module | 3 | 2 | - | 4.6dBi, 4.9dBi, 6dBi, 6.6dBi | 45 W | Cable - 5.18m, LNA | SMA Male (3) | IP67 | - | - | Magnetic | 3.727" (94.67mm) | GPS, LTE |
|
ARM62311DMRF ANT 829MHZ/1.582GHZ MOD PANEL |
3,977 | - |
|
Datasheet | ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 6 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (3) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
ARM5G62312DMANT VHCL MULTIBAND W/DIRECT WHT |
2,840 | - |
|
Datasheet | ARMADILLO | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 5.537GHz | 617MHz, 1.559GHz, 1.574GHz, 1.598GHz, 1.71GHz, 2.4GHz, 5.15GHz | Module | 7 | 2, 2.2, 2.5 | - | 2.2dBi, 5.4dBi, 4.6dBi, 6.3dBi | - | Cable - 5.18M, LNA | RP-SMA Male (3), SMA Male (3) | IP67 | - | - | Surface Mount | 1.772" (45.00mm) | 4G, 5G, BeiDou, GLONASS, GNSS, GPS, LTE |
|

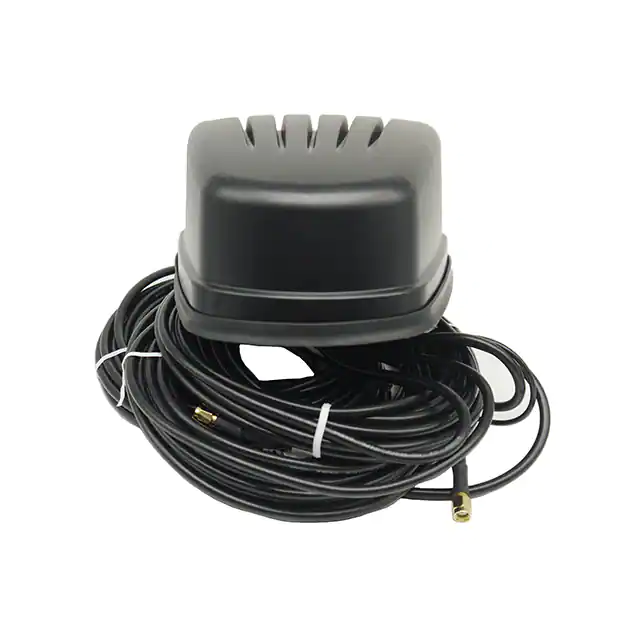

GPSMB401RF ANT MODULE RP-SMA MALE PAN MT |
3,180 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 6 | 1.5 | - | 5dBi | - | LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.992" (76.00mm) | GPS, LTE, Wi-Fi |
|

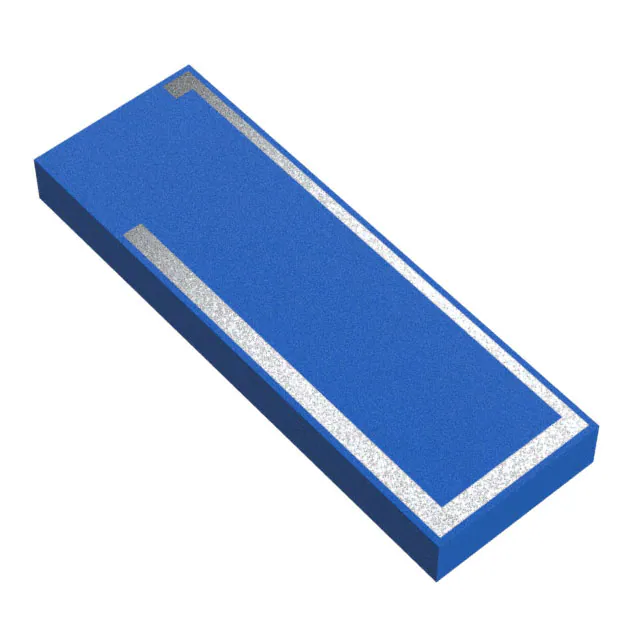

ANT1204LL16R0870ARF ANT 870MHZ CHIP SOLDER SMD |
1,000 | - |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 870MHz | - | Chip | 1 | - | 6.49dB | 1.05dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | ISM |
|

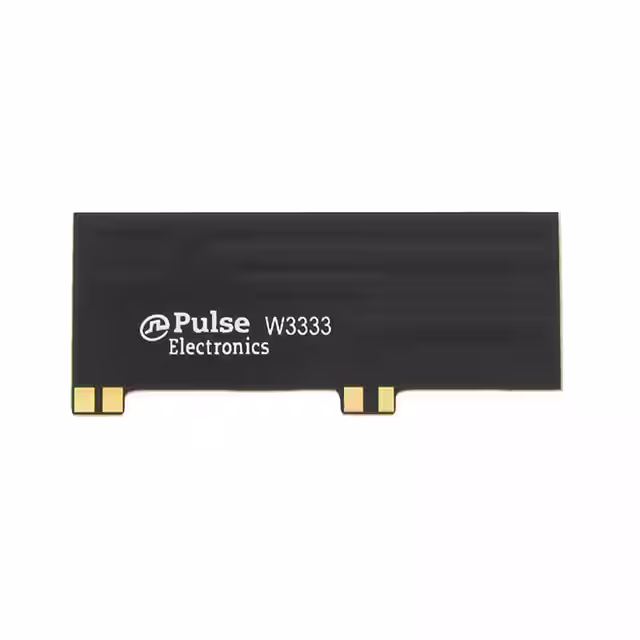

W3333RF ANT 895MHZ/2.4GHZ PCB TRACE |
324 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 895MHz, 2.4GHz | 863MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | PCB Trace | 2 | - | -15dB | 4dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | Bluetooth, WLAN, Zigbee™ |
|
|
W6108B0100ANT MIMO WIFI 6E FPC 100MM 4X4 |
1,269 | - |
|
Datasheet | - | Bag | Active | WiFi | Wide Band | 2.44GHz, 6.15GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 7.15GHz | Flat Patch | 2 | - | 7dB | 3.7dBi, 7.4dBi | 1 W | Cable - 100mm | U.FL | - | - | - | Adhesive | - | Wi-Fi |
|
GPSMOD2533RF ANT 1.575GHZ CER PATCH SLD |
2,932 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 1dB | - | LNA | Solder | - | - | - | Surface Mount | - | GPS |
|
|
BT25B0150ANTENNA 2.4GHZ PATCH I-PEX MHF |
1,191 | - |
|
Datasheet | - | Box | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -6dB | 3.5dBic | - | Cable - 150.114mm | I-PEX MHF | - | - | - | Adhesive | 0.260" (6.60mm) | Bluetooth, ISM, Wi-Fi |
|
|
SB617-7125G0400STEALTH BLADE |
100 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 788.5MHz, 2.205GHz, 3.75GHz, 4.7GHz, 6.137GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 7.125GHz | Flat Bar | 5 | - | -6dB | 3.5dBi, 5.5dBi, 6.5dBi, 5.2dBi, 3dBi | 3 W | Cable - 400mm | SMA Male | IP67 | - | - | Connector Mount | 0.080" (2.03mm) | 4G, 5G, IoT, LTE, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
