RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KD4VHF2ANT VHF HELICAL SPEC FREQ 142- |
3,803 | - |
|
Datasheet | - | Bag | Active | Cellular | VHF (f < 300MHz) | 145.5MHz | 142MHz ~ 149MHz | Helical | 1 | 2 | -10dB | - | - | - | BNC Male | - | - | - | Connector Mount | 8.000" (203.20mm) | DCS, ISM, GSM, PCS |
|

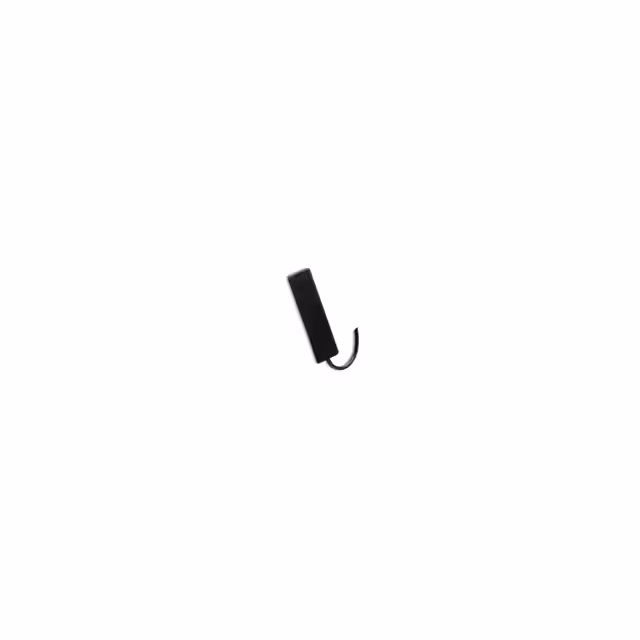

SB240012STEALTH BLADE, UNITY / 2.14 DBI, |
1,230 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | - | - | 2.14dBi | 3 W | - | - | - | - | - | Connector Mount | 3.000" (76.20mm) | 4G, LTE |
|
|
KD4VHF3ANT VHF HELICAL SPEC FREQ 150- |
4,939 | - |
|
Datasheet | - | Bag | Active | Cellular | VHF (f < 300MHz) | 155.5MHz | 150MHz ~ 161MHz | Helical | 1 | 2 | -10dB | - | - | - | BNC Male | - | - | - | Connector Mount | 8.000" (203.20mm) | DCS, ISM, GSM, PCS |
|
|
SB8003ANT STEALTH BLD 806-896 MHZ 3FT |
3,510 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Flat Bar | 1 | - | - | 2.14dBi | 3 W | Cable - 76.2mm | - | - | - | - | Adhesive | - | - |
|
|
SPHL17FTANT SP HELICAL 1-4 WAVE TUNABL |
2,756 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 178.5MHz | 136MHz ~ 221MHz | Helical | 1 | - | - | - | - | - | TN | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|
|
R380500109ANT DIPOLE DROIT SMA 2 4GHZ |
3,524 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 2dBi | - | - | - | - | - | - | Connector Mount | 3.500" (88.90mm) | 4G, LTE |
|
|
SB90012ANT STEALTH BLD 890-960 MHZ 12FT |
2,531 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Flat Bar | 1 | - | - | 2.14dBi | 3 W | Cable - 304.8mm | - | - | - | - | Adhesive | - | - |
|
|
W1978RF ANT 829MHZ/1.94GHZ DOME PANEL |
2,498 | - |
|
Datasheet | LPT Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2, 2.5 | - | 1.4dBi, 2.7dBi, 3.5dBi | 10 W | Cable - 700mm | U.FL (UMCC), I-PEX MHF1 | IP67 | - | - | Panel Mount | 3.039" (77.20mm) | General Purpose |
|
|
SPHL20FTANT SP HELIC 1-4W TUNABLE SMA |
3,897 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 178.5MHz | 136MHz ~ 221MHz | Helical | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 8.000" (203.20mm) | - |
|
|
SB24003ANT STEALTH BLADE 2.4-2.5 |
1,927 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Blade | 1 | - | - | 2.14dBi | 3 W | Cable - 76.2mm | - | - | - | - | Adhesive | - | 4G, LTE |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
