RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
SZK-C-1W09-100-01 2.4GHz, 5GHz, 6GHz 802.11ax, 802 Synzen	1,930	-	RFQ	Datasheet	WOLF	Bulk	Active	Bluetooth, WiFi	Wide Band	2.4GHz, 5GHz, 6GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	1.8, 2.2, 2.6	-10dB, -8.5dB, -7dB	1.85dBi, 5.5dBi, 3.4dBi	3 W	Cable - 100mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
SZP-C-2L14 5G ANT 617-5000MHZ SMD CHIP Synzen	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Cellular	Wide Band	788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz	617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz	Chip	6	-	-	1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi	5 W	-	Solder	-	-	-	Surface Mount	0.130" (3.30mm)	2G, 3G, 4G, 5G, LTE
SZC-N-0G07 RF ANT 1.575/1.602GHZ CER PATCH Synzen	4,064	-	RFQ	Datasheet	ARIETISb	Bag	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz	Ceramic Patch	1	2.35, 2.9	-10dB	2.5dBi, 2dBi	-	-	Solder	-	-	-	Surface Mount	0.157" (4.00mm)	Galileo, GLONASS, GNSS, GPS
SZK-C-1L14 5G ANT FLAT PATCH IPEX Synzen	100	-	RFQ	Datasheet	ARCTURUS	Bag	Active	Cellular	Wide Band	788.5MHz, 1.5435GHz, 1.955GHz, 2.35GHz	617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz	PCB Trace	4	1.3, 2.3, 4, 5.9	-3dB, -4.4dB, -8dB, -17dB	2.8dBi, 1.2dBi, 2.9dBi, 3.2dBi	5 W	Cable - 180mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.008" (0.20mm)	2G, 3G, 4G, 5G
SZDV-C-0G01 CENTAURI GNSS Active EVK Synzen	3,416	-	RFQ	Datasheet	-	Bulk	Active	Navigation	UHF (1GHz ~ 2GHz)	1.5845GHz	1.559GHz ~ 1.61GHz	Chip	1	1.9	-	0.1dBi	-	LNA	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	Beidou, Galileo, GLONASS, GNSS, GPS
SZK-C-2G19-150-01 GNSS ANT FLAT PATCH IPEX Synzen	100	-	RFQ	Datasheet	MIMOSA	Retail Package	Active	Navigation	UHF (1GHz ~ 2GHz)	1.584GHz	1.559GHz ~ 1.609GHz	Flat Patch	1	2, 2	-10dB	2.79dBi	-	Cable - 150mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	Beidou, Galileo, GLONASS, GNSS, GPS
SZK-C-1W09-050-01 2.4GHz, 5GHz, 6GHz 802.11ax, 802 Synzen	2,791	-	RFQ	Datasheet	WOLF	Bulk	Active	Bluetooth, WiFi	Wide Band	2.4GHz, 5GHz, 6GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	1.8, 2.2, 2.6	-10dB, -8.5dB, -7dB	1.85dBi, 5.50dBi, 3.40dBi	3 W	Cable - 50mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
SZK-C-1W09-150-01 2.4GHz, 5GHz, 6GHz 802.11ax, 802 Synzen	1,720	-	RFQ	Datasheet	WOLF	-	Active	Bluetooth, WiFi	Wide Band	2.4GHz, 5GHz, 6GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	Flat Patch	3	1.8, 2.2, 2.6	-10dB, -8.5dB, -7dB	1.85dBi, 5.5dBi, 3.4dBi	3 W	Cable - 150mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E
SZK-C-0W07-150-01 RF ANT WIFI 6GHZ FLEX ADHES UFL Synzen	100	-	RFQ	Datasheet	WOLF	-	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.375GHz, 6.525GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz	PCB Trace	3	1.84, 2.2, 2.6	-7dB, -8.5dB, -10.1dB	1.85dBi, 5.5dBi, 3.4dBi	3 W	Cable - 150mm	IPEX MHF1, U.FL (UMCC)	-	-	-	Adhesive	0.008" (0.20mm)	802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E

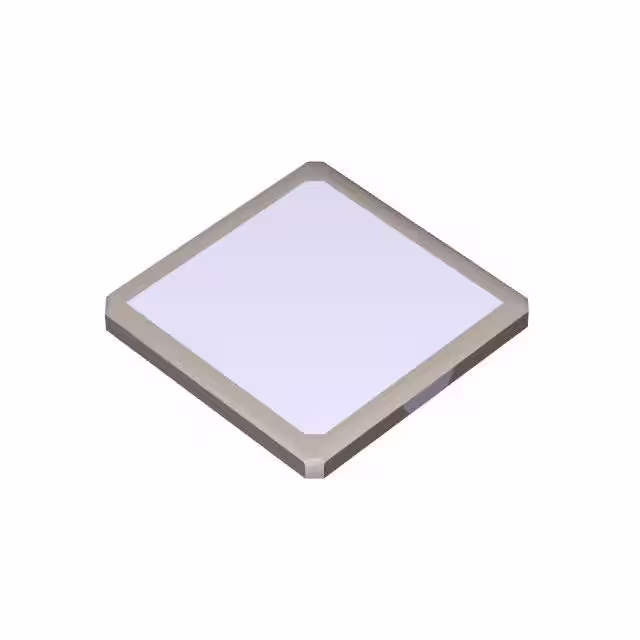

SZC-N-0G13 RF ANT 1.575/1.602GHZ CER PATCH Synzen	3,260	-	RFQ	Datasheet	POLARIS	Bag	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.572GHz ~ 1.578GHz, 1.597GHz ~ 1.607GHz	Ceramic Patch	1	1.3, 4.5	-15dB	4dBi, 2.2dBi	-	-	Solder	-	-	-	Surface Mount	0.079" (2.00mm)	Galileo, GLONASS, GNSS, GPS

WINSUN SOURCING SUPPORT

Need Help Sourcing RF Antennas?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about filtering, comparing and sourcing RF Antennas components.

How can I narrow the RF Antennas selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific RF Antennas part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
