RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UWC.01ACCURAUWB UWC.01 6-8GHZ ULTRA WI |
1,075 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | Chip | 3 | 2, 2.2, 2.7 | -8dB, -9dB, -10dB | 4.5dBi, 4.5dBi, 3.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | UWB |
|
FXUWB10.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
181 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4.5dBi, 6.2dBi, 7.1dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
PCS.06.MHAVOK MIRRORED LOW PROFILE LTE C |
500 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.472GHz, 1.955GHz, 2.45GHz, 2.59GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 5 | - | - | 0.5dBi, 1dBi, 3.4dBi, 2.6dBi, 2.9dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, LTE |
|
|
PCS.55.AWIDEBAND 5G PCB SMD ANTENNA |
9,256 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 657.5MHz, 722MHz, 773MHz, 840MHz, 920MHz, 1.472GHz, 1.581GHz, 1.932GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.56GHz ~ 1.602GHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Chip | 9 | - | - | -3.3dBi, 0.2dBi, -0.3dBi, -1dBi, -1.8dBi, 0.4dBi, 1.6dBi, 3.7dBi, 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 4G, 5G, BeiDou, Cat-M, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, NB-IoT, NR, WCDMA |
|
|
GW.40.21532DBI 2.4/5.0~5.8GHZ DIPOLE ANT |
123 | - |
|
Datasheet | - | Bag | Active | Bluetooth | Wide Band | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Right Angle | 2 | - | - | 3.15dBi, 4.39dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 4.287" (108.90mm) | Bluetooth, WLAN |
|

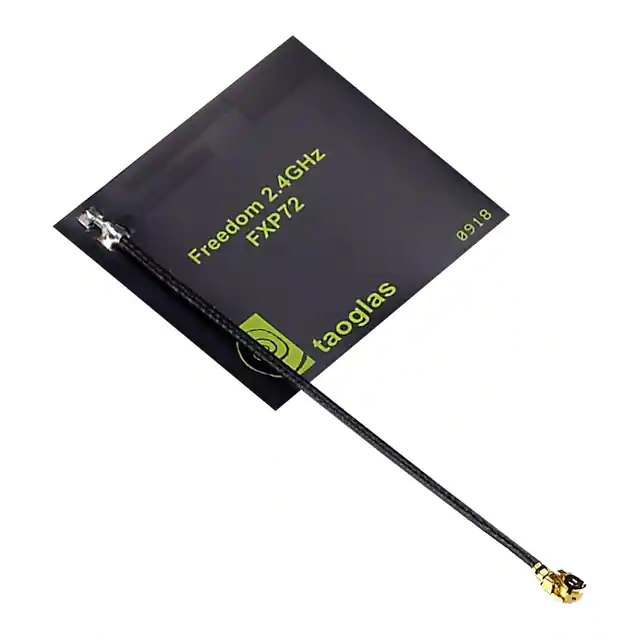

FXP72.07.0053ARF ANT 2.4GHZ FLAT PATCH IPEX |
9,588 | - |
|
Datasheet | Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | - | 5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.003" (0.08mm) | Bluetooth, WLAN, Zigbee™ |
|
UWC.20ACCURAUWB UWC.20 3-5GHZ & 6-9GHZ |
3,175 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 8.5GHz | 3.1GHz ~ 5GHz, 6.2GHz ~ 8GHz, 8GHz ~ 9GHz | Chip | 3 | 2, 3 | -6dB, -10dB | 6dBi, 3.5dBi, 2.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | UWB |
|

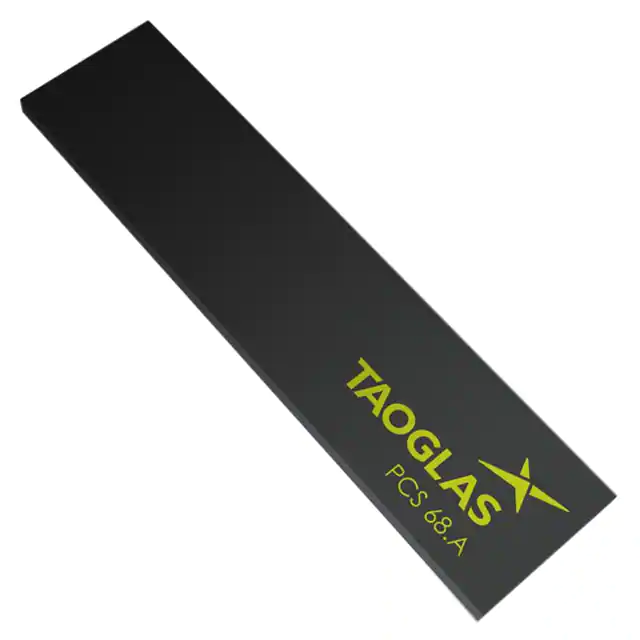

PCS.68.ARF ANT 788.5MHZ PCB SMA FML SMD |
3,508 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5375GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3.5 | - | -1dBi, -2dBi, 3.8dBi, 2dBi, 4dBi, 4.5dBi, 4dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.059" (1.50mm) | 3G, 4G, LTE, Wi-Fi |
|

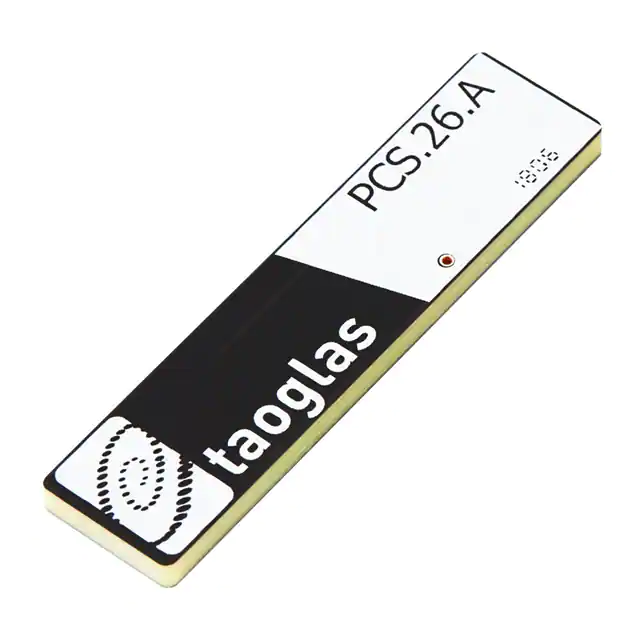

PCS.26.AHAVOK LOW PROFILE LTE/CELLULAR S |
1,255 | - |
|
Datasheet | Havok | Tape & Reel (TR) | Active | Cellular | Wide Band | 657.5MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 4.495GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Chip | 8 | - | -7dB, -7dB, -6dB | 6.67dBi, 2.54dBi, 3.53dBi, 3.75dBi, 4.85dBi, 3.99dBi, 4.26dBi, 3.86dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|

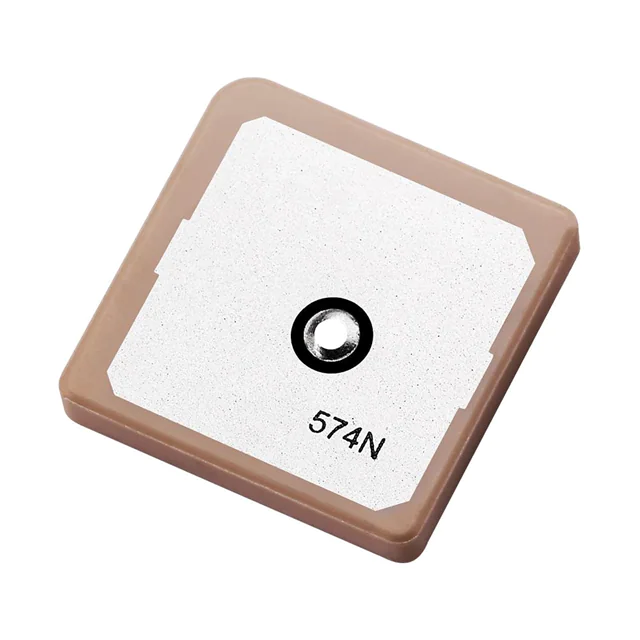

GP.1575.25.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
4,337 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Ceramic Patch | 1 | 1.2 | -10dB | 1.55dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
