RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

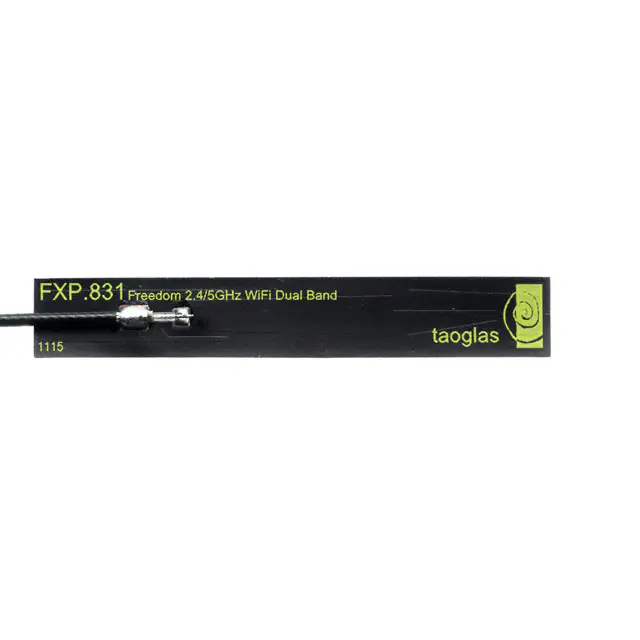

FXP831.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
391 | - |
|
Datasheet | Freedom | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 2.5 | - | 3dBi, 5.5dBi | 2 W | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN |
|
TG.31.81135G/4G TERMINAL MOUNT |
355 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.472GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.537GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 8 | - | - | -1.9dBi, 1.2dBi, 0.8dBi, -1.2dBi, 4.6dBi, 4.2dBi, 3.2dBi, 4.4dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 8.295" (210.70mm) | 2G, 3G, 4G, 5G, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
|

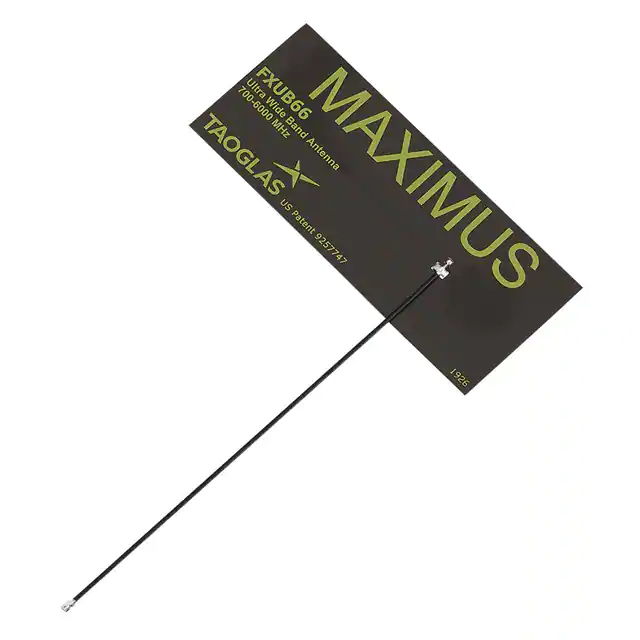

FXUB66.54.0150CMAXIMUS ULTRA WIDE BAND FLEX ANT |
213 | - |
|
Datasheet | Maximus | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz | Flat Patch | 9 | 1.1, 2, 2.2, 3, 3.5 | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
|

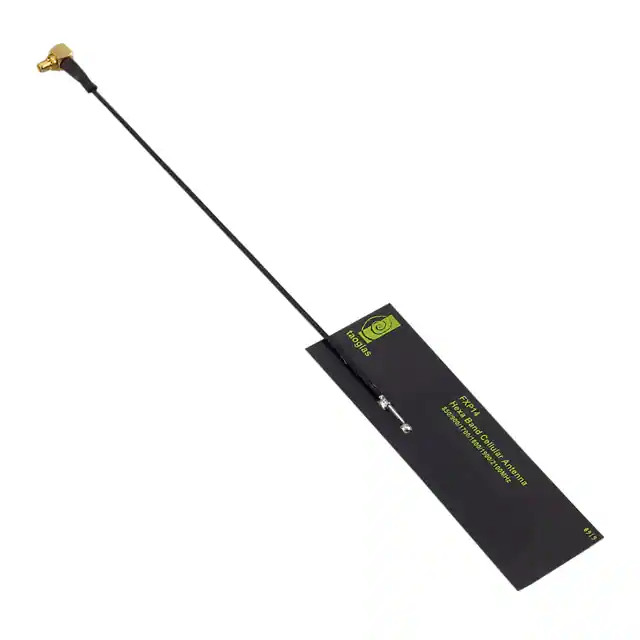

FXP14.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
152 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|

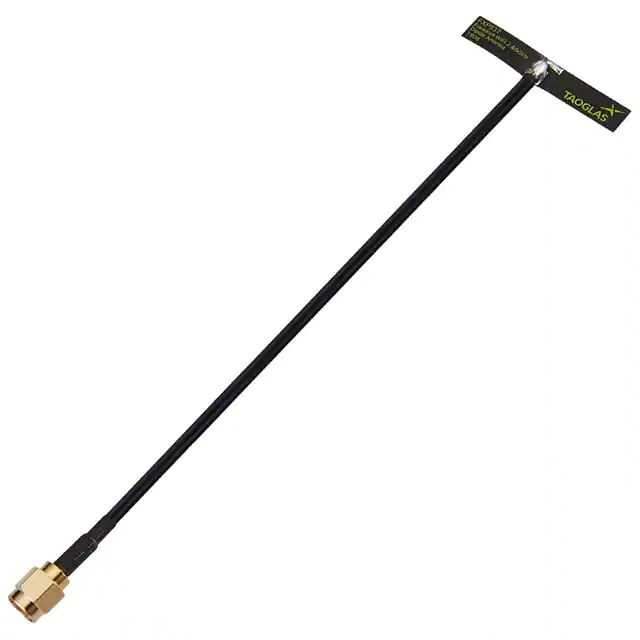

FXP832.03.0458DRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
3,339 | - |
|
Datasheet | Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | - | -10dB | 3.66dBi, 5.33dBi | 2 W | Cable - 458mm | RP-SMA Male | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™ |
|

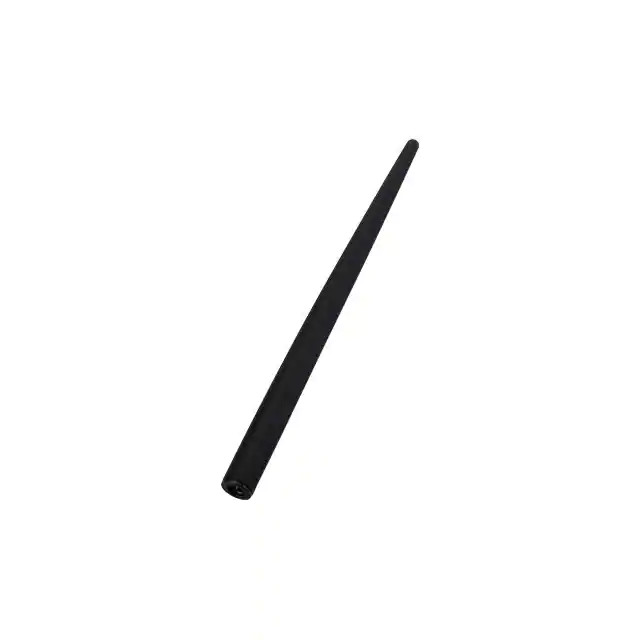

TI.09.A.0111RF ANT 915MHZ WHIP STR SMA MALE |
242 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.8 | - | 4dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | - |
|

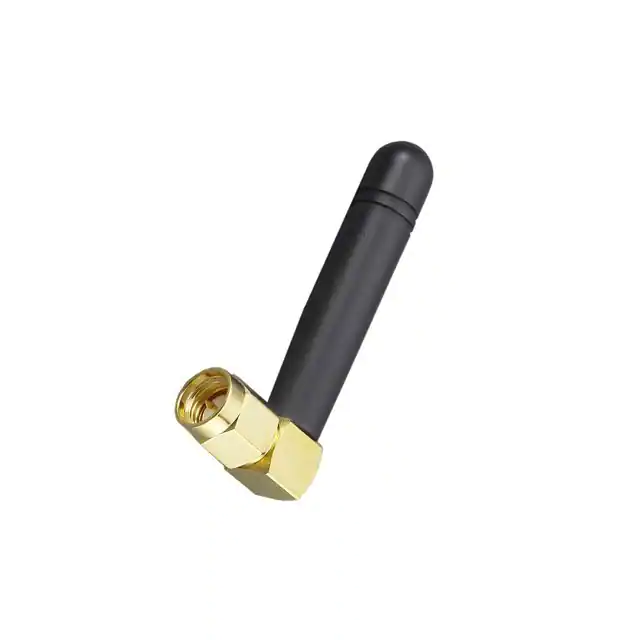

TI.10.0112RF ANT 433MHZ WHIP RA SMA MALE |
137 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Right Angle | 1 | 1.5 | -20dB | 0dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | - |
|

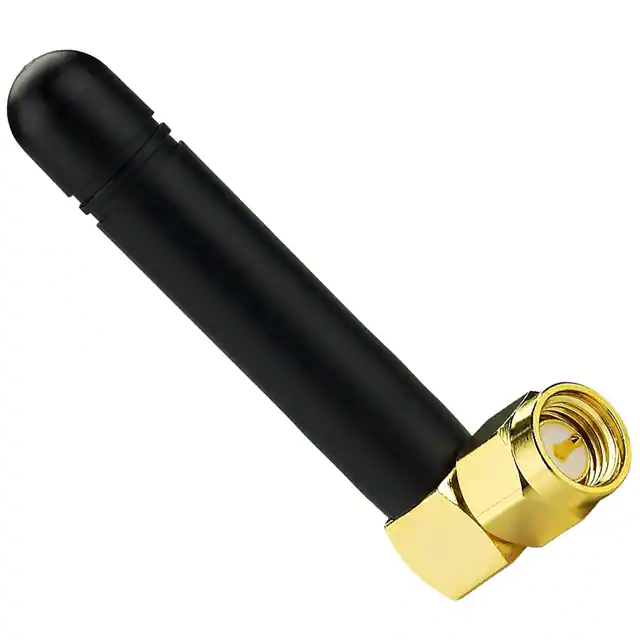

TG.22.0112RF ANT 850MHZ/900MHZ WHIP RA |
133 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 5 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMS, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS |
|
|
TI.42.A113433MHZ TERMINAL MOUNT ANTENNA WI |
115 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 417MHz, 460MHz | 400MHz ~ 435MHz, 450MHz ~ 470MHz | Whip, Right Angle | 2 | - | - | 3.7dBi, 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | General Purpose |
|

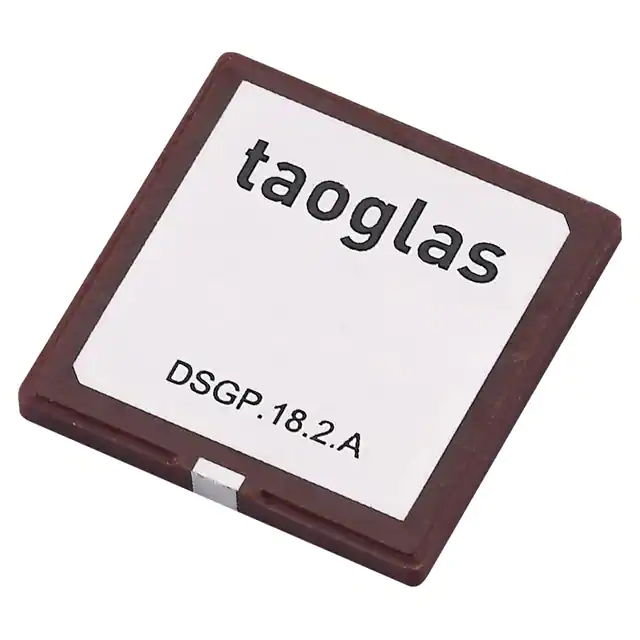

DSGP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH SLD |
252 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2:1 | -10dB | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
