RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

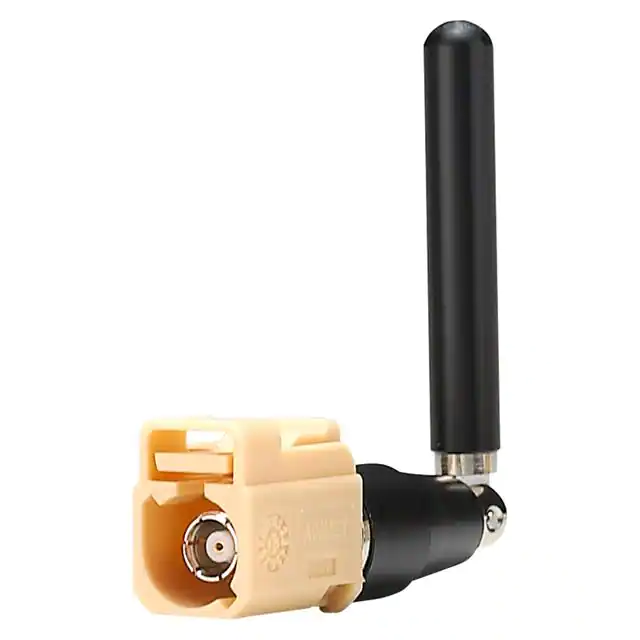

GW.05.AE232.4/5.8GHZ TERMINAL MOUNT MONOPO |
198 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Tilt | 3 | - | - | -0.83dBi, 2.92dBi, 2.64dBi, 2.91dBi, 1.41dBi, 2.61dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Wi-Fi |
|

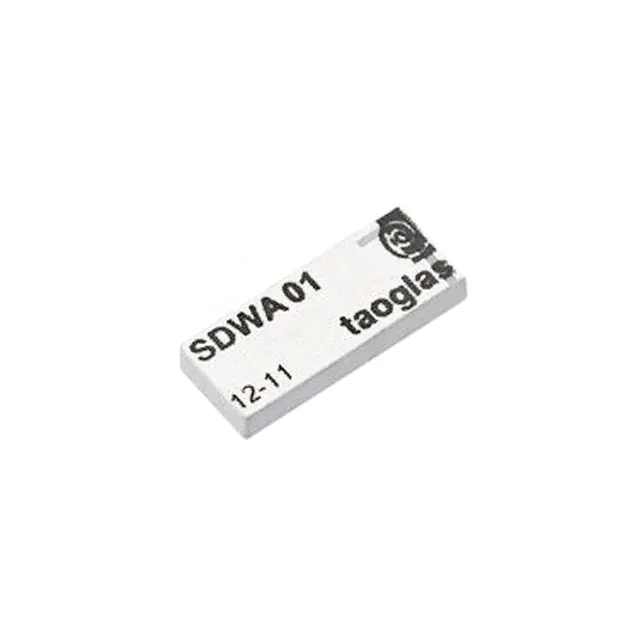

SDWA.01RF ANT 2.4GHZ/5.8GHZ CHIP SLD |
4,573 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Chip | 2 | 2.5, 3 | - | 2.59dBi, 3.38dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | WLAN |
|

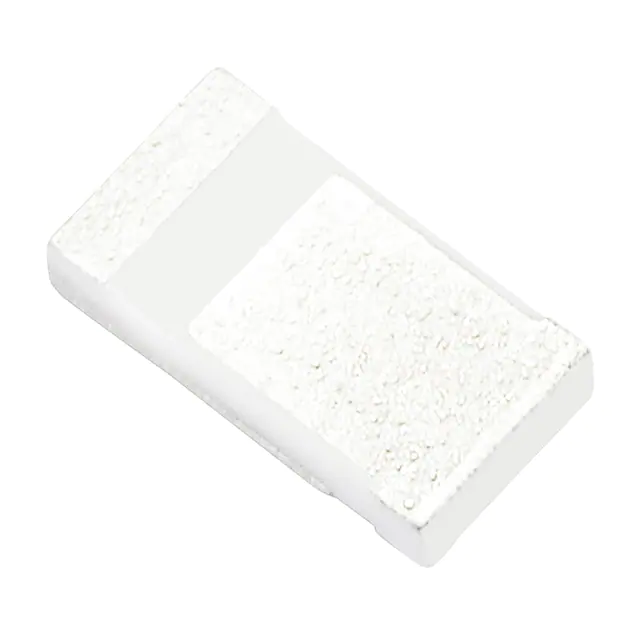

WLA.01RF ANT 2.4GHZ CHIP SOLDER SMD |
28,493 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|

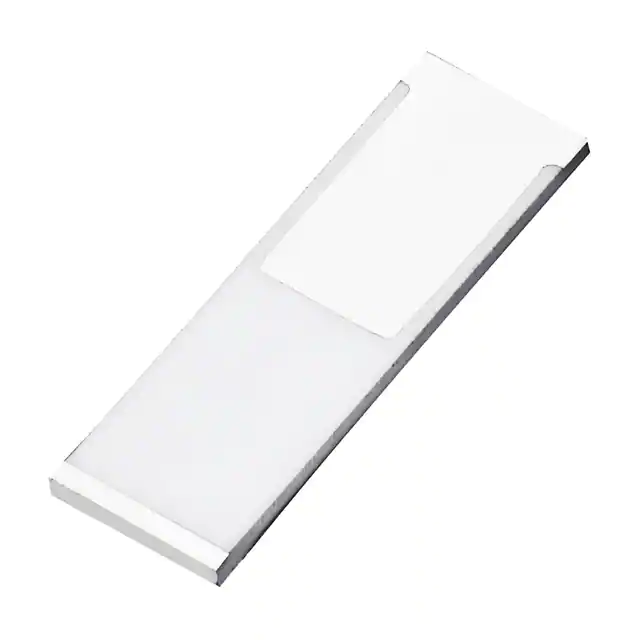

ILA.02RF ANT 869MHZ CHIP SOLDER SMD |
10,652 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Chip | 1 | 1.5 | -17dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|

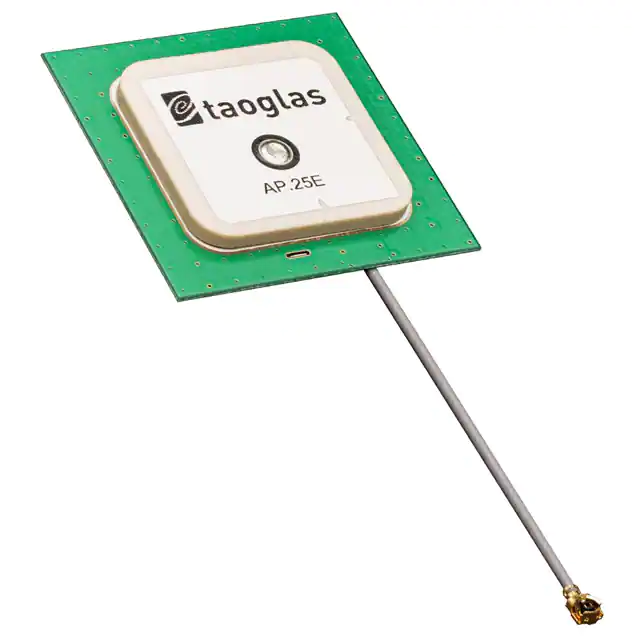

AP.25E.07.0054ARF ANT 1.575GHZ CER PATCH IPEX |
2,023 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|

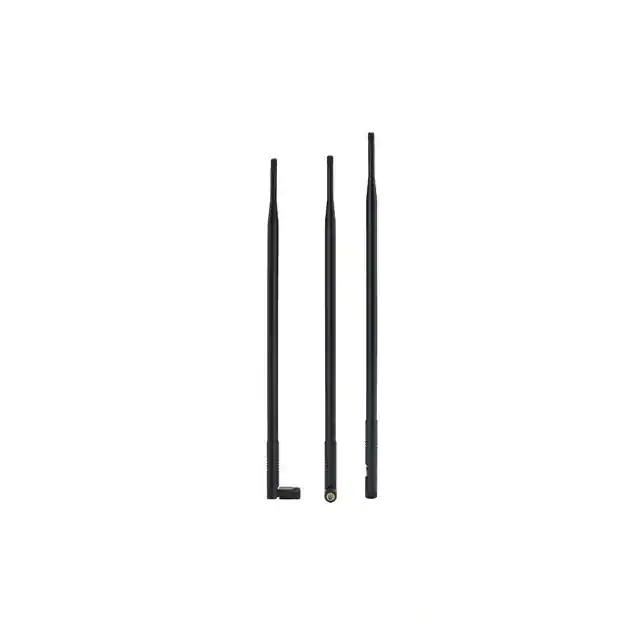

TI.19.2113RF ANT 915MHZ WHIP TILT SMA MALE |
101 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | 1.9 | - | 2.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 15.315" (389.00mm) | WLAN |
|

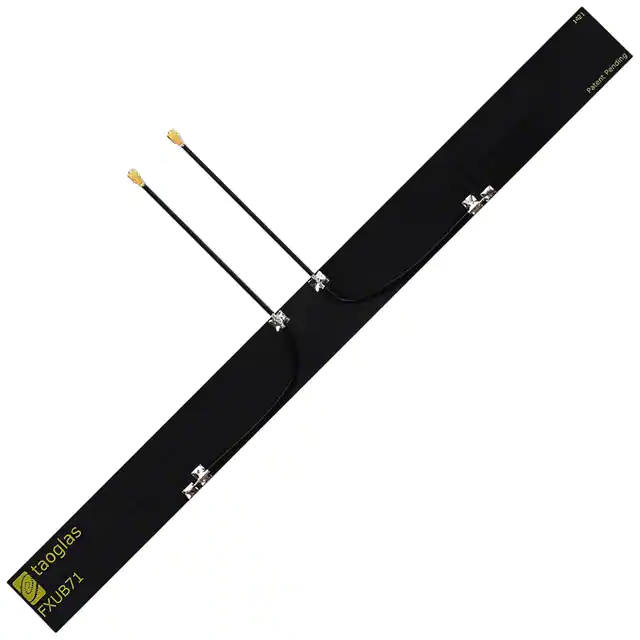

FXUB71.A.07.C.001RF ANT 1.9GHZ FLAT PATCH MHFHT |
445 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 1.9GHz | 698MHz ~ 3GHz | Flat Patch | 1 | - | - | 4.42dBi | 2 W | - | I-PEX MHFHT (2) | - | - | - | Adhesive | 0.006" (0.15mm) | GPS, LTE, WCDMA, WLAN |
|
FXP280.07.0100ARF ANT 866MHZ FLAT PATCH IPEX |
214 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 866MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | -20dB | 1.5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
AP.25F.07.0078ARF ANT 1.575GHZ CER PATCH CAB |
551 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|
AP.25M.07.0080ARF ANT 1.575GHZ CER PATCH IPEX |
436 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 2dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
