RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCS6.ACAT M1 PENTA-BAND CELLULAR LOW P |
7,358 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 6 | - | -10dB | -0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
LA.02RF ANT 2.4GHZ CHIP SOLDER SMD |
11,311 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
HA.10.ARF ANT 169MHZ HELICAL SOLDER SMD |
148 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 169MHz | - | Helical | 1 | - | -10dB | - | - | - | Solder | - | - | - | Surface Mount | 1.004" (25.50mm) | - |
|
PA.11RF ANT 2.4GHZ CHIP SOLDER SMD |
9,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
PA.12RF ANT 2.4GHZ CHIP SOLDER SMD |
4,251 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.484GHz | Chip | 1 | 2 | - | 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | Bluetooth, WLAN, Zigbee™ |
|
WDP.2458.25.4.B.02RF ANT 2.4/5.5GHZ CER PATCH PIN |
822 | - |
|
Datasheet | - | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Ceramic Patch | 2 | - | -19dB, -5dB | 6dBi, 8dBi | 10 W | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | WLAN |
.jpg "CGGP.35.3.A.02")
|

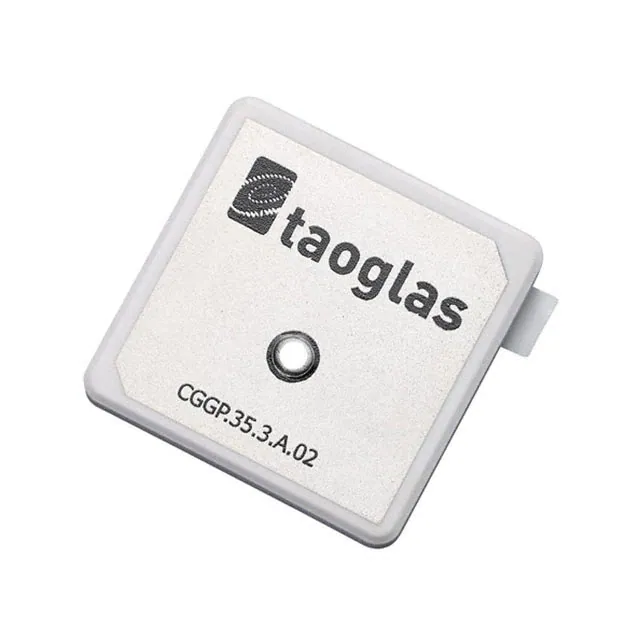

CGGP.35.3.A.02RF ANT 1.575/1.6GHZ CER PATCH |
303 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.6GHz | 1.564GHz ~ 1.586GHz, 1.591GHz ~ 1.613GHz | Ceramic Patch | 2 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.138" (3.50mm) | GLONASS, GPS |
|

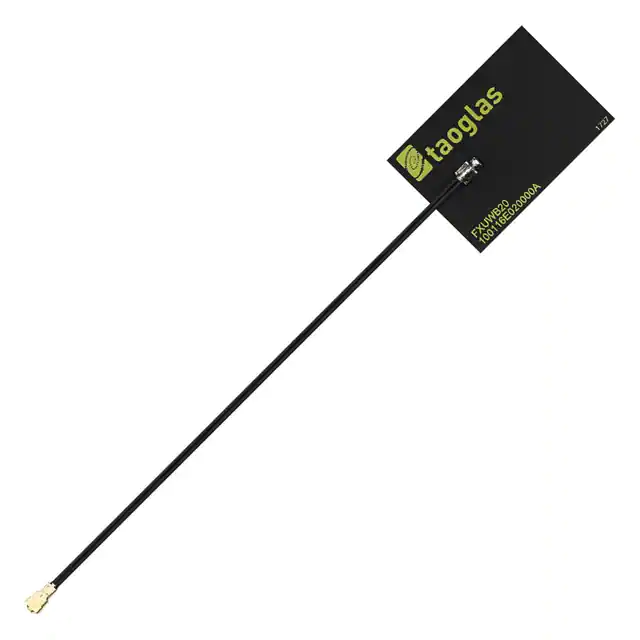

FXUWB20.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
111 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4dBi, 5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|

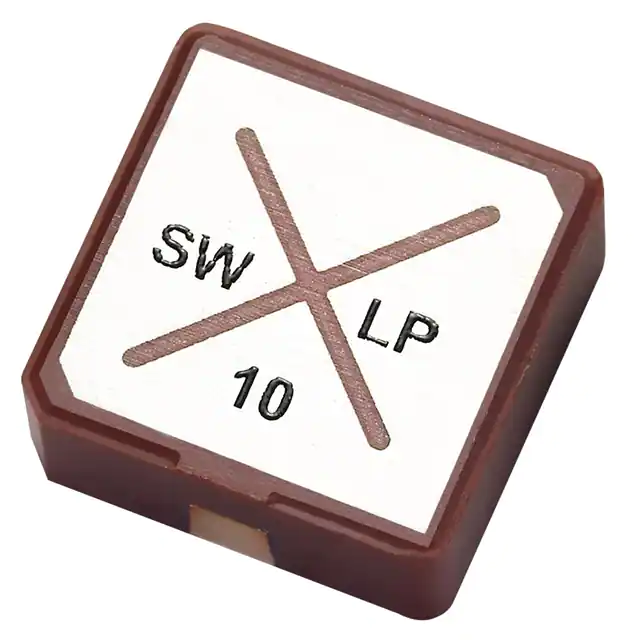

SWLP.2450.10.4.A.02RF ANT 2.4GHZ CER PATCH SLD 10MM |
1,698 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | -1dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

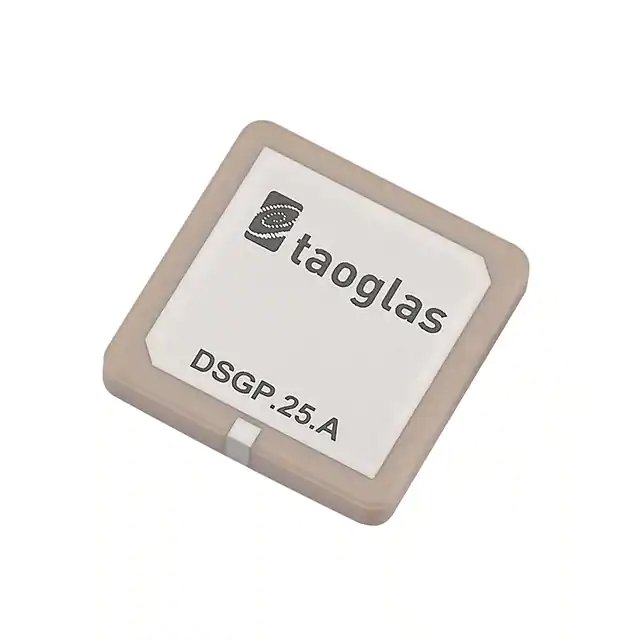

DSGP.1575.25.4.A.02GPS 1575MHZ SMD CERAMIC DIRECT M |
272 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 4.34dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
