RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

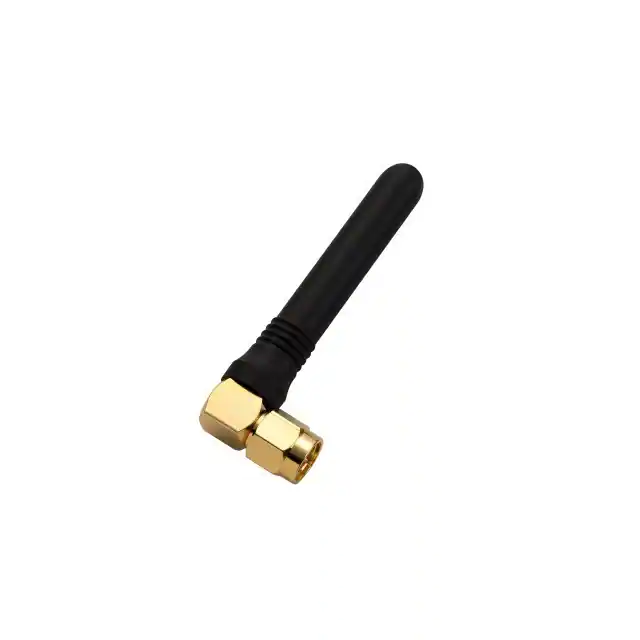

TI.08.C.0112RF ANT 868MHZ WHIP RA SMA MALE |
258 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Right Angle | 1 | 2.3 | - | - | - | - | SMA Male | - | - | - | Connector Mount | 2.079" (52.80mm) | - |
|

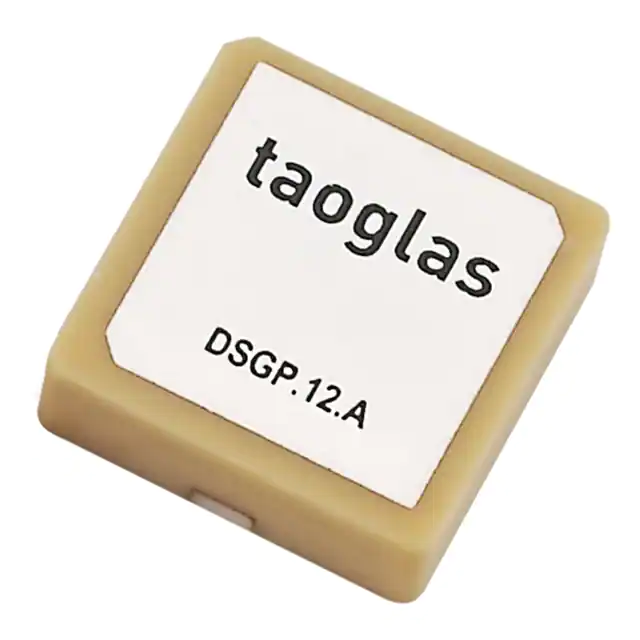

DSGP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
1,785 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -10dB | 2.73dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GPS |
|

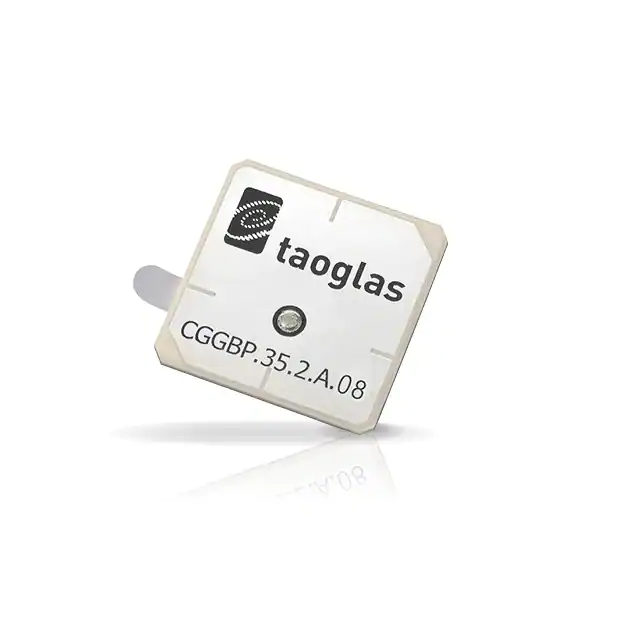

CGGBP.35.2.A.08RF ANT 1.561/1.575GHZ CER PATCH |
139 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 3 | - | - | 3.45dBi, 3.68dBi, 4.87dBi | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | Beidou, Galileo, GLONASS, GPS |
|

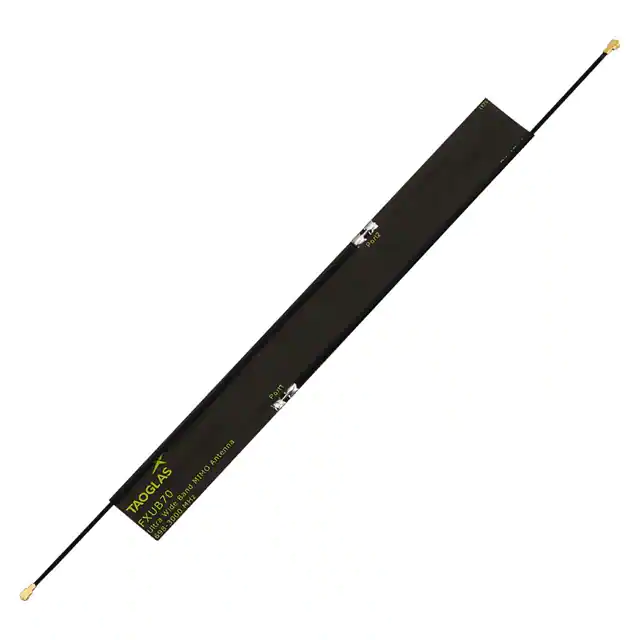

FXUB70.A.07.C.001RF ANT 850MHZ/1.575GHZ FLT PATCH |
1,109 | - |
|
Datasheet | - | Bag | Active | AGPS, Cellular, WiFi | Wide Band | 850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 3GHz | Flat Patch | 6 | 2, 2, 1.8, 1.7, 1.7, 2.3 | -10dB, -10dB, -11dB, -12dB, -12dB, -8dB | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPRS, GSM, HSPA, LTE, Wi-Fi |
|

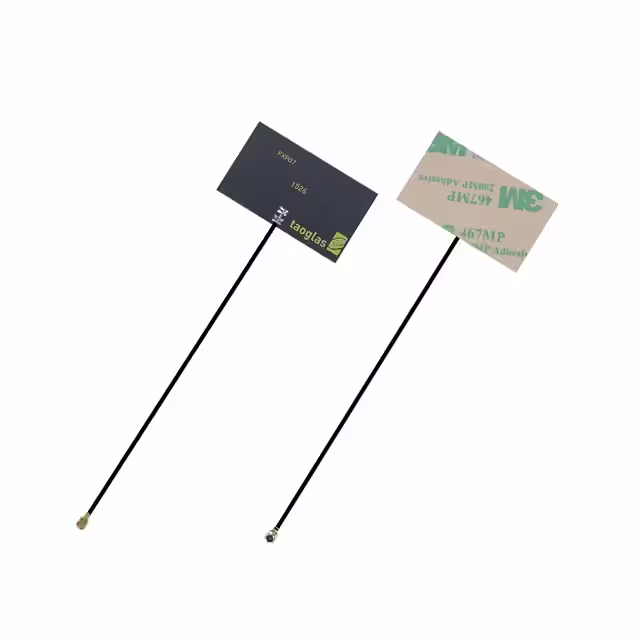

FXP07.07.0100ARF ANT 850MHZ/900MHZ PCB TRACE |
300 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | - | - | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | AMPS, DCS, GSM, PCS, UMTS |
|

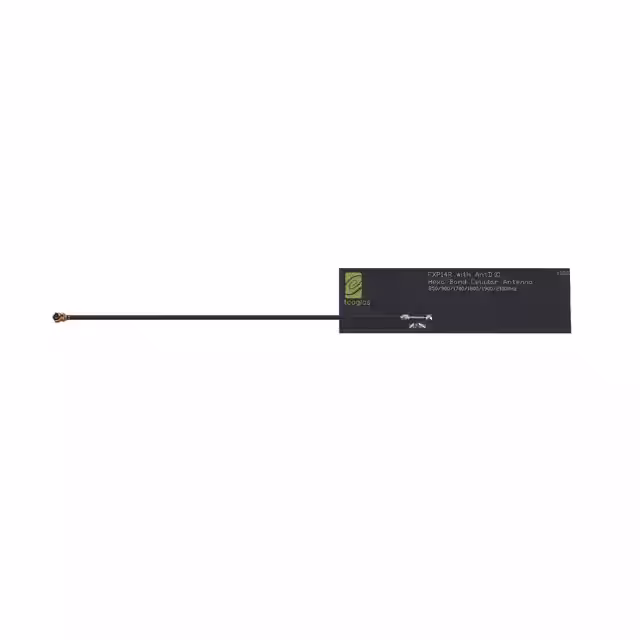

FXP14R.A.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
161 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | - | -7dB, -11dB, -12dB, -16dB, -12dB, -12dB | -1.5dBi, -3dBi, 1.5dBi, 2.5dBi, 2.5dBi, 2.5dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | CDMA, GSM |
|
PA.176.AANT 5G/4G SUB 6 SMD 1700-6000MHZ |
922 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.5375GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.2GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | Chip | 7 | 3 | - | 3dBi, 3.3dBi, 3.8dBi, 4.5dBi, 3.7dBi, 3.6dBi, 2.8dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.118" (3.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|

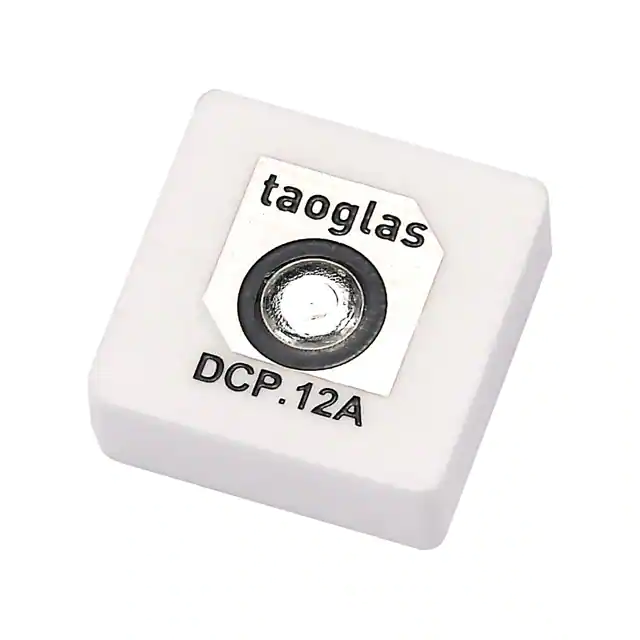

DCP.5900.12.4.A.02RF ANT 5.9GHZ CER PATCH PIN ADH |
314 | - |
|
Datasheet | - | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 1.8 | - | 6dBi | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | DSRC |
|

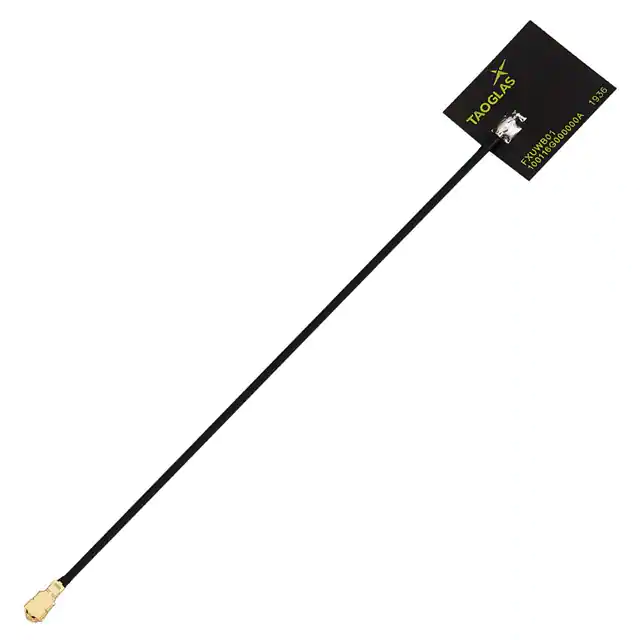

FXUWB01.07.0100CULTRA WIDE BAND FLEX ANTENNA 6GH |
492 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | FlexPIFA | 2 | 2, 3 | - | 3.5dBi, 4dBi, 4.5dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|

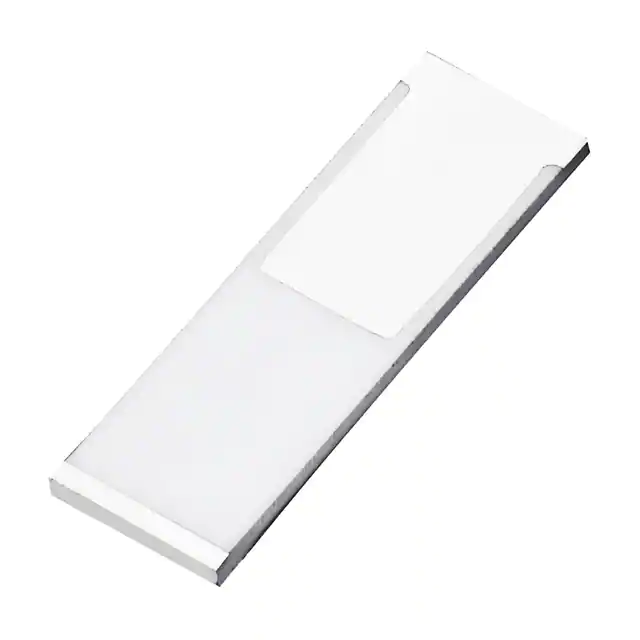

ILA.01RF ANT 915MHZ CHIP SOLDER SMD |
3,977 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2 | -10dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
