RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

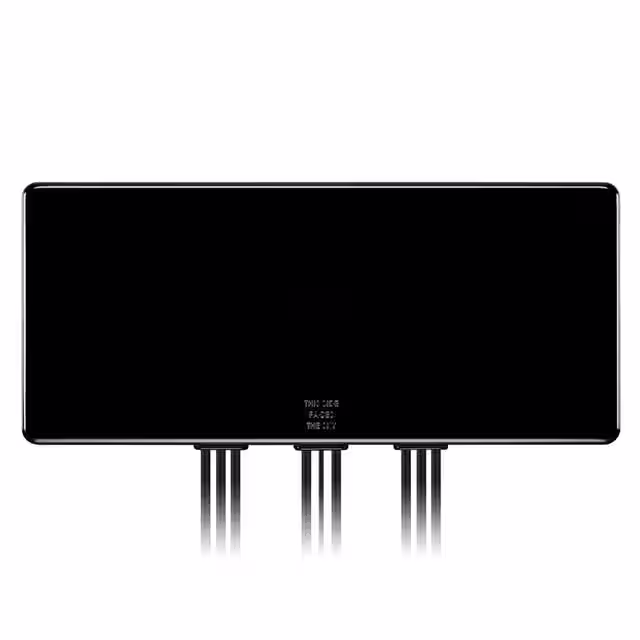

MA9929.A.0029-IN-1 GUARDIANX WITH GNSS, 4 5G |
1,488 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, | Module | 15 | 2 | - | 2.82dBi, 2.84dBi, 2.06dBi, 3.98dBi, 3dBi, 3.2dBi, 3.71dBi, 3.16dBi, 3.92dBi, 2.46dBi, 2.32dBi, 4.25dBi, 1.78dBi, 1.4dBi | 20 W | Cable - 3m, LNA, Filter | Fakra (3) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, GSM, LTE, Wi-Fi |
|
MA450.K.LBICG.003RF ANT 829MHZ/1.575GHZ FLAT BAR |
4,506 | - |
|
Datasheet | Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Flat Bar | 7 | 2 | -10dB | 4.4dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
PCS.27.AWI-FI 2.4/5.8/7.125GHZ FR4 PIFA |
1,379 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | - | - | 1.19dBi, 3.53dBi, 3.94dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.122" (3.10mm) | Wi-Fi |
|
|
GWLA.15GPS/GALILEO & 2.4/5.8GHZ DUAL-BA |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 1.561GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 5 | 1, 2 | - | -0.54dBi, -0.16dBi, -0.81dBi, -0.34dBi, 2.12dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, Bluetooth, Galileo, GLONASS, GNSS, GPS, Wi-Fi, WLAN, Zigbee™ |
|
|
PCS.25.AWI-FI 2.4GHZ FR4 PIFA ANTENNA WI |
1,947 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCS.55.M4G/5G SMD FR4 ANTENNA |
990 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 657MHz, 722MHz, 773MHz, 840MHz, 920MHz, 1.472GHz, 1.581GHz, 1.932GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.56GHz ~ 1.602GHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Chip | 9 | - | -5.9dB, -4.7dB, -3.7dB, -3.3dB, -3.1dB, -2.6dB, -2.5dB, -1.8dB | -3.3dBi, 0.2dBi, -0.3dBi, -1dBi, -1.8dBi, 0.4dBi, 1.6dBi, 3.7dBi, 0dBi | 2 W | - | - | - | - | - | Surface Mount | 0.063" (1.60mm) | 3G, 4G, GNSS, LTE |
|

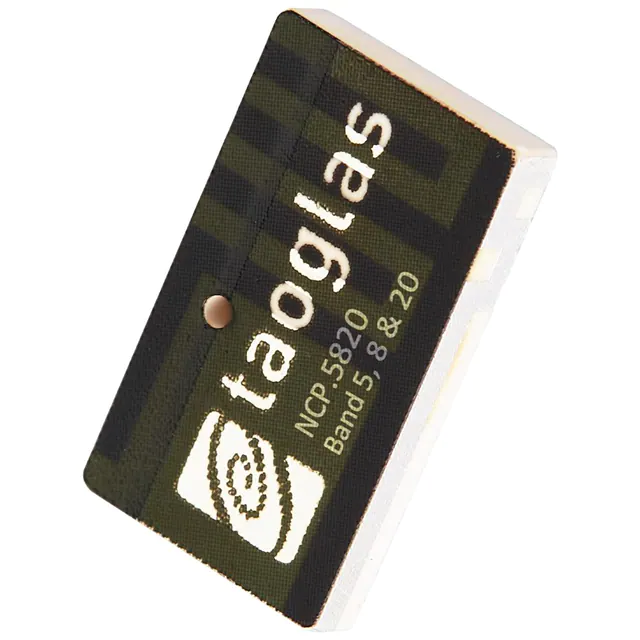

NCP.5820NB-IOT CERAMIC PATCH ANTENNA FOR |
1,577 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Ceramic Patch | 3 | - | -4.5dB, -5dB | -0.3dBi, 1.1dBi, 1.7dBi, 0.6dBi, 1.2dBi | 5 W | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|

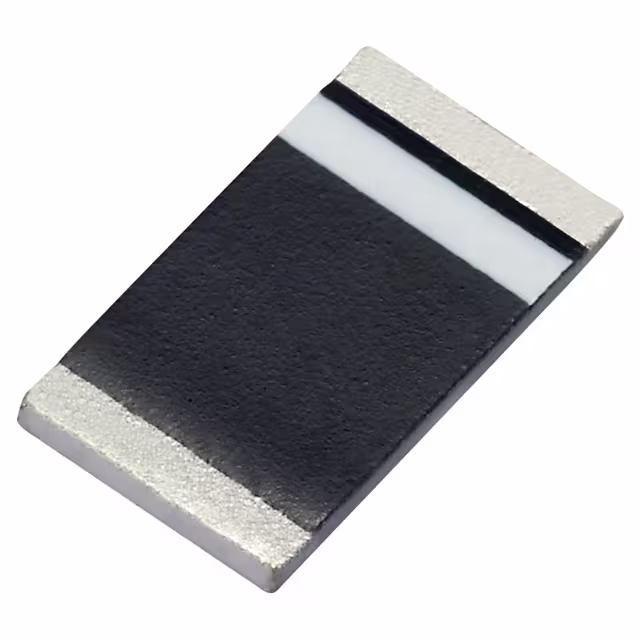

ILA.08RF ANT 868MHZ CHIP SOLDER SMD |
5,971 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 870MHz | Chip | 1 | - | -10dB | -0.9dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
PA.500.AWARRIOR CHIP SMD CERAMIC BAND 28 |
449 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 753MHz | 703MHz ~ 803MHz | Chip | 1 | - | - | -1.3dBi | 5 W | - | SMA Female | - | - | - | Surface Mount | 0.236" (6.00mm) | IoT, LTE |
|

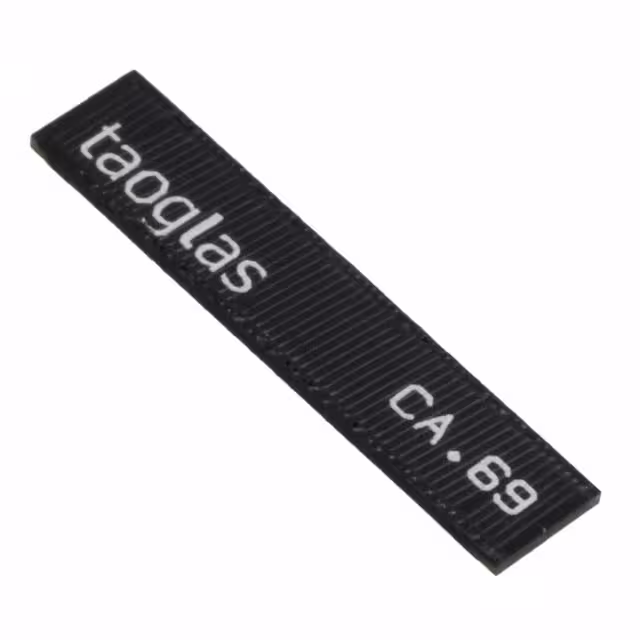

CA.69RF ANT 169MHZ CHIP SOLDER SMD |
3,931 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 169MHz | 165MHz ~ 173MHz | Chip | 1 | 2 | -10dB | -7dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
