RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

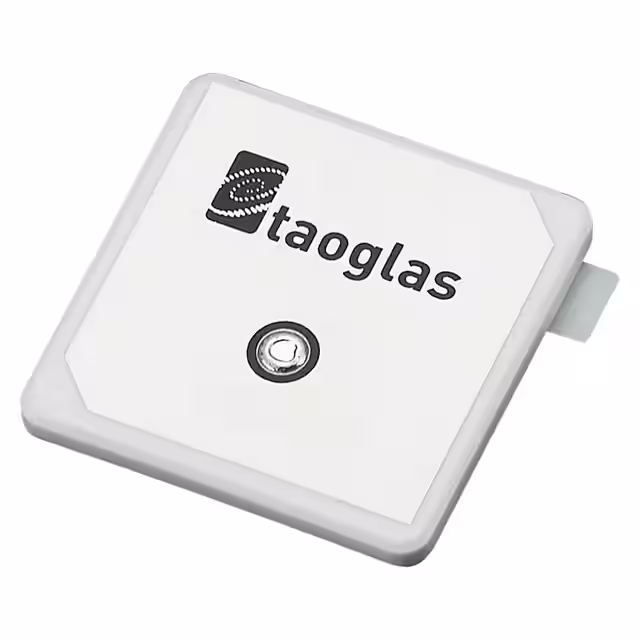

GP.1575.35.3.A.02RF ANT 1.575GHZ CER PATCH PIN |
143 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.581GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
PC29.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
156 | - |
|
Datasheet | TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 1.58, 1.78, 1.51, 1.38, 1.37 | -13dB, -11dB, -14dB, -16dB, -16dB | 0.01dBi, 1.2dBi, 2.66dBi, 1.25dBi, 1.43dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | CDMA, GSM, UMTS |
|

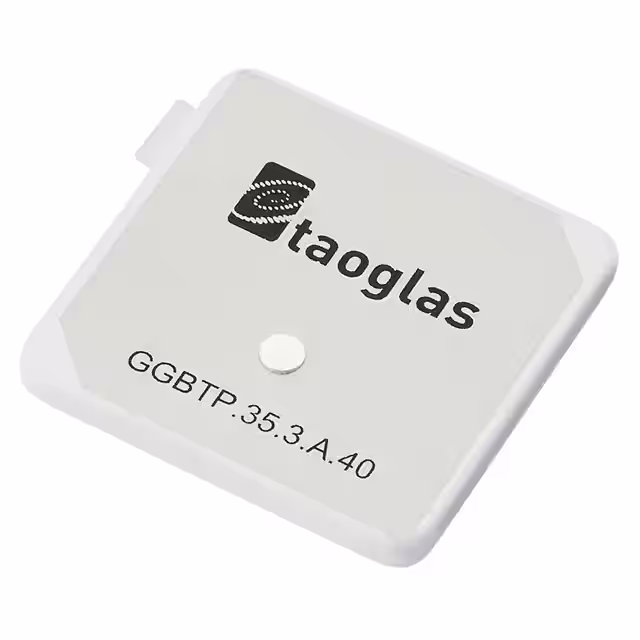

GGBTP.35.3.A.40TERRABLAST GGBTP.35.3.A.40 GPS L |
113 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | -10dB | 4.12dBi, 4.03dBi, 4.33dBi | - | - | Pin | - | - | - | Adhesive | 0.146" (3.72mm) | Beidou, Galileo, GLONASS, GPS |
|

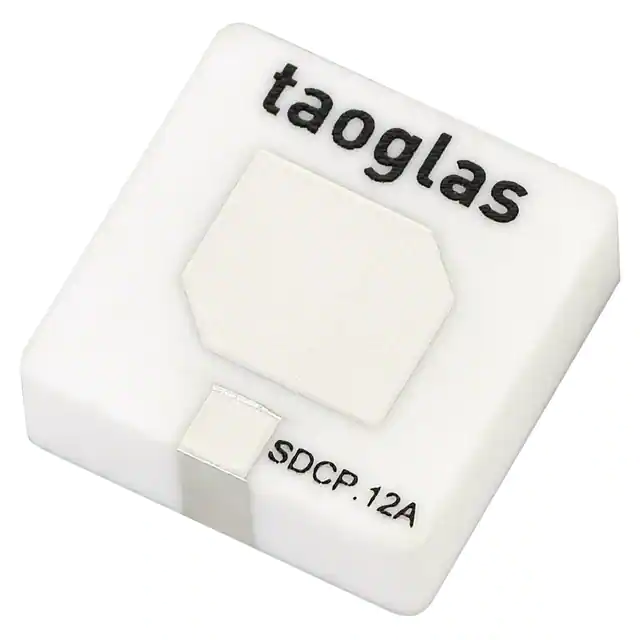

SDCP.5900.12.4.A.405.9GHZ DSRC SMD PATCH ANTENNA 12 |
305 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Ceramic Patch | 1 | 2 | - | 4.64dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | DSRC |
|

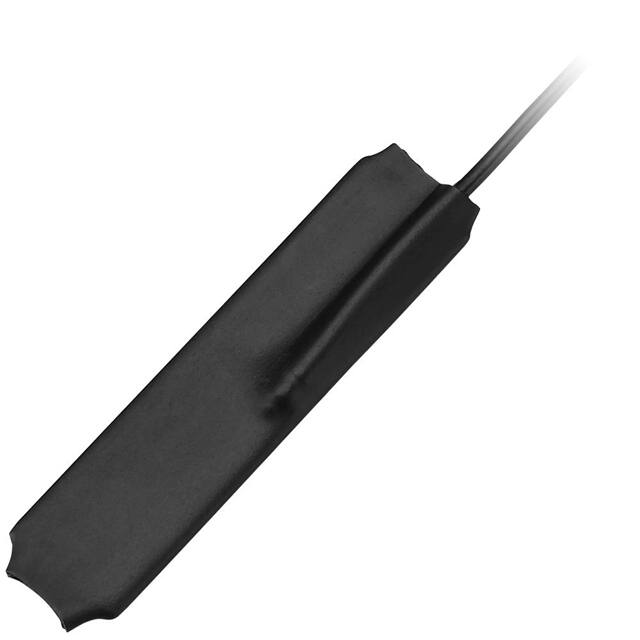

GSA.8830.A.201111GSA.8830 3G/2G CELLULAR ADHESIVE |
177 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Flat Bar | 5 | - | -8dB, -9dB, -10dB | -0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.181" (4.60mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|

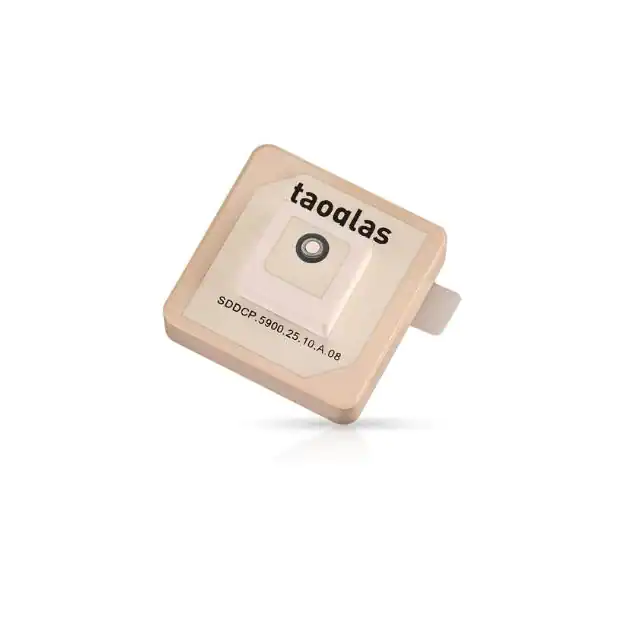

SDDCP.5900.25.10.A.08DUAL PIN SINGLE FEED STACKED PAT |
4,716 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.3325GHz, 5.8875GHz | 2.32GHz ~ 2.345GHz, 5.85GHz ~ 5.925GHz | Ceramic Patch | 2 | - | -10dB | 5.4dBi, 3.5dBi | - | - | Pin | - | - | - | Adhesive | 0.400" (10.15mm) | DSRC |
|

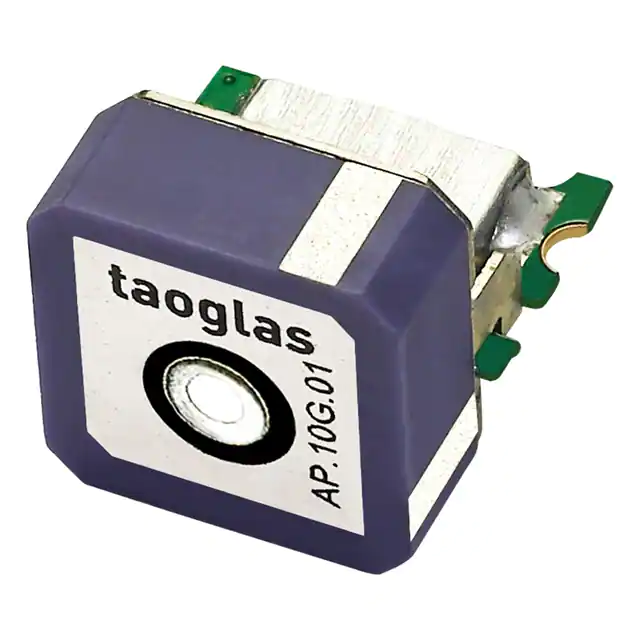

AP.10G.01RF ANT 1.575GHZ CER PATCH SLD |
2,776 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -10dBic | - | LNA, Filter | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
TG.45.8113WTG.45.8113W APEX III WIDEBAND 4G |
207 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 460MHz, 752MHz, 753MHz, 859MHz, 920MHz, 1.5815GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz, 4.9GHz ~ 5.85GHz | Whip, Straight | 13 | - | - | 1.46dBi, 2.87dBi, 2.87dBi, 3.26dBi, 3.58dBi, 0.75dBi, 3.95dBi, 4.17dBi, 4.85dBi, 2.82dBi, 4.16dBi, 0.26dBi, 3.88dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 8.583" (218.00mm) | Beidou, CDMA, DCS, EDGE, Galileo, GLONASS, GPRS, GPS, HSPA, LTE, PCS, UMTS, WCDMA |
|

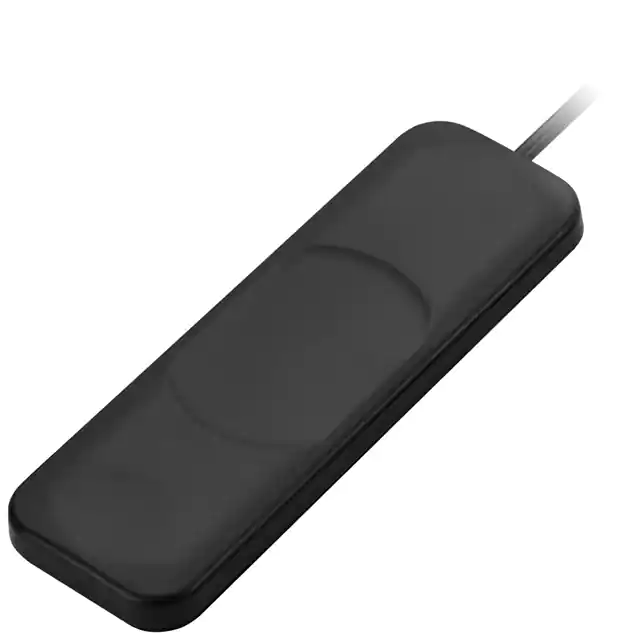

GSA.8845.A.105111GSA.8845 WIDEBAND 4G/3G/2G LTE I |
132 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 460MHz, 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 5.375GHz | 450MHz ~ 470MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.85GHz | Flat Bar | 9 | - | - | -0.23dBi, 2.56dBi, 2.56dBi, 1.93dBi, 2.43dBi, 2.31dBi, 3.85dBi, 3.55dBi, 5.32dBi | 5 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.535" (13.60mm) | CDMA, DCS, GPS, GSM, LTE, PCS, UMTS, WLAN |
|
MA208.A.AB.007RF ANT 1.5GHZ FLAT BAR FAKRA ADH |
4,415 | - |
|
Datasheet | Stream | Bag | Active | - | Wide Band | 1.5GHz | 700MHz ~ 2.2GHz | Flat Bar | 1 | 3.5 | - | - | - | - | SMB, Fakra | - | - | - | Adhesive | 0.354" (9.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
