RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

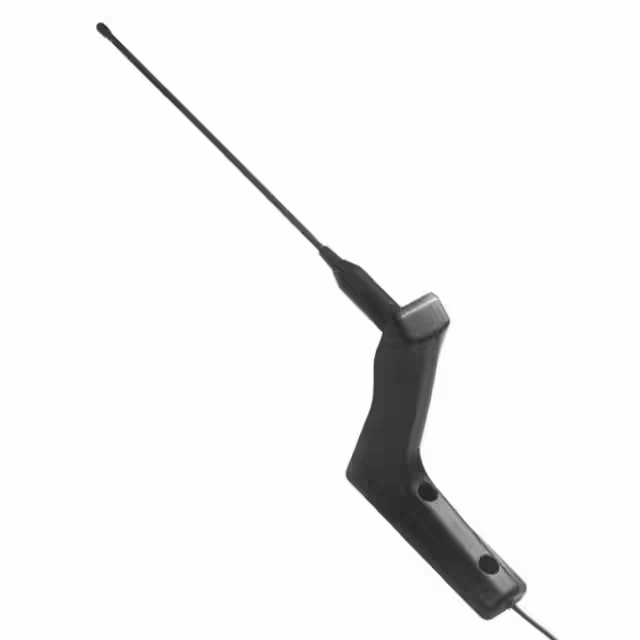

WM.90.A305111RF ANT 748MHZ/892MHZ WHIP STR |
4,189 | - |
|
Datasheet | - | Box | Active | - | Wide Band | 748MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.57GHz ~ 2.69GHz | Whip, Straight | 4 | - | -3dB, -6dB, -6dB, -6dB | -2.75dBi, 2.02dBi, 5.09dBi, 4.65dBi | 2 W | - | SMA Male | IP67 | - | - | Bracket Mount | 9.764" (248.00mm) | - |
|

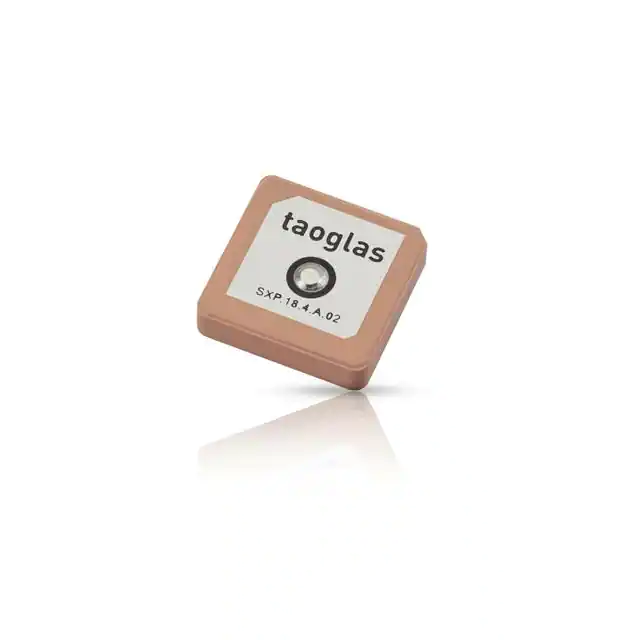

SXP.18.4.A.02SDARS 2320 2345MHZ DUAL-BAND XM |
3,449 | - |
|
Datasheet | - | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 8dBic, 9.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|

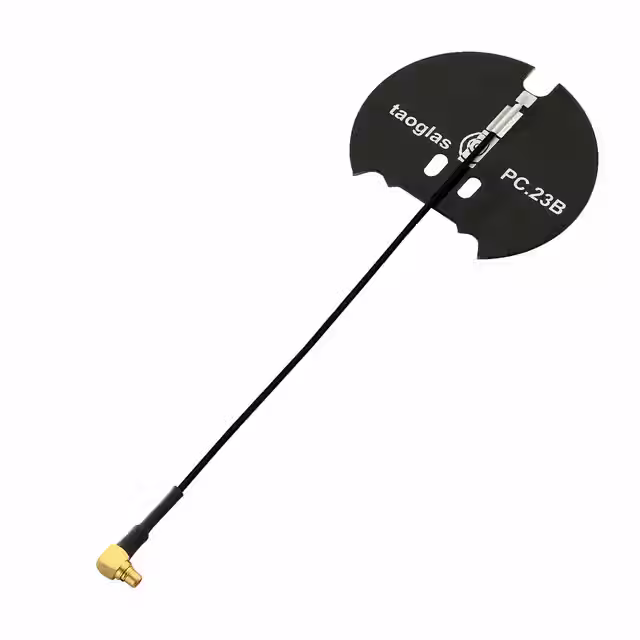

PC23.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,532 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|

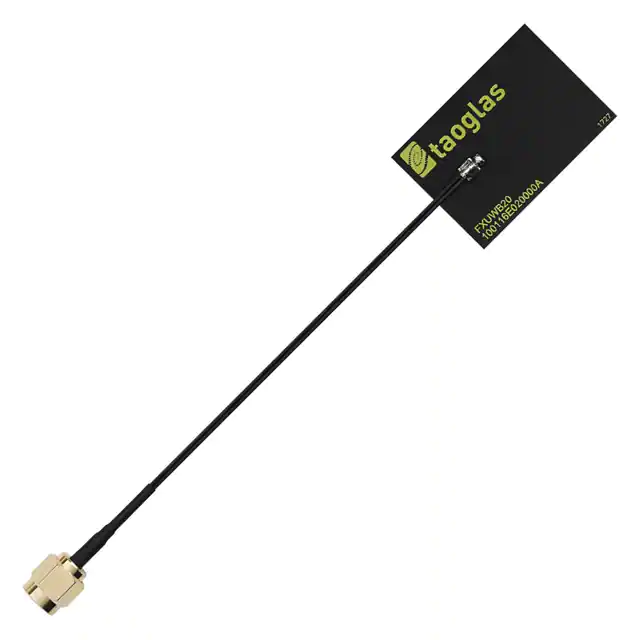

FXUWB20.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
2,989 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2, 2.2, 3 | - | 4.2dBi, 5.8dBi, 6.6dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|

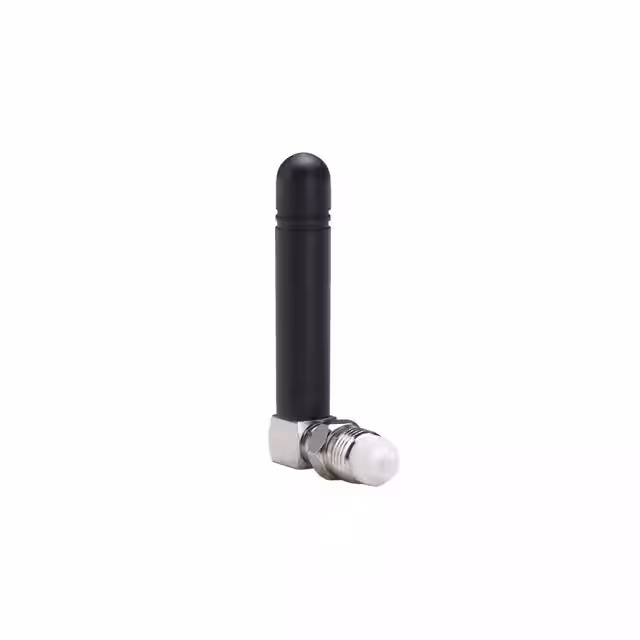

TG.22.0222RF ANT 850MHZ/900MHZ WHIP RA |
2,321 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | 3, 2, 2, 2, 3 | -5dB, -10dB, -10dB, -10dB, -5dB | -0.37dBi, -0.13dBi, 3.35dBi, 4dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 1.772" (45.00mm) | DCS, GSM, PCS, WCDMA |
|

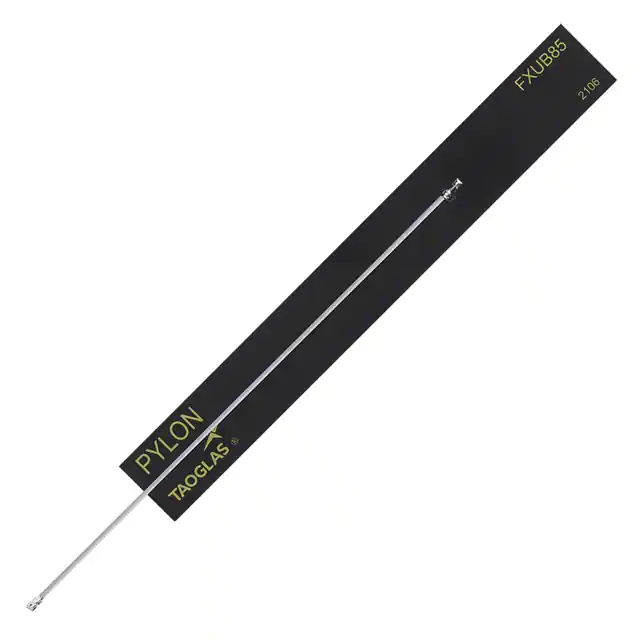

FXUB85.54.0150CULTRA WIDE BAND FLEX ANTENNA 600 |
4,894 | - |
|
Datasheet | Pylon | Bulk | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 7 | - | -6dB, -7dB, -8dB, -11dB, -15dB | 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.012" (0.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|

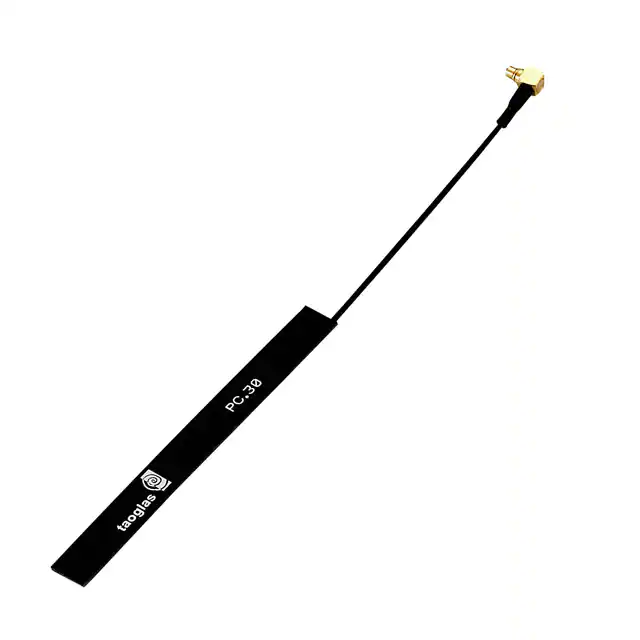

PC30.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
4,371 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 2, 2.3, 0.5, 2.3, 2.2 | -18dB, -18dB, -12dB, -16dB, -12dB | 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi | 10 W | Cable - 100mm | MMCX Male | - | - | - | Bracket Mount | 0.031" (0.80mm) | CLR, DCS, GSM, PCS, UMTS |
|

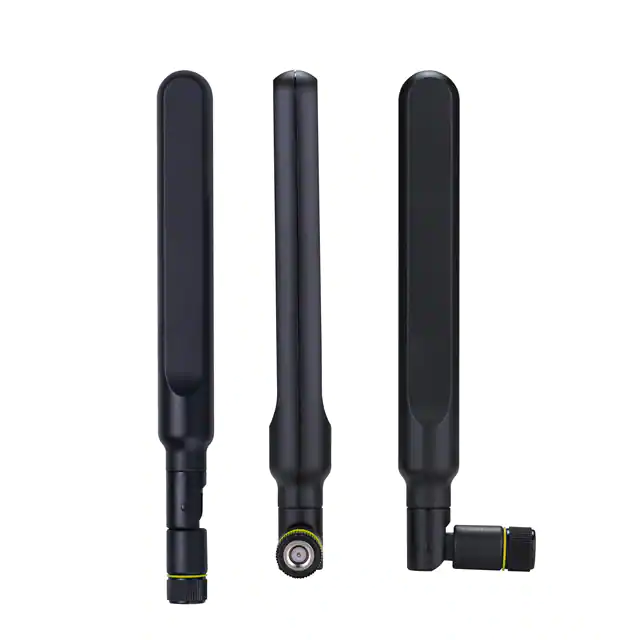

TD.10.5113TD.10 TRITON 5DBI DSRC 5.9GHZ DI |
4,356 | - |
|
Datasheet | - | Bag | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Tilt | 1 | 2 | -10dB | 5.88dBi, 6.67dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | DSRC |
|

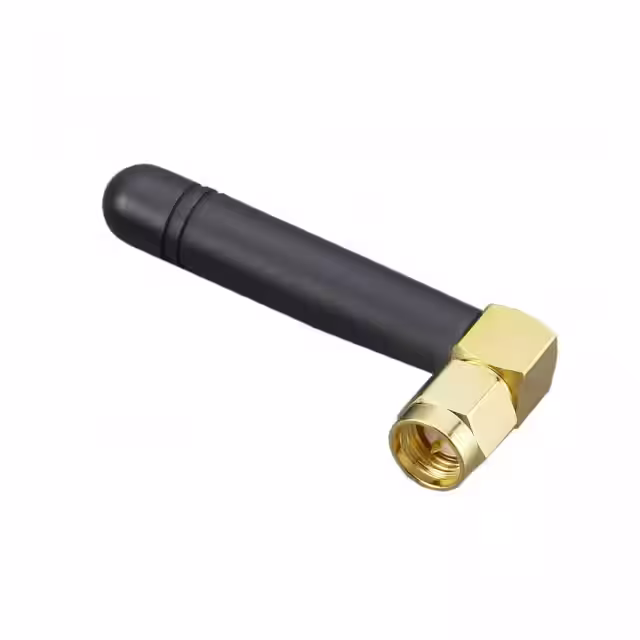

TG.22.0112.HTRF ANT 1.5GHZ WHIP RA SMA MALE |
3,345 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, GSM, UMTS |
|

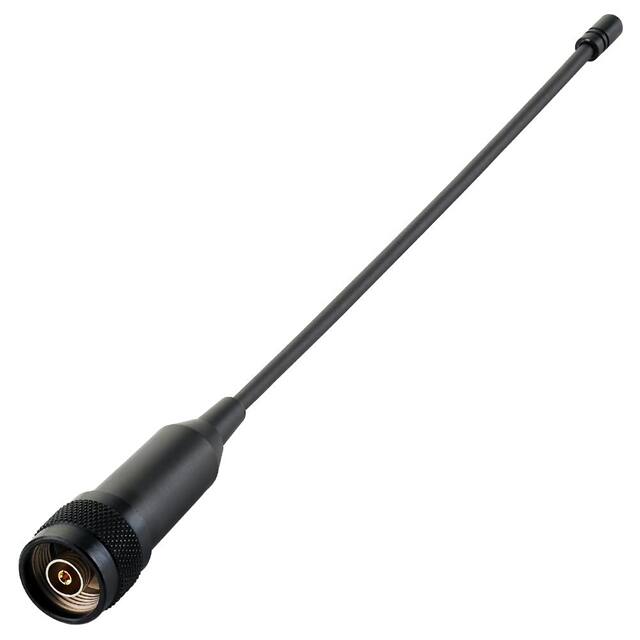

FW.92.RNT.MRF ANT 892MHZ/1.9GHZ WHIP STR |
4,486 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3.4dBi, 4dBi | - | - | RP-N Male | IP67 | - | - | Connector Mount | 10.787" (274.00mm) | CDMA, GSM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
