RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

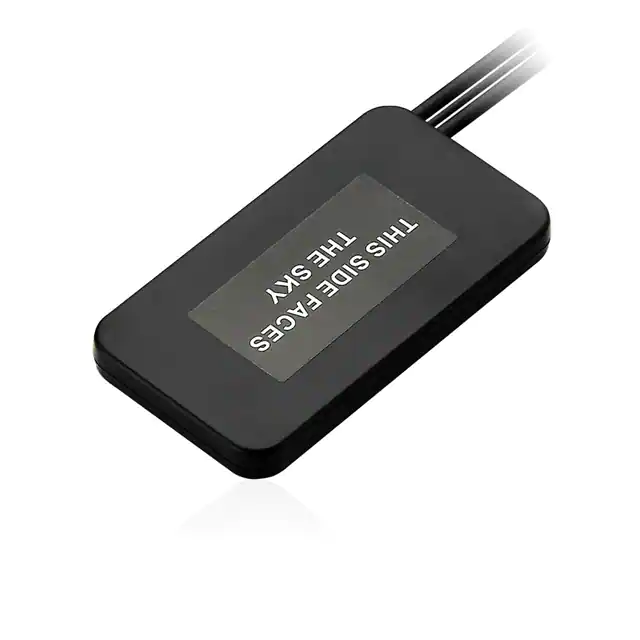

MA250.A.LBI.001RF ANT 750MHZ/892MHZ MOD SMA ADH |
1,861 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Module | 4 | 3, 2 | -10dB, -6dB | 28dB | 5 W | Cable - 2m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.551" (14.00mm) | BEIDOU, GLONASS, GPS, LTE |
|
MAT.176C4-IN-1 5G MULTI-ANTENNA BOARD (8 |
1,557 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz, 3.4GHz, 3.925GHz, 5.537GHz | 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.2GHz ~ 3.5GHz, 3.3GHz ~ 4.65GHz, 5.15GHz ~ 5.925GHz | PCB Trace | 7 | 3 | - | 3.18dBi, 3.88dBi, 3.88dBi, 5.06dBi, 3.28dBi, 4.39dBi, 4.44dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.157" (4.00mm) | 5G, HSPA, HSPA+, LTE, WCDMA |
|
|
FXP895.07.0200C868/915MHZ FLEX PCB ANTENNA WITH |
4,482 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FXP450.07.0100C450MHZ FLEXIBLE PCB ANTENNA |
1,043 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 420MHz, 432.5MHz, 460MHz | 410MHz ~ 430MHz, 430MHz ~ 435MHz, 450MHz ~ 470MHz | PCB Trace | 3 | - | - | -0.36dBi, -1.57dBi, -0.05dBi | 10 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.003" (0.08mm) | Cellular |
|
|
GPVBSF.25.8.AGPS L1/L5 STACKED PATCH |
2,446 | - |
|
Datasheet | - | Tray | Not For New Designs | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz | - | Ceramic Patch | 3 | 2 | - | 2.5dBi, 3.4dBi, 3.1dBi | - | - | Pin | - | - | - | Adhesive | 0.320" (8.12mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|

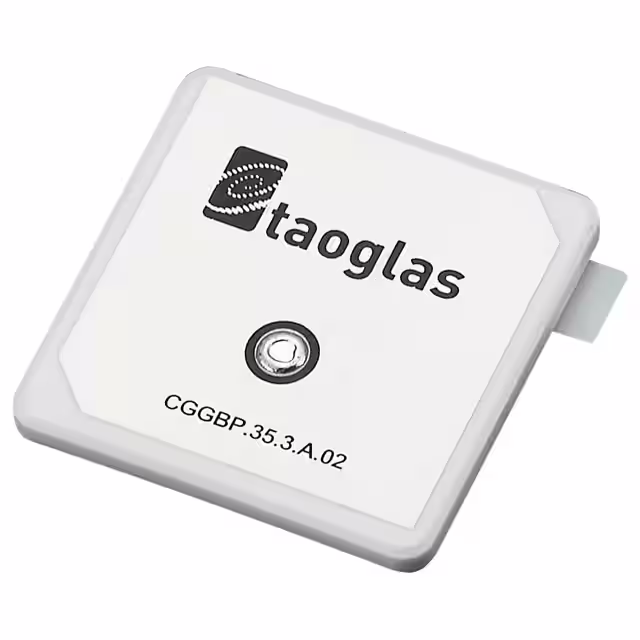

CGGBP.35.3.A.02RF ANT 1.575/1.602GHZ CER PATCH |
4,993 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2.5 | - | 4dBi | - | - | Pin | - | - | - | Surface Mount | 0.118" (3.00mm) | Beidou, GLONASS, GPS |
|

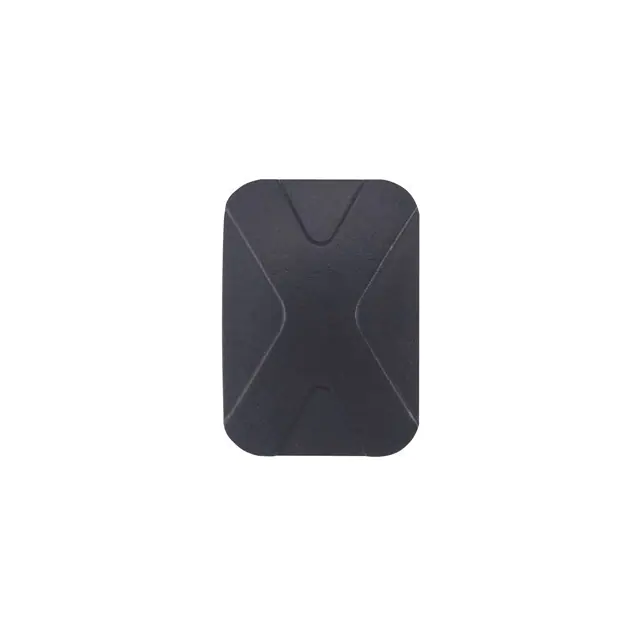

WCM.01.0151RF ANT 2.4GHZ MODULE RP-SMA MALE |
3,153 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | - | - | 5.4dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 0.646" (16.40mm) | Bluetooth, Wi-Fi |
|

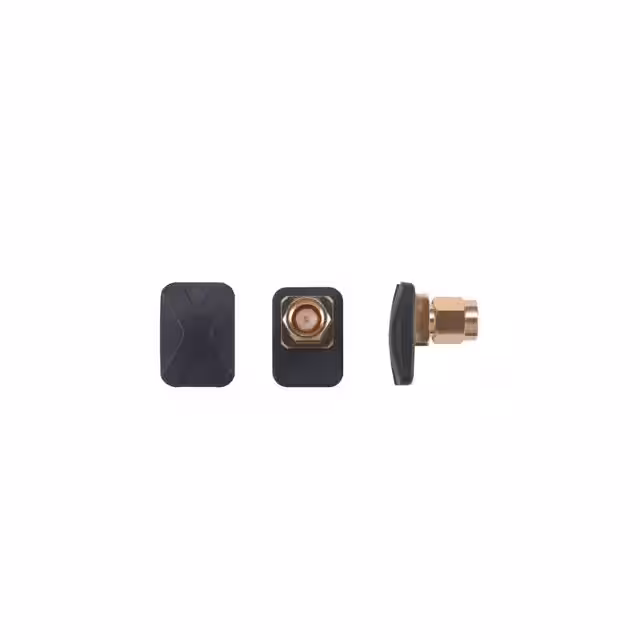

WCM.01.0111WCM.01.0111 - 2.4GHZ BUTTON ANTE |
4,888 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -6dB | 0.89dBi, 0.4dBi, 0.12dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 0.646" (16.40mm) | Bluetooth, Wi-Fi |
|
|
TI.84.A113WATERPROOF 868MHZ TERMINAL ANTEN |
4,214 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW.49.A153WATERPROOF 2.4/5-7.125GHZ DIPOLE |
1,636 | - |
|
Datasheet | - | Bulk | Active | WiFi | Wide Band | 2.45GHz, 5.375GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Straight | 3 | - | - | 2.58dBi, 3.8dBi, 1.54dBi | - | - | RP-SMA Male | IP67 | - | - | Connector Mount | 4.870" (123.70mm) | Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
