RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

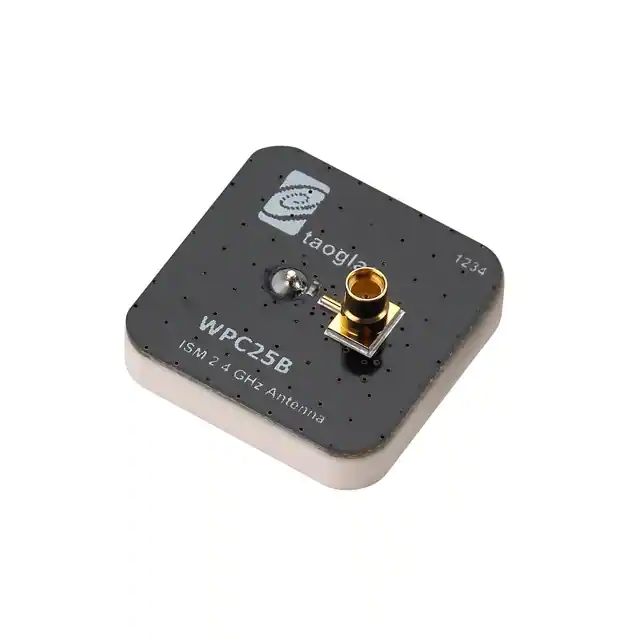

WPC.25B.35RF ANT 2.4GHZ CER PTCH MMCX 25MM |
4,867 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2 | -7dB | 2dBi | - | - | MMCX Female | - | - | - | Adhesive | 0.209" (5.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

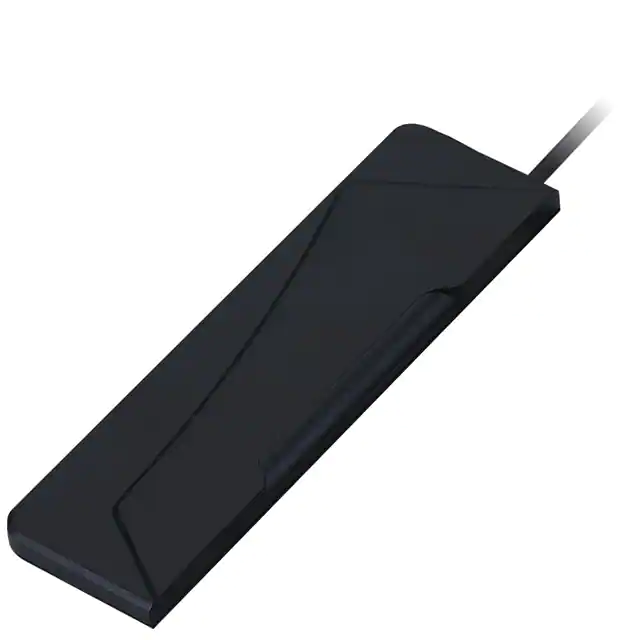

GSA.8827R.A.101111RF ANT 750MHZ/850MHZ FLAT BAR |
4,496 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 8 | - | - | 3.42dBi, 2.38dBi, 1.47dBi, 1.28dBi, 2.16dBi, 1.86dBi, 1.74dBi | 50 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
AGVLB.25B.07.0060AGPS/GLONASS/BEIDOU/IRNSS L1 + L5 |
2,224 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | - | 2.31dBi, 2.94dBi, 2.87dBi, 3.08dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Surface Mount | 0.469" (11.90mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

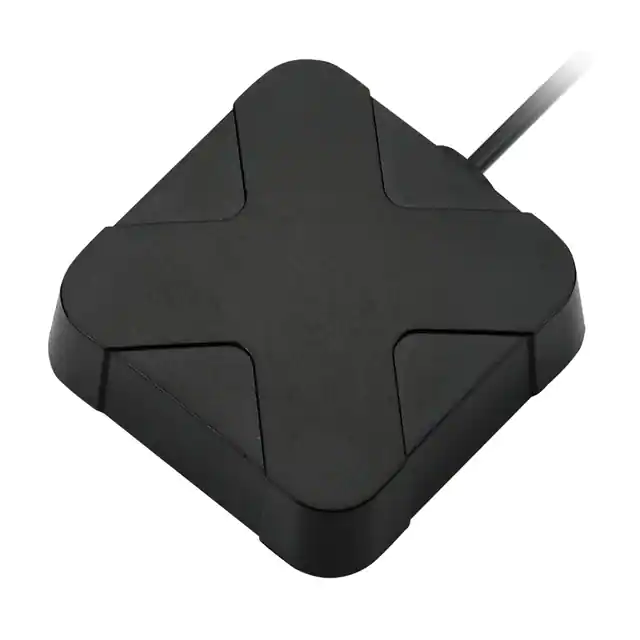

AA.171.301111RF ANT 1.561/1.575GHZ CER PATCH |
3,094 | - |
|
Datasheet | MagmaX | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 2 | - | 4.16dBi, 2.06dBi, 1.43dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP65 | - | - | Magnetic | 0.673" (17.10mm) | Beidou, GLONASS, GPS |
|

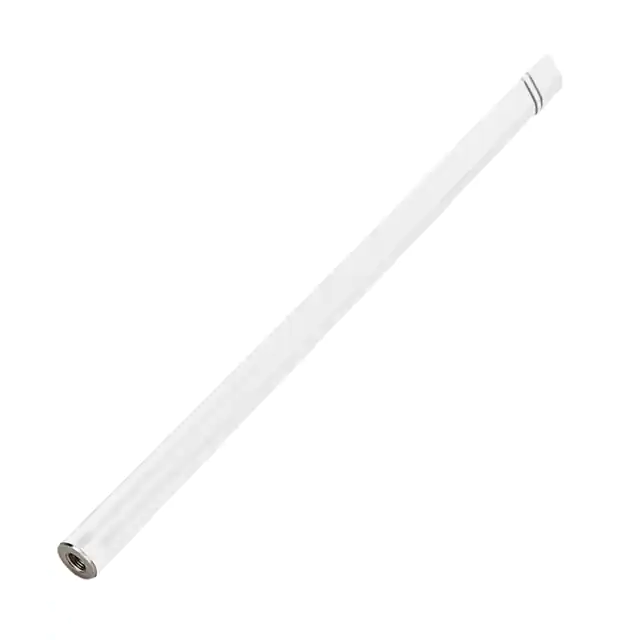

GW.22.5151W5DBI 2.4GHZ DIPOLE ANTENNA RP-SM |
4,368 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.45GHz, 2.5GHz | - | Whip, Straight | 3 | - | -10dB | 4.64dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 9.252" (235.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

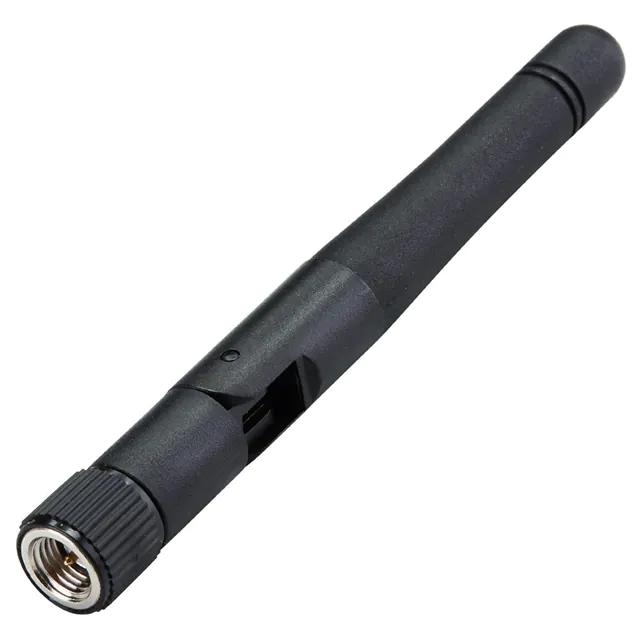

GW.11.A1132.4GHZ 2.3DBI SCREW MOUNT DIPOLE |
2,677 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Cellular, General ISM, WiFi | Wide Band | 2.4GHz | - | Whip, Tilt | 1 | - | -10dB | 2.3dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

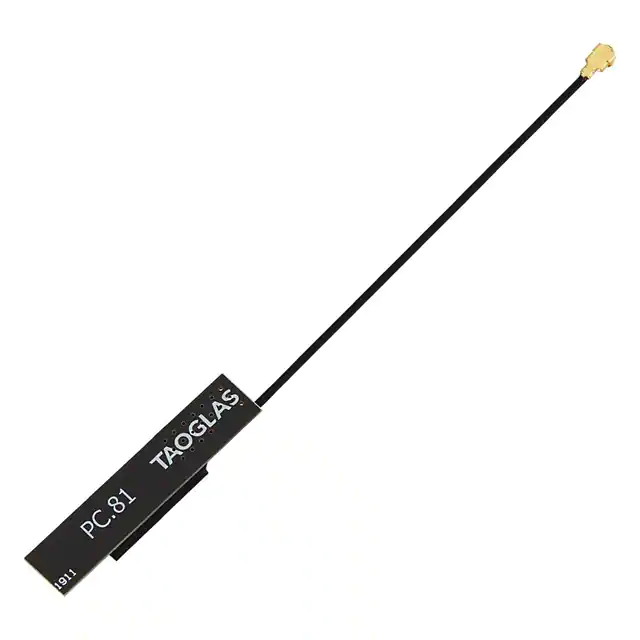

PC81.07.0100A.DBRF ANT 869MHZ PCB TRACE IPEXI |
3,890 | - |
|
Datasheet | TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.307" (7.80mm) | - |
|

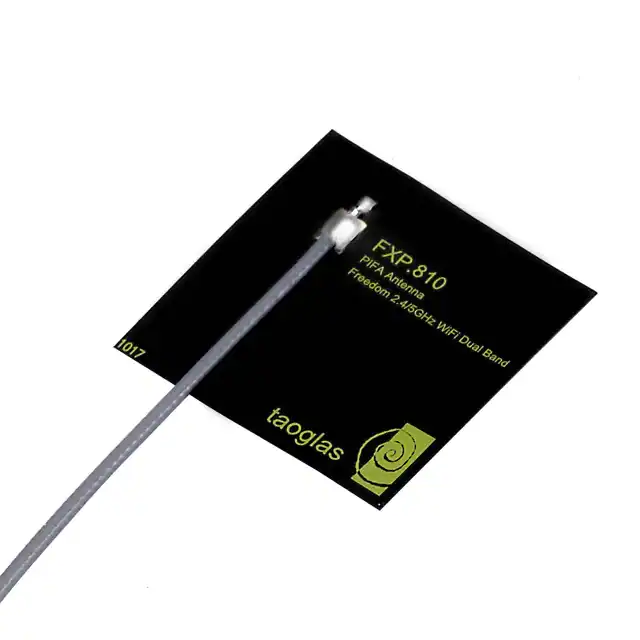

FXP810.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,766 | - |
|
Datasheet | Freedom | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|

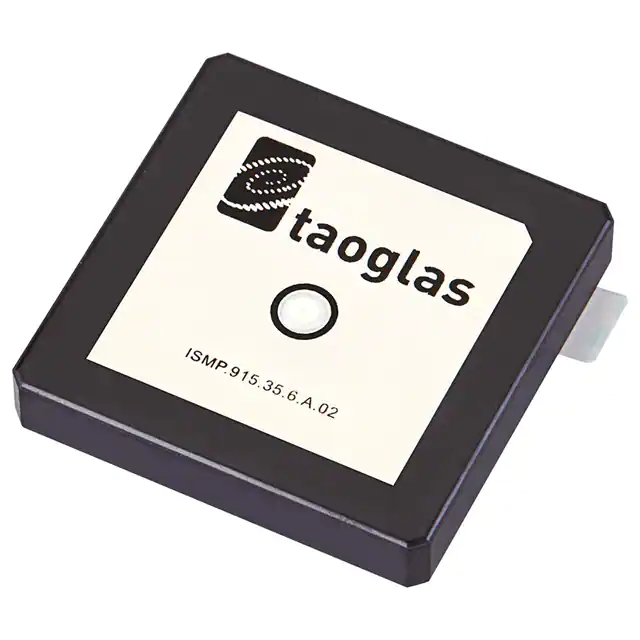

ISMP.915.35.6.A.02ISM 915MHZ PATCH ANTENNA (35*35* |
1,399 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -10dB | 2.51dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
|

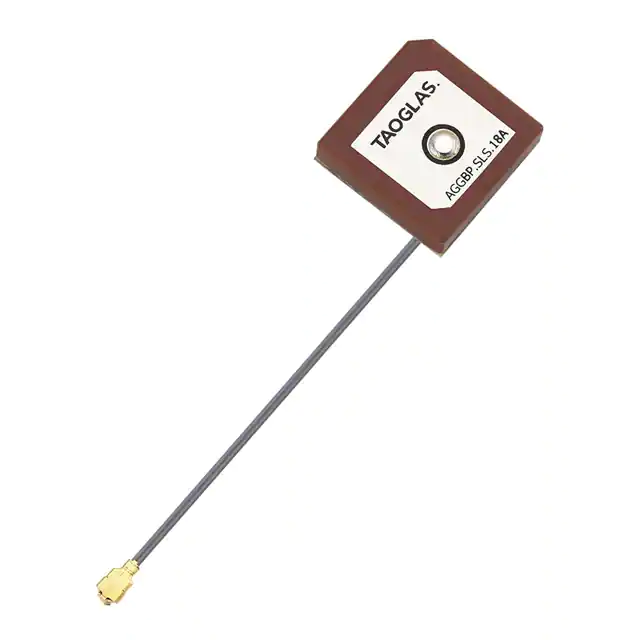

AGGBP.SLS.18A.07.0060A5.9GHZ DSRC / C-V2X PATCH ANTENN |
2,729 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
