RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SXP.22.4.A.021100 1000 1360MM+L3:W3 |
2,301 | - |
|
Datasheet | - | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 9dBic, 9.6dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|

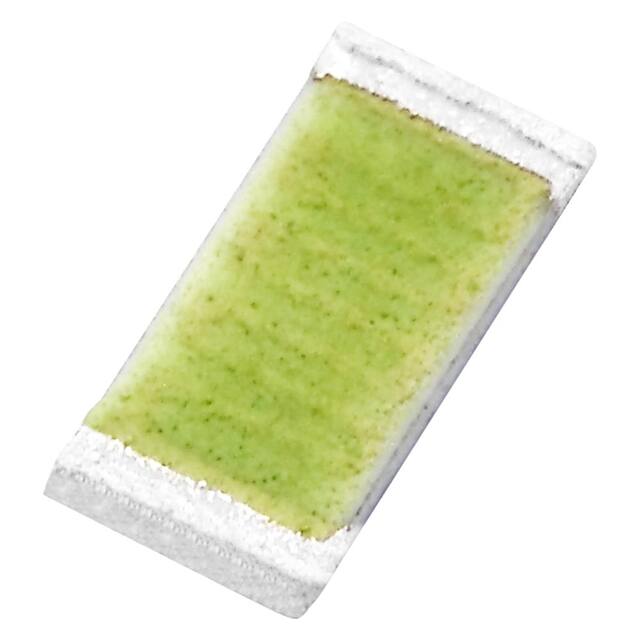

CA.50RF ANT 5.5GHZ CHIP SOLDER SMD |
3,179 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.9GHz | Chip | 1 | 2 | -17dB | 3.4dBi | 50 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | WLAN |
|

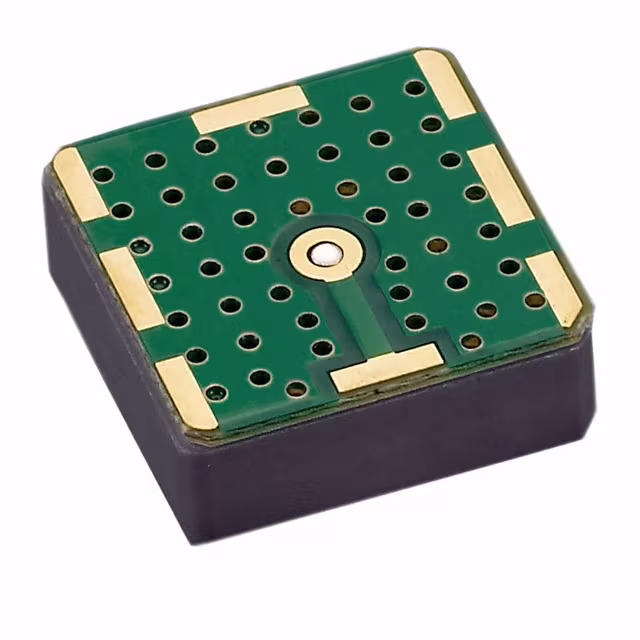

SGP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH SLD |
3,577 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | - | -1dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
PC11.09.0100ARF ANT 2.4GHZ/5.2GHZ FLAT PATCH |
3,351 | - |
|
Datasheet | TheStripe™ | Bag | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.2GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | - | - | 3dBi, 4.5dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

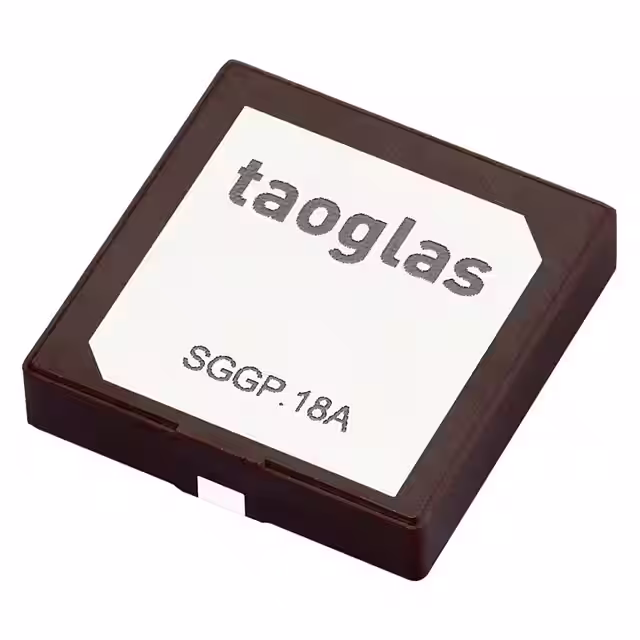

SGGP.18.4.A.02RF ANT 1.6GHZ CER PATCH SLDR SMD |
4,986 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 2 | 2 | - | 0.26dBic, 1.25dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|

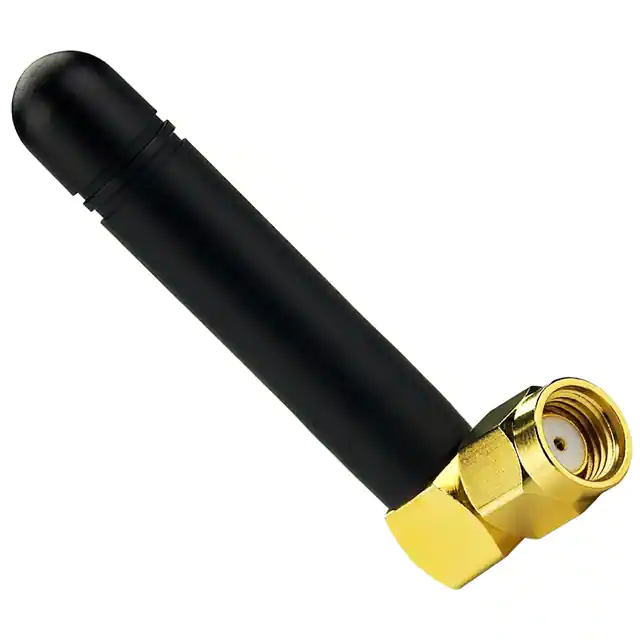

TG.22.0152TG.22 3G/2G CELLULAR CONNECTOR M |
4,918 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, DCS, EDGE, GPRS, HSPA, PCS, UMTS |
|

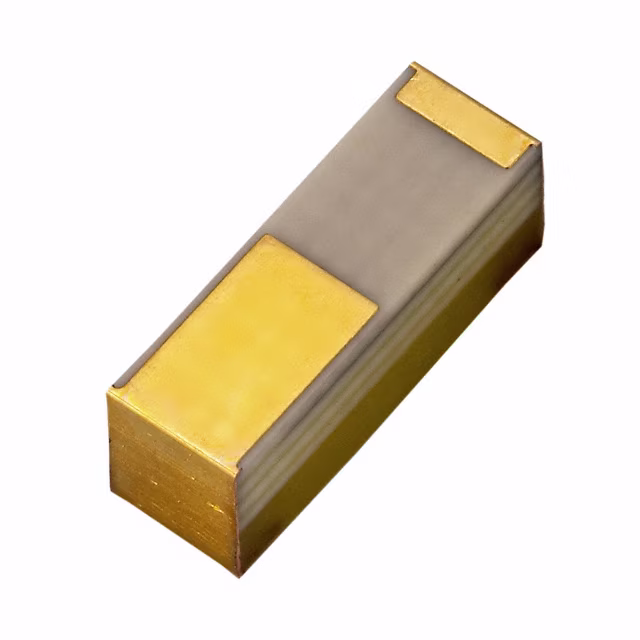

GLA.02RF ANT 1.575GHZ CHIP SOLDER SMD |
3,628 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 2 | -31dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|

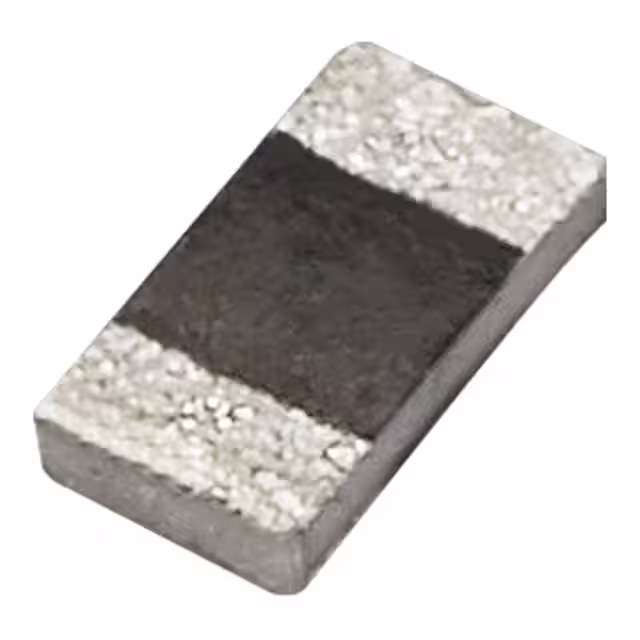

CA.51DSRC 5900MHZ CERAMIC SUBSTRATE C |
2,403 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | SHF (f > 4GHz) | 5.888GHz | 5.85GHz ~ 5.925GHz | Chip | 1 | 2 | - | 2.87dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | DSRC, V2V |
|
|
GW.82.5153RF ANT 5.5GHZ WHIP TILT RP-SMA |
2,019 | - |
|
Datasheet | - | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | - | - | 5.64dBi, 6.53dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | Wi-Fi |
|

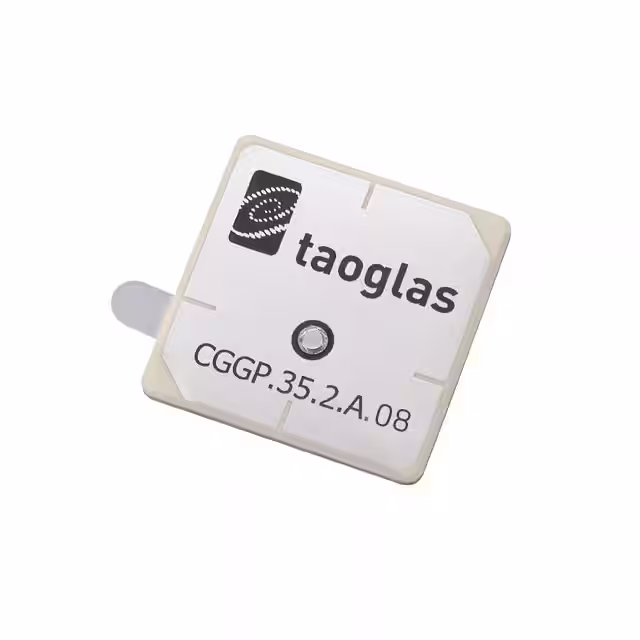

CGGP.35.2.A.08RF ANT 1.575/1.602GHZ CER PATCH |
1,751 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | 4.27dBi, 4.63dBi | - | - | Pin | - | - | - | Through Hole | 0.079" (2.00mm) | Galileo, GLONASS, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
