RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

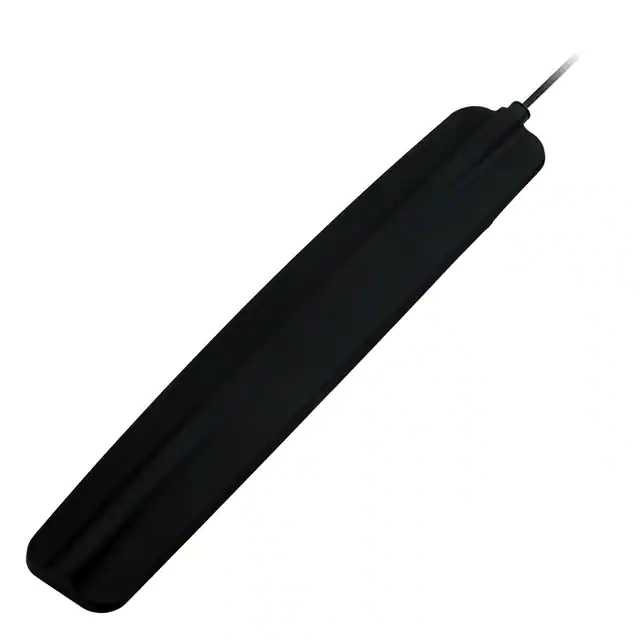

ISA.06.A.301111RF ANT 440MHZ FLAT BAR SMA MALE |
3,885 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 440MHz | 410MHz ~ 470MHz | Flat Bar | 1 | - | -15dB | 2dBi | - | - | SMA Male | IP67 | - | - | Adhesive | 0.433" (11.00mm) | CDMA |
|

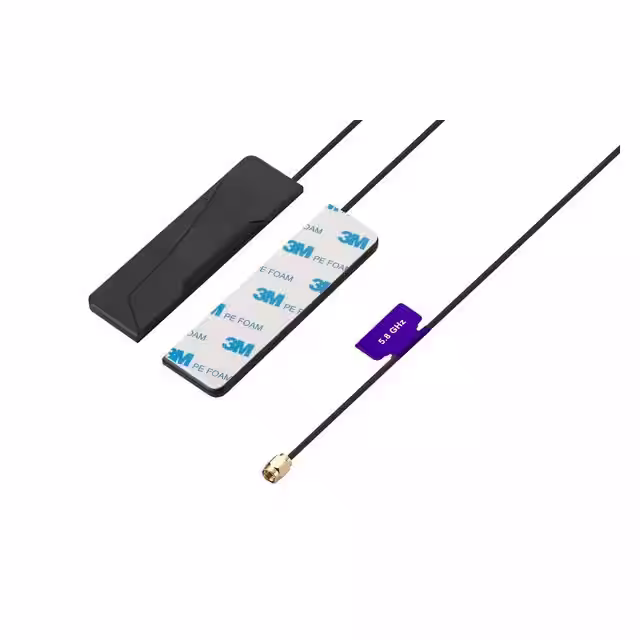

WSA.5800.A.101151RF ANT 5.8GHZ FLAT BAR RP-SMA ML |
4,506 | - |
|
Datasheet | Phoenix | Bag | Obsolete | WiFi | SHF (f > 4GHz) | 5.8GHz | 4.9GHz ~ 5.85GHz | Flat Bar | 1 | 2 | -10dB | 4.1dBi | 2 W | - | RP-SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | Wi-Fi, WLAN |
|

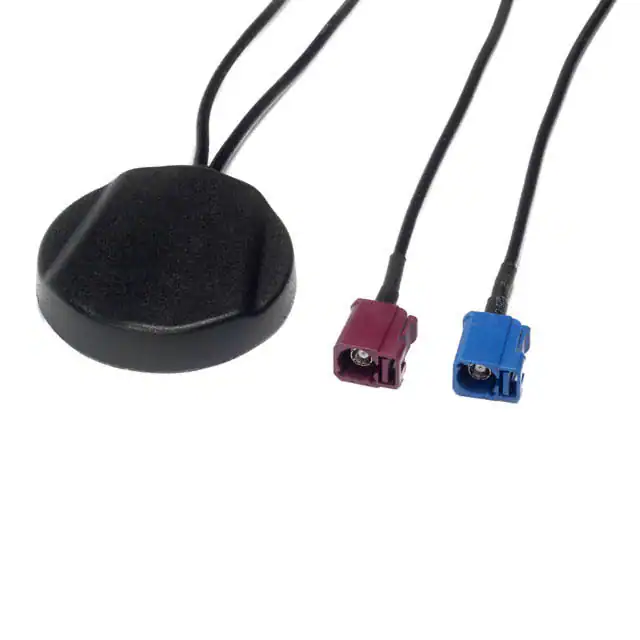

MA203.A.AB.045RF ANT 1.575GHZ MOD SMA MALE ADH |
2,926 | - |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 2 | -15dB | 4dBic | - | LNA | SMA Male | IP67 | - | - | Adhesive | 0.425" (10.80mm) | CDMA, GPS, GSM, UMTS |
|

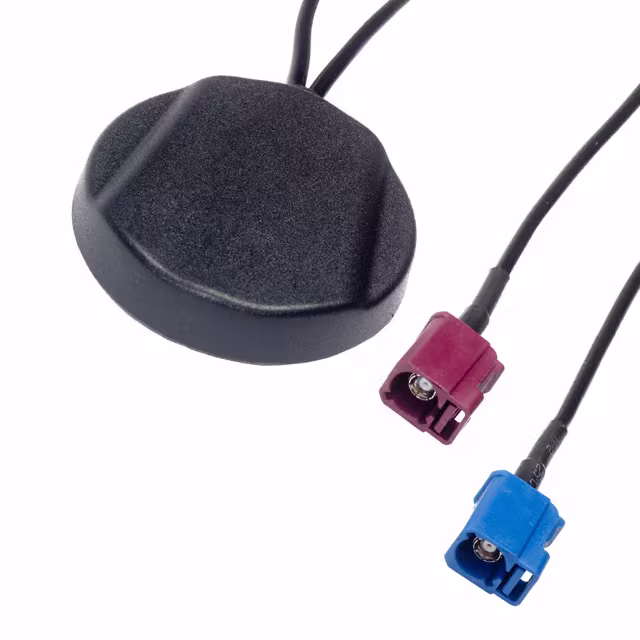

MA.203W.AB.009RF ANT 860MHZ/920MHZ MOD FAKRA |
3,836 | - |
|
Datasheet | Stingray | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 860MHz, 920MHz, 1.8GHz, 1.9GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz | Module | 4 | 1.92 | - | -3dB | - | LNA | SMB, Fakra | IP67 | - | - | Adhesive | 0.630" (16.00mm) | CDMA, GPS, GSM, UMTS |
|

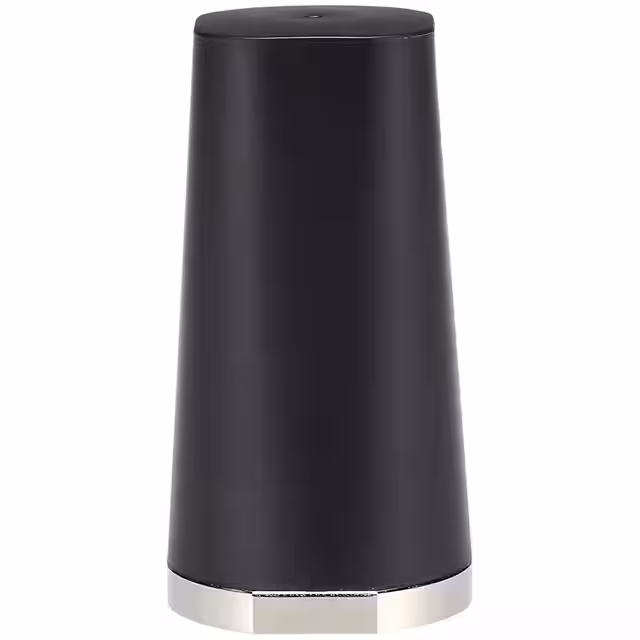

TLS.30.1F11RF ANT 433MHZ WHIP STR N MALE |
3,800 | - |
|
Datasheet | Shockwave | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -15dB | -1.19dBi | 100 W | - | N Type Male | IP67, IP69K | - | - | Base Mount | 3.128" (79.45mm) | ISM |
|

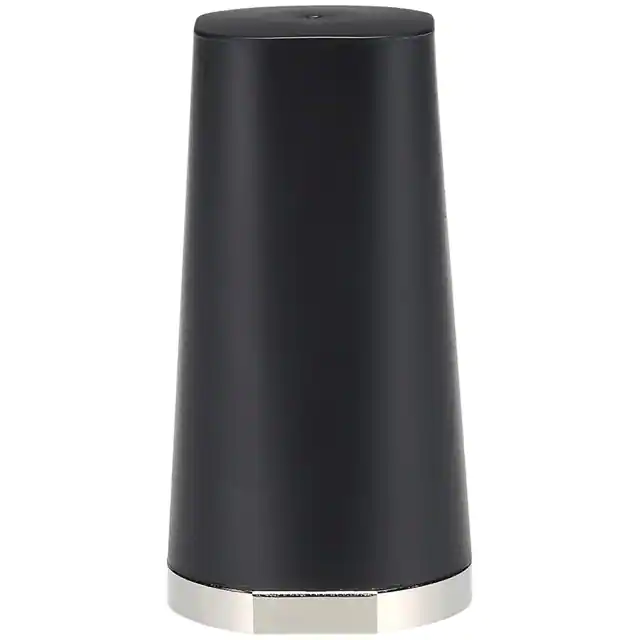

TLS.20.1F11RF ANT 460MHZ WHIP STR N MALE |
3,330 | - |
|
Datasheet | Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -2.2dBi | 100 W | - | N Type Male | IP69K | - | - | Base Mount | 3.134" (79.60mm) | CDMA |
|

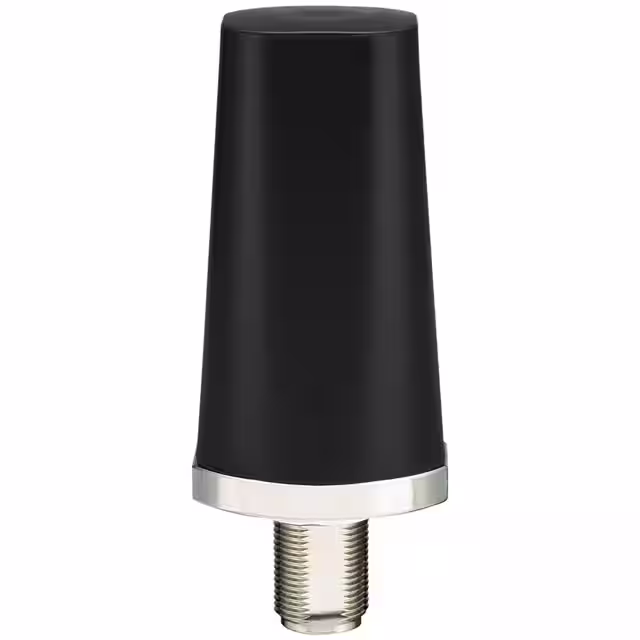

TLS.30.1F21RF ANT 433MHZ WHIP STR N FEM PAN |
1,636 | - |
|
Datasheet | Shockwave | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | -15dB | -1.16dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | ISM |
|
TLS.20.1F21RF ANT 450MHZ WHIP STR N FEM PAN |
1,859 | - |
|
Datasheet | Shockwave | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | - | -3dB | -1.8dBi | 100 W | - | N Type Female | IP67, IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|

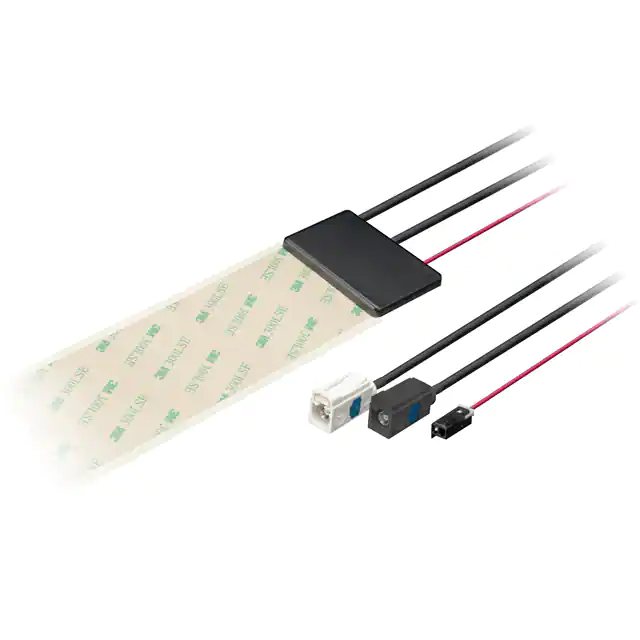

MA2220.A.TT.0022IN1 ADHESIVE MOUNT 300MM RG-174 |
1,687 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 1.07MHz, 98MHz, 207MHz | 535kHz ~ 1.605MHz , 88MHz ~ 108MHz , 174MHz ~ 240MHz | Module | 3 | - | - | - | - | Cable - 300mm | SMB, Fakra | IP41 | - | - | Adhesive | 0.283" (7.20mm) | General Purpose |
|

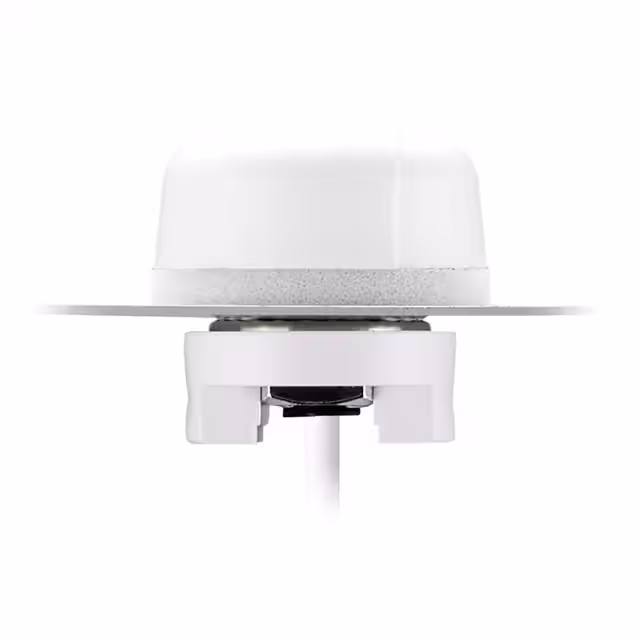

G21.B.W.301111RF ANT 850MHZ/900MHZ DOME PNL MT |
4,876 | - |
|
Datasheet | Hercules | Bag | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 5 | 3.5 | -11dB, -12.4dB, -17.5dB, -18.3dB, -18.1dB | 1dBi, 1dBi, -0.9dBi, -1.1dBi, -1.1dBi | 10 W | Cable - 3m | SMA Male | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | CDMA, EVDO, GPRS, GSM, HSPA, UMTS, WCDMA |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
