RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

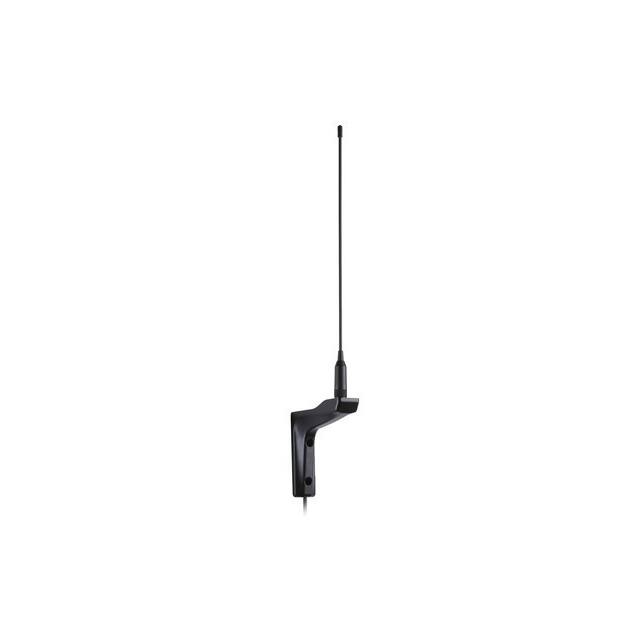

WM.80.B.305111RF ANT 169MHZ WHIP STR SMA MALE |
2,520 | - |
|
Datasheet | Cyclops | Box | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Bracket Mount | 10.945" (278.00mm) | - |
|

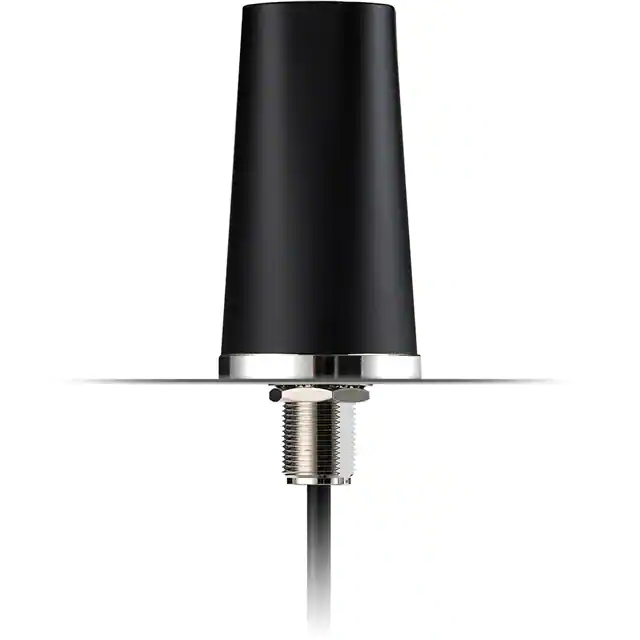

TLS.20.105111RF ANT 460MHZ DOME SMA MALE PAN |
3,378 | - |
|
Datasheet | Shockwave | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | -5dB | -0.7dB | 100 W | - | SMA Male | IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|
MA111.W.C.LB.001RF ANT 850MHZ/900MHZ DOME PNL MT |
1,741 | - |
|
Datasheet | Ultima | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 2.5, 2, 2, 3.5, 3, 3 | - | 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 0.772" (19.60mm) | CDMA, GLONASS, GPS, GSM, UMTS |
|

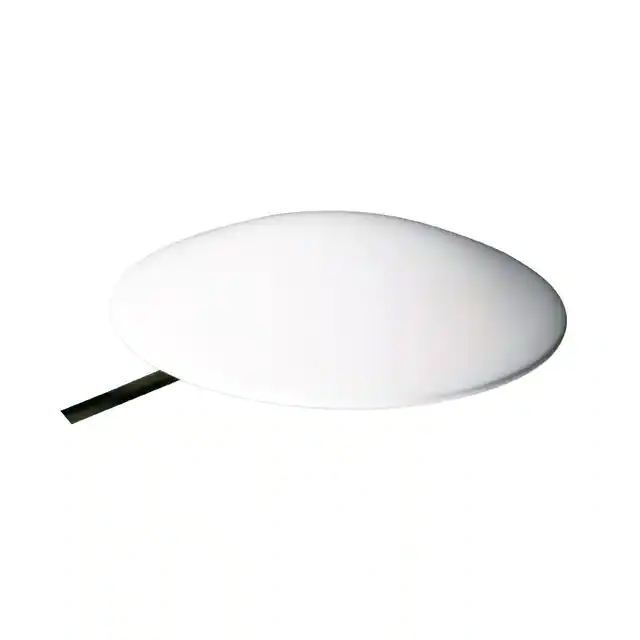

RI.02.01.3000WRF ANT 915MHZ DOME SMB MALE ADH |
3,979 | - |
|
Datasheet | - | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | -18dB | 3.2dBi | 10 W | - | SMB Male | IP67 | - | - | Adhesive | 0.693" (17.60mm) | - |
|

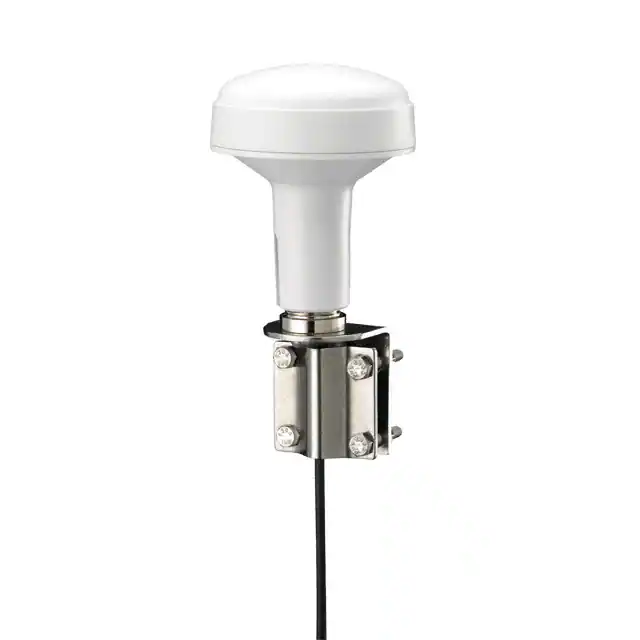

IMA.01.306111RF ANT 1.6GHZ DOME SMA ML BRK MT |
3,775 | - |
|
Datasheet | - | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 1.5 | - | - | - | Cable - 3m | SMA Male | - | - | - | Bracket Mount | 4.252" (108.00mm) | Iridium™ |
|
TLS.01.305721RF ANT 829MHZ/1.575GHZ WHIP STR |
2,152 | - |
|
Datasheet | Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.6dB | 100 W | - | SMA Male | IP69K | - | - | Panel Mount | 3.134" (79.60mm) | GPS, LTE |
|

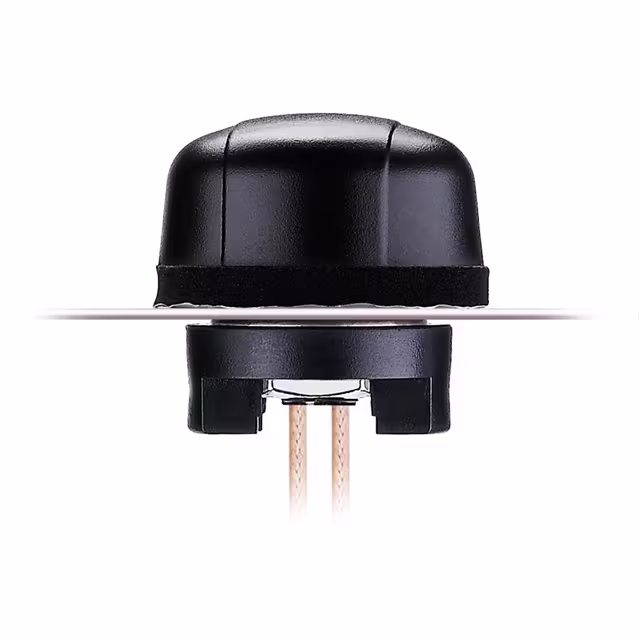

MA120.A.QP.001RF ANT 450MHZ/868MHZ DOME PNL MT |
1,875 | - |
|
Datasheet | Hercules | Bag | Active | - | UHF (300MHz ~ 1GHz) | 450MHz, 868MHz | - | Dome | 2 | - | -10dB | 3.91dBi, 1.11dBi | 5 W | Cable - 1m | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | - |
|

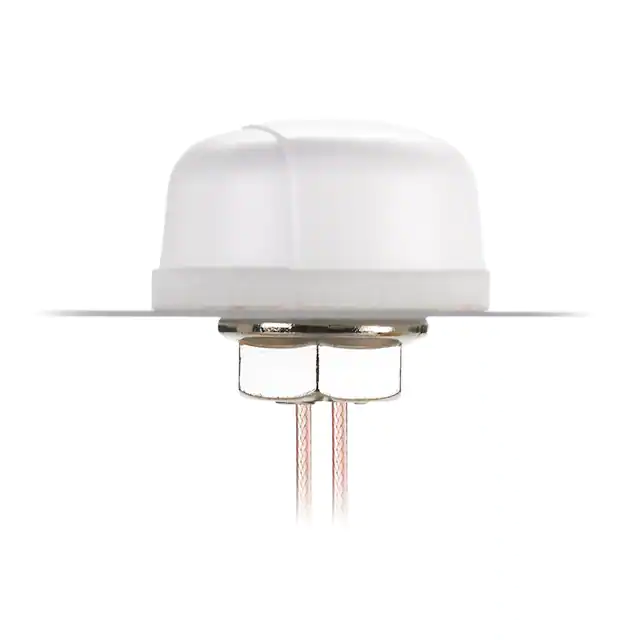

MA510.C.W.CG.002RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA |
2,910 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz | 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz | Dome | 2 | 2 | -10dB | 3.9dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.150" (29.20mm) | Bluetooth, WLAN, Zigbee™ |
|

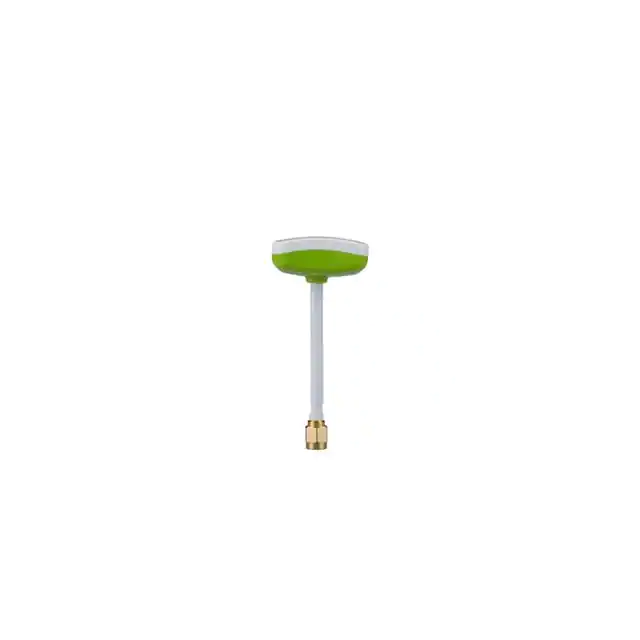

WCM.10.005QQ1115.8GHZ 3DBI SMA(M) CONNECTOR MOU |
4,435 | - |
|
Datasheet | - | Box | Obsolete | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Module | 1 | - | -10dB, -15dB | 3.8dBi, 3.2dBi | - | Cable - 50mm | RP-SMA Male | IP67 | - | - | Connector Mount | 0.669" (17.00mm) | General Purpose |
|

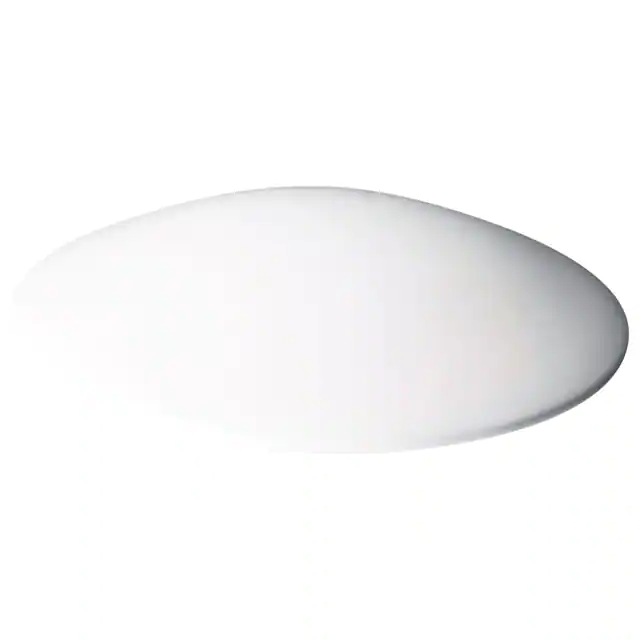

RG.02.02.3000WRF ANT 892MHZ/1.85GHZ DOME SMB |
1,832 | - |
|
Datasheet | - | Box | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 2 | - | -18dB | 2.5dBi | 10 W | - | SMB Male | IP67 | - | - | Adhesive | 0.693" (17.60mm) | GSM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
