RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

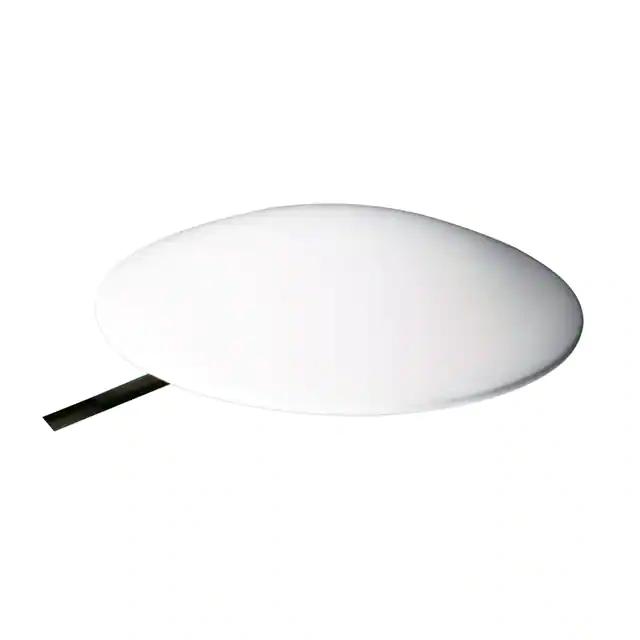

RI.02.02.3000WRF ANT 915MHZ DOME SMB MALE ADH |
4,265 | - |
|
Datasheet | - | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | -18dB | 6.2dBi | 10 W | - | SMB Male | IP67 | - | - | Adhesive | 0.693" (17.60mm) | - |
|

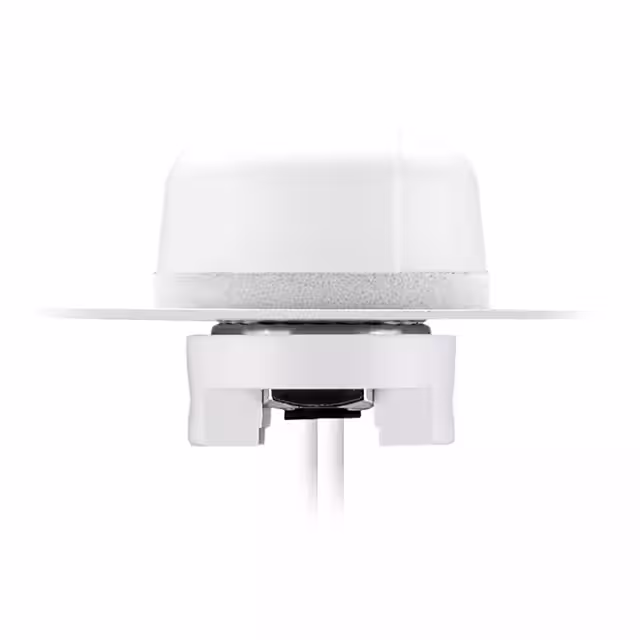

MA104.C.W.AB.002RF ANT 892MHZ/1.9GHZ DOME SMA ML |
1,436 | - |
|
Datasheet | Hercules | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Dome | 2 | 3.5 | -14dB, -25dB | 5dBi, 4dBi | 10 W | LNA, Filter | SMA Male | IP69K | - | - | Panel Mount | 1.122" (28.50mm) | GPS, GSM |
|

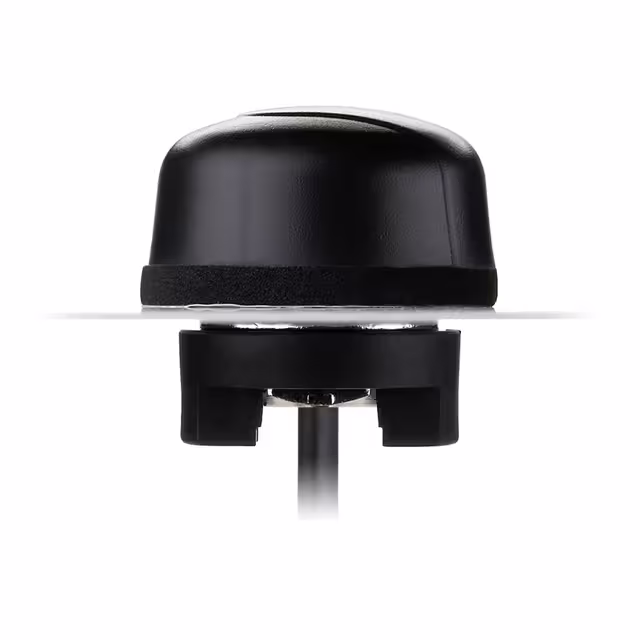

A.03.C.1001111RF ANT 1.575GHZ DOME SMA MALE |
1,492 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Dome | 1 | 2 | - | 41.5dBic | - | LNA | SMA Male | IP69X | - | - | Panel Mount | 1.138" (28.90mm) | GPS |
|

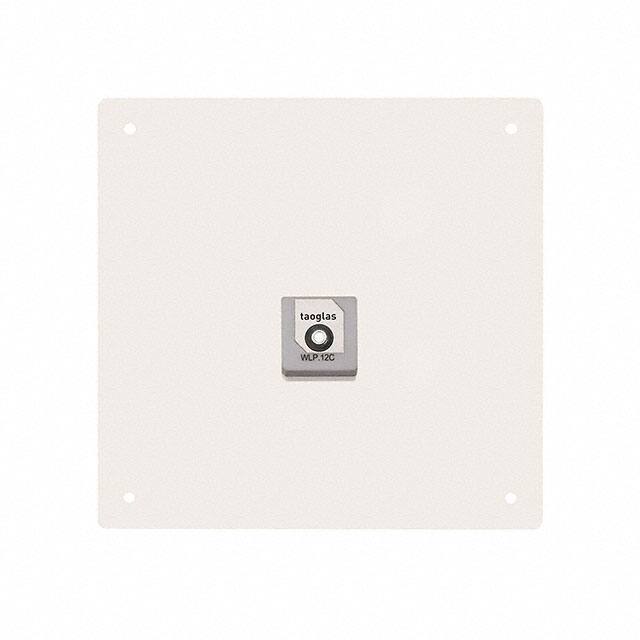

WLPD.4958.12.4.A.02RF ANT 5.18GHZ CER PATCH PIN ADH |
3,005 | - |
|
Datasheet | - | Bag | Active | 802.15.4, WiFi | SHF (f > 4GHz) | 5.18GHz | 4.9GHz ~ 5.825GHz | Ceramic Patch | 1 | 1.5 | -10dB | 6dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | Wi-Fi, Zigbee™ |
|

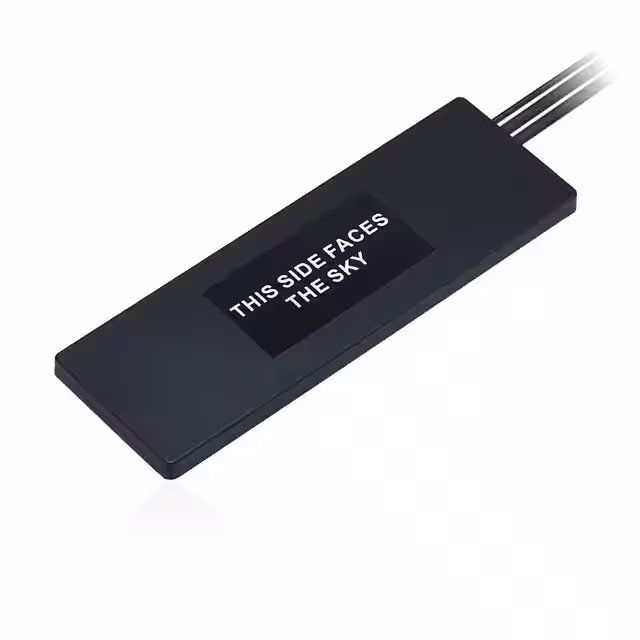

MA230.LBC.002RF ANT 700/892MHZ FLAT BAR SMA |
3,565 | - |
|
Datasheet | Stream | Bag | Active | Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 700MHz, 892MHz, 2GHz | 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz | Flat Bar | 3 | 3.3, 3.6 | -18dB | 2.16dBi, 0.42dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Adhesive | 0.354" (9.00mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|

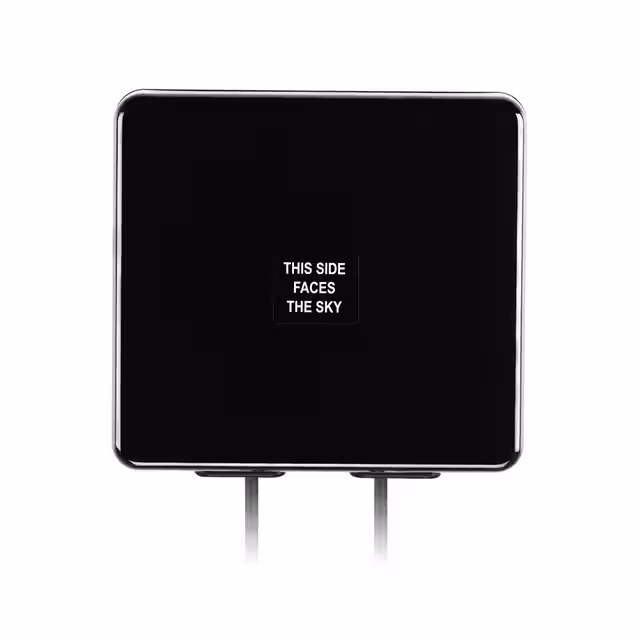

MA910.A.CG.001GUARDIAN MA910.A.CG.001 2IN1 ADH |
4,436 | - |
|
Datasheet | Guardian | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Module | 2 | 3 | - | 3.15dBi, 3.14dBi | - | Cable - 3m | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Wi-Fi |
|

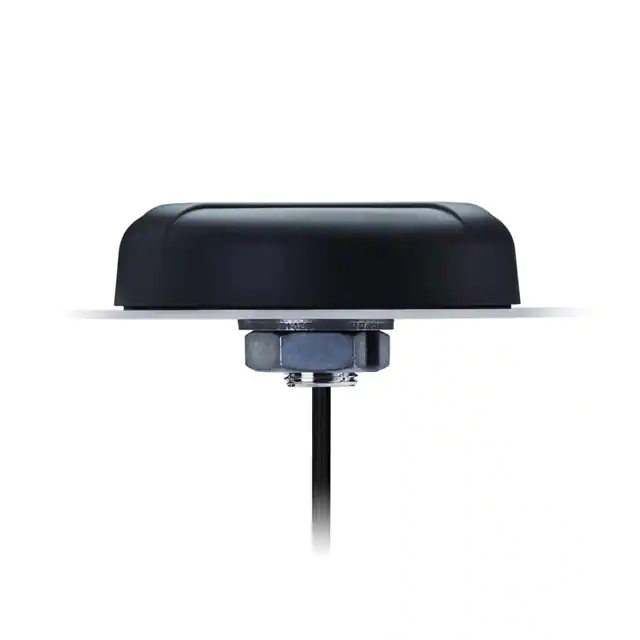

A.90.A.101111BOLT A.90 GPS / GLONASS / GALILE |
4,367 | - |
|
Datasheet | - | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Dome | 2 | 2 | -10dB | 3.59dBi, 4.05dBi | - | Cable - 1m, LNA | SMA Male | IP67 | - | - | Panel Mount | 1.000" (25.40mm) | GLONASS, GNSS, GPS |
|

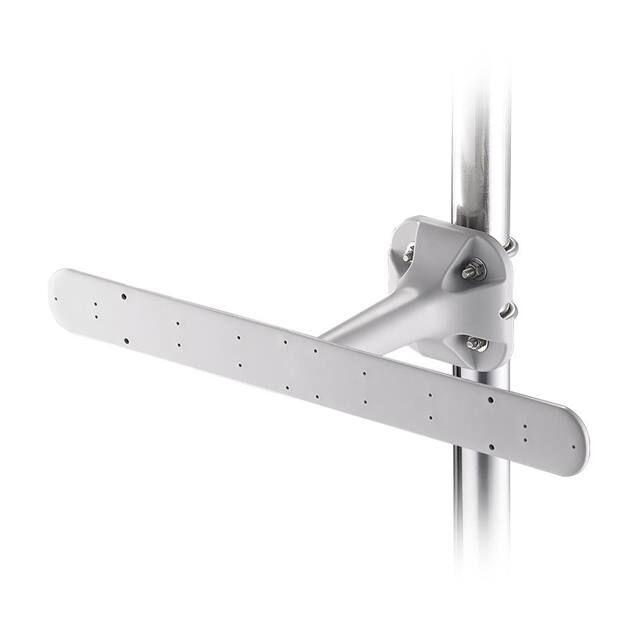

LWB02.A.505111LWB02.A.505111 EXTERNAL 4G LTE W |
4,539 | - |
|
Datasheet | - | Box | Active | Cellular, General ISM | Wide Band | 752MHz, 859MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 7 | - | - | 2.11dBi, 2.47dBi, 2.67dBi, 4.29dBi, 4.28dBi, 5.08dBi, 2.87dBi | - | Cable - 5m | SMA Male | IP67 | - | - | Bracket Mount | 6.181" (157.00mm) | DCS, GSM, LTE, PCS, UMTS |
|

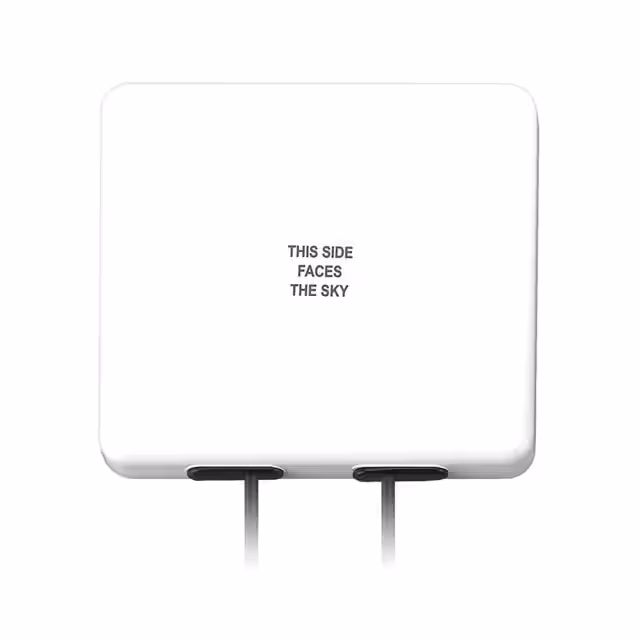

MA910.W.A.CG.001GUARDIAN MA910.W.A.CG.001 2IN1 A |
4,399 | - |
|
Datasheet | Guardian | Box | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.375GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.858GHz | Module | 2 | 3 | - | 3.15dBi, 3.14dBi | - | Cable - 3m | RP-SMA Male | IP67 | - | - | Adhesive | 0.787" (20.00mm) | Wi-Fi |
|

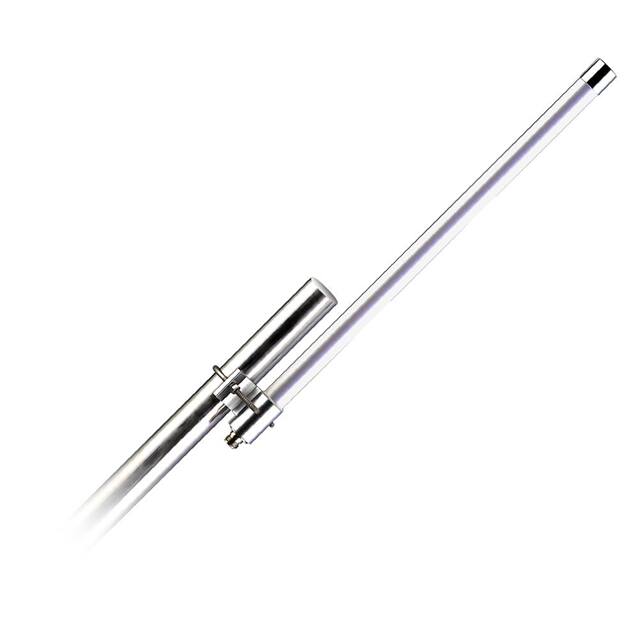

OMB.450.B03F21RF ANT 460MHZ WHIP STR N FEM |
3,396 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 100 W | - | N Type Female | IP65 | - | - | Bracket Mount | 20.591" (523.00mm) | CDMA, LTE |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
