RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

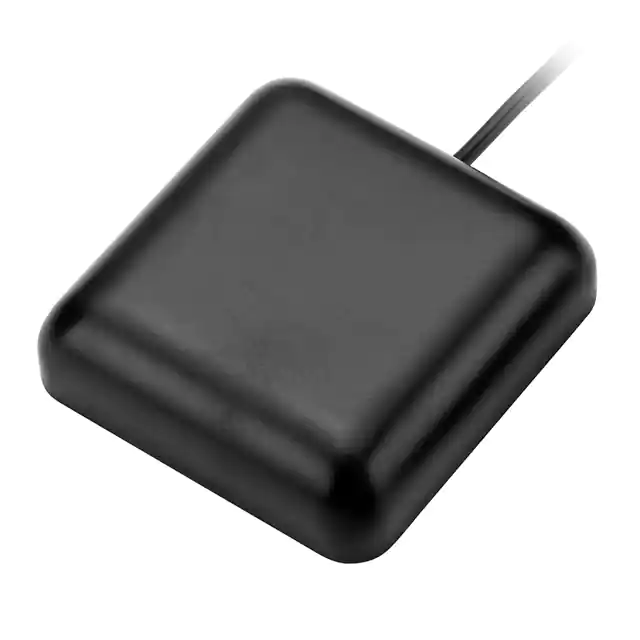

AA.160.301111RF ANT 1.575GHZ/1.602GHZ MODULE |
1,329 | - |
|
Datasheet | - | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.609GHz | Module | 1 | 1.5 | - | 4dBic | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.689" (17.50mm) | GLONASS, GPS |
|

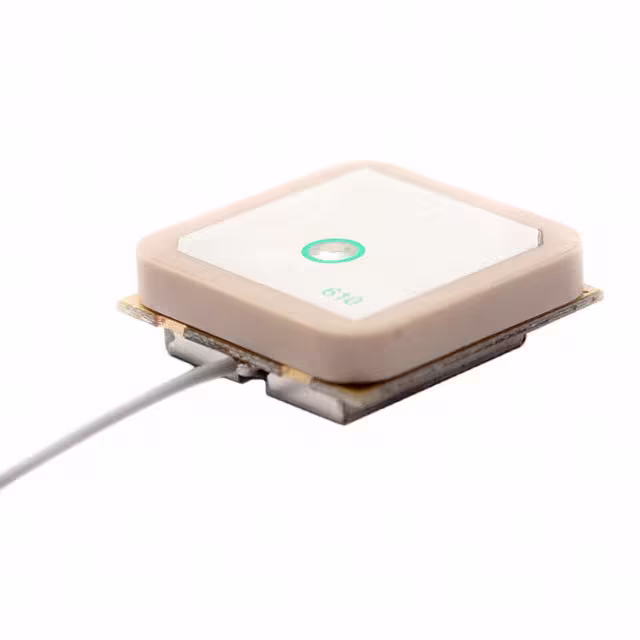

AP.25C.07.0080ARF ANT 1.575GHZ CER PATCH CAB |
3,213 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 2dBic | - | Cable - 80mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.327" (8.30mm) | GPS |
|

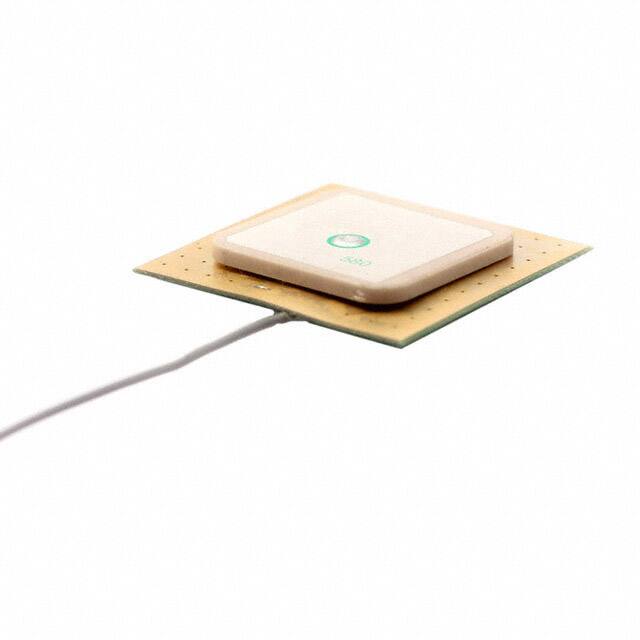

AP.25B.07.0052ARF ANT 1.575GHZ CER PATCH IPEX |
3,080 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

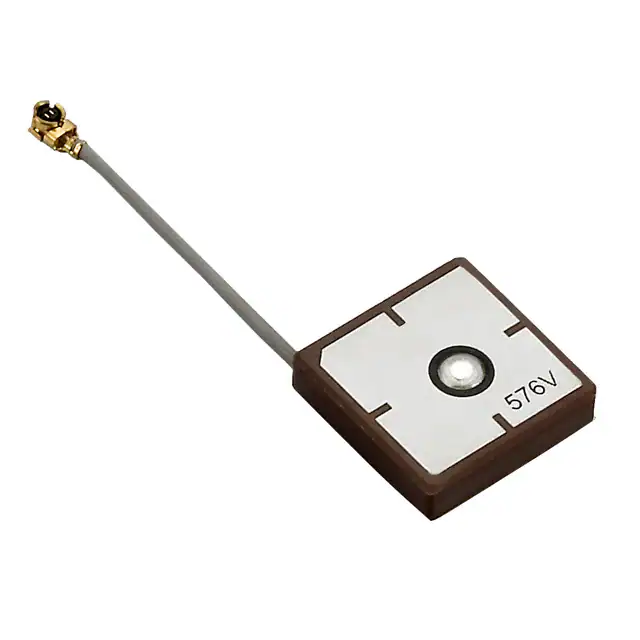

AP.17A.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
4,760 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.248" (6.30mm) | GPS |
|

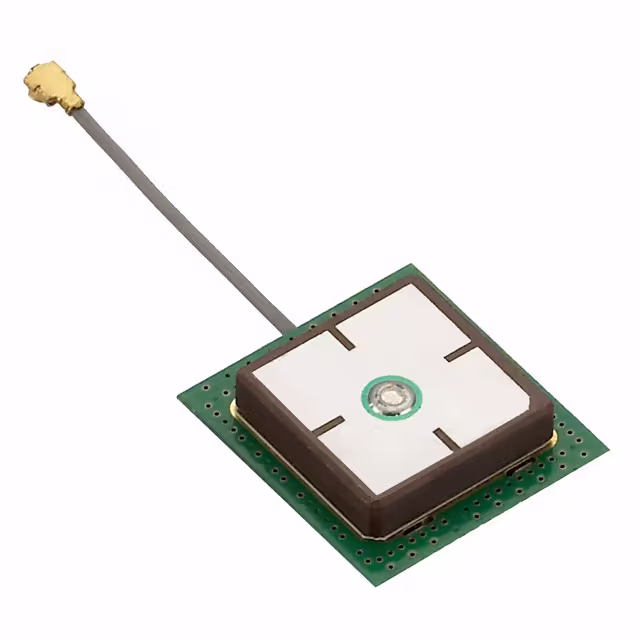

AP.17B.07.0040ARF ANT 1.575GHZ CER PATCH IPEX |
1,560 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.307" (7.80mm) | GPS |
|

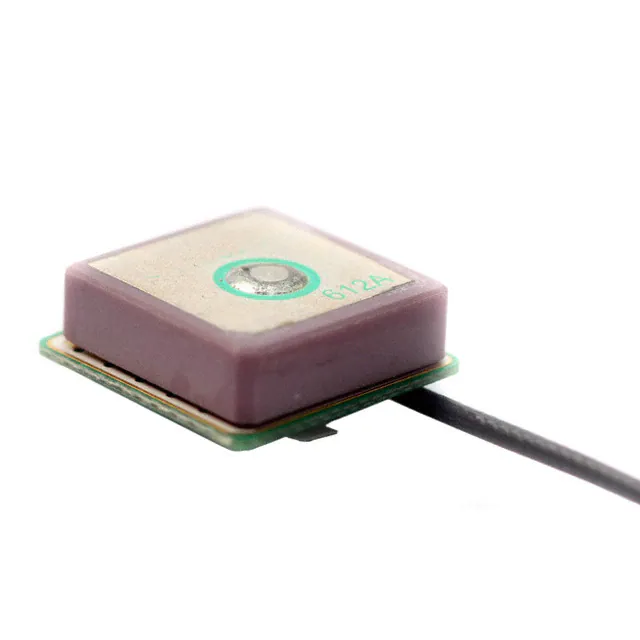

AP.12B.07.0057ARF ANT 1.575GHZ CER PATCH CAB |
4,521 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 2 | - | 1.5dBic | - | Cable - 46mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.236" (6.00mm) | GPS |
|

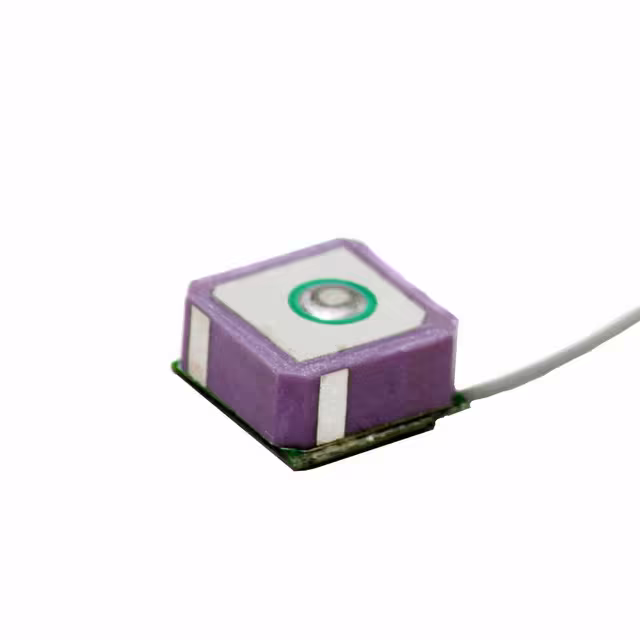

AP.10A.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
4,926 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

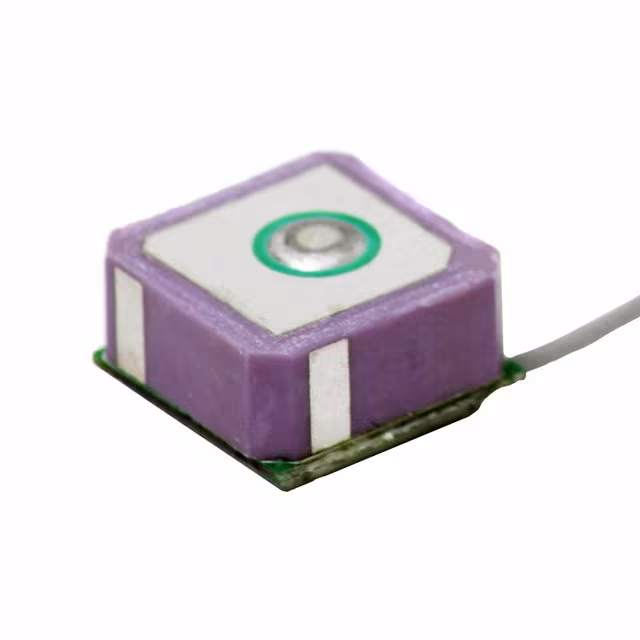

AP.10B.07.0050BRF ANT 1.575GHZ CER PATCH IPEX |
2,067 | - |
|
Datasheet | - | Tray | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -3dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|

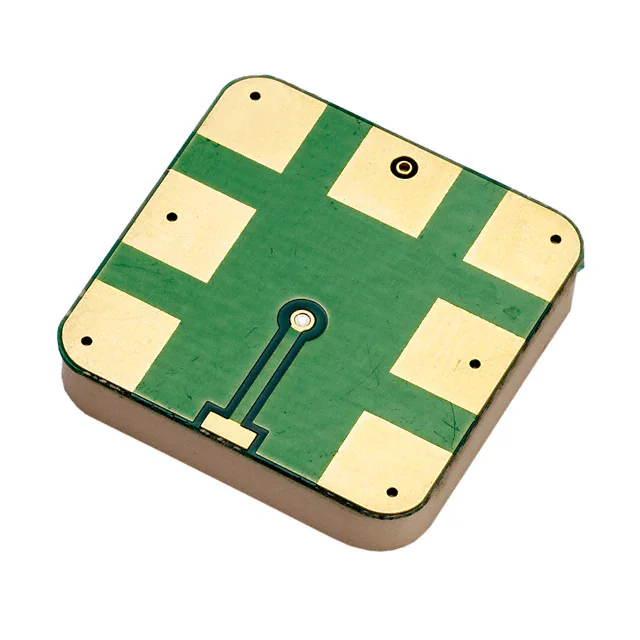

SGP.1575.25.4.C.02RF ANT 1.575GHZ CER PATCH SLD |
2,557 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.571GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|

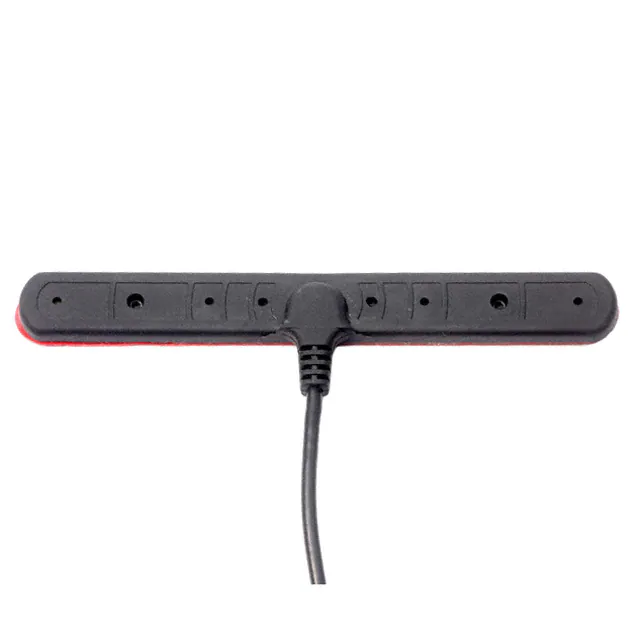

GSA.8822.A.301111RF ANT 850MHZ/900MHZ FLAT BAR |
1,584 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 5 | 2 | - | 3dBi | 10 W | Cable - 3m | SMA Male | IP67 | - | - | Adhesive | 0.256" (6.50mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
