RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

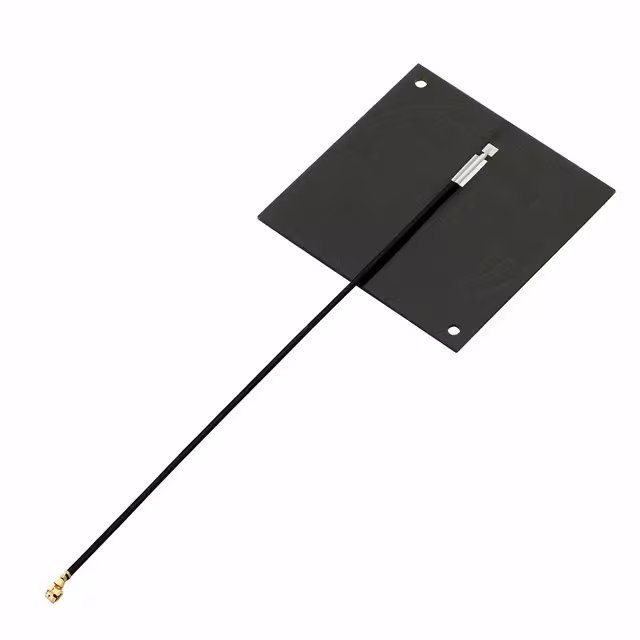

PC24.07.0100ARF ANT 850MHZ/900MHZ FLAT PATCH |
3,250 | - |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 4 | 2 | -12dB, -25dB, -12dB, -10dB | 0dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Chassis Mount | 0.031" (0.80mm) | AMPS, DCS, GSM, PCS |
|

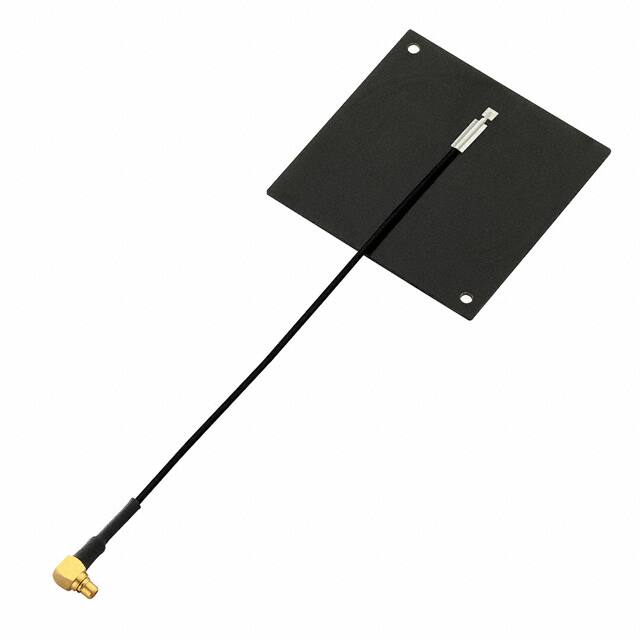

PC24.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH |
2,501 | - |
|
Datasheet | TheStripe™ | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|

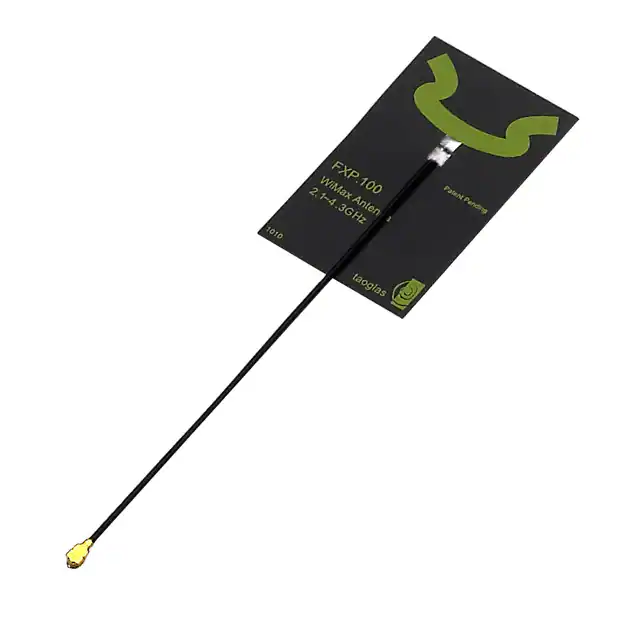

FXP100.07.0100ARF ANT 2.3GHZ/2.5GHZ FLAT PATCH |
1,752 | - |
|
Datasheet | - | Bag | Obsolete | WiFi | Wide Band | 2.3GHz, 2.5GHz, 3.5GHz | 2.1GHz ~ 4.32GHz | Flat Patch | 1 | 2 | - | 3.2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | WiMax™ |
|

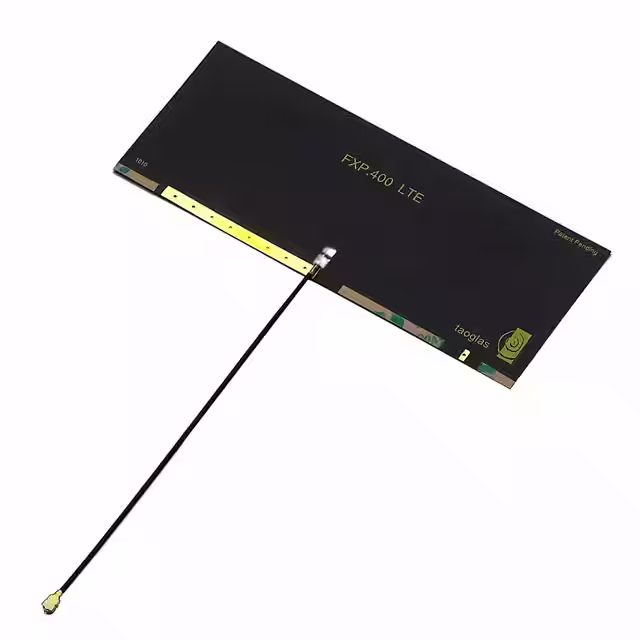

FXP400.07.0100ARF ANT 815MHZ/2.4GHZ FLAT PATCH |
4,260 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), SHF (f > 4GHz) | 815MHz, 2.4GHz | 690MHz ~ 940MHz, 1.72GHz ~ 3.13GHz | Flat Patch | 2 | 2 | -6dB | 4dBi | 10 W | Cable - 85mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|

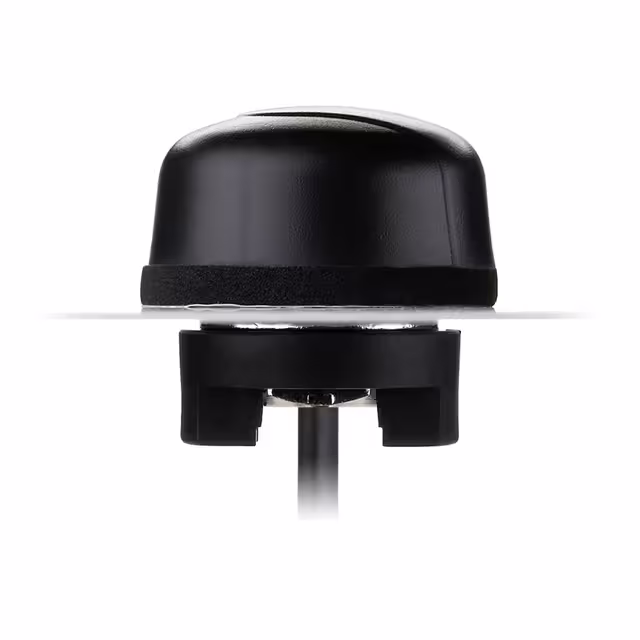

WS.01.B.305151RF ANT 3.8GHZ DOME RP-SMA MALE |
3,045 | - |
|
Datasheet | Hercules | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | Wide Band | 3.8GHz | 2.4GHz ~ 5.2GHz | Dome | 1 | 1.6 | -15dB | - | - | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.142" (29.00mm) | Bluetooth, WLAN, Zigbee™ |
|

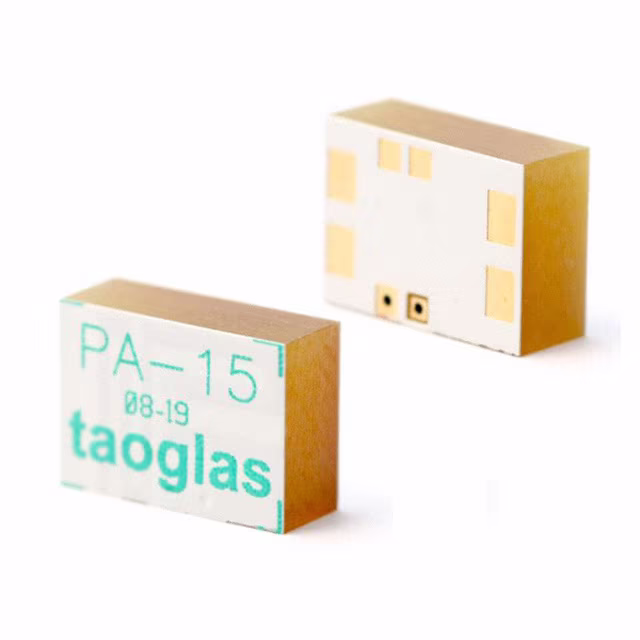

PA.15RF ANT 2.4GHZ CHIP SOLDER SMD |
1,445 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -21dB | -3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, 802.11a/b/g |
|

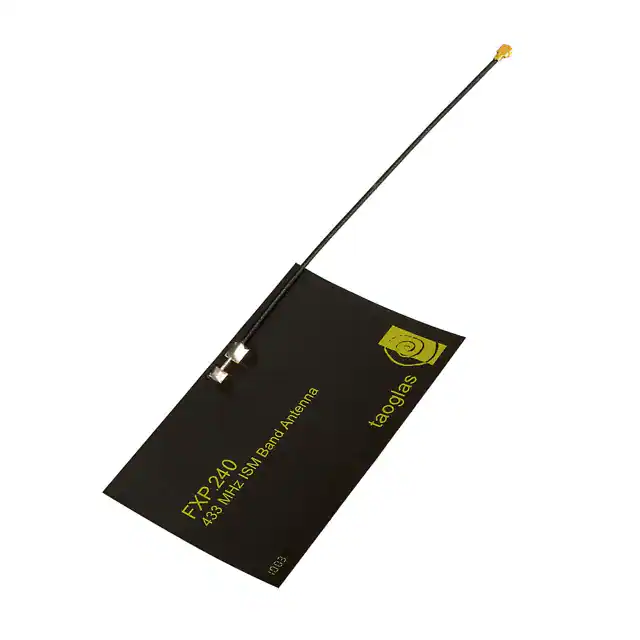

FXP240.07.0100ARF ANT 434MHZ FLAT PATCH MHFII |
1,090 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 434MHz | 433MHz ~ 435MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

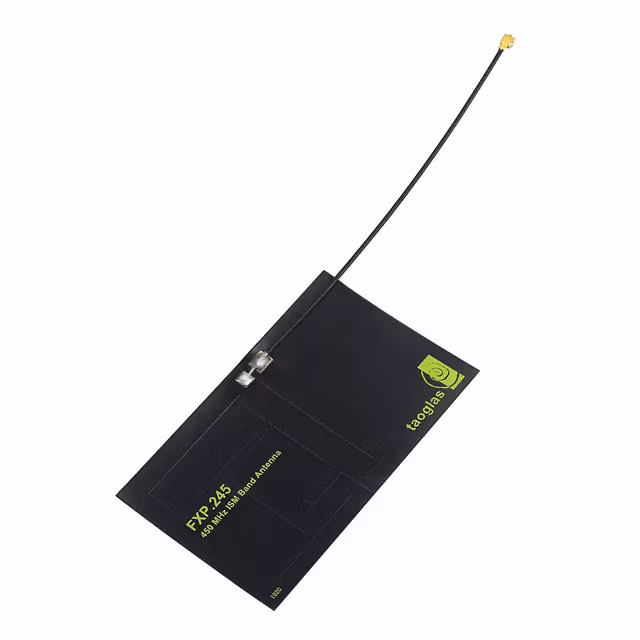

FXP245.07.0100ARF ANT 450MHZ FLAT PATCH CAB ADH |
4,114 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 450MHz | 450MHz ~ 457MHz | Flat Patch | 1 | 2 | -20dB | 0dBi | 5 W | Cable - 100mm | I-PEX MHF2 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

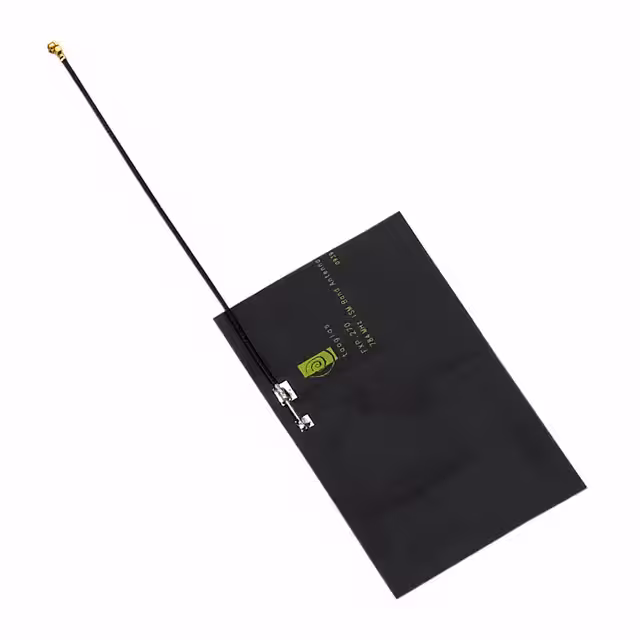

FXP270.07.0100ARF ANT 783MHZ FLAT PATCH MHFII |
4,301 | - |
|
Datasheet | - | Bag | Obsolete | - | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Flat Patch | 1 | 2 | -20dB | 1.4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|

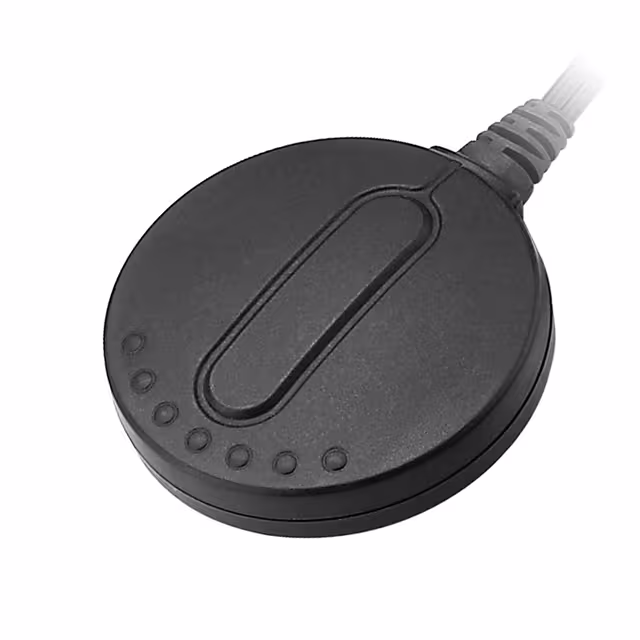

MA301.A.AB.001RF ANT 1.4GHZ MODULE SMA ML ADH |
4,162 | - |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 1.4GHz | 824MHz ~ 1.99GHz | Module | 1 | 1.92 | - | 28dBic | - | LNA | SMA Male | IP65 | - | - | Adhesive | 0.681" (17.30mm) | CDMA, GPS, GSM, UMTS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
